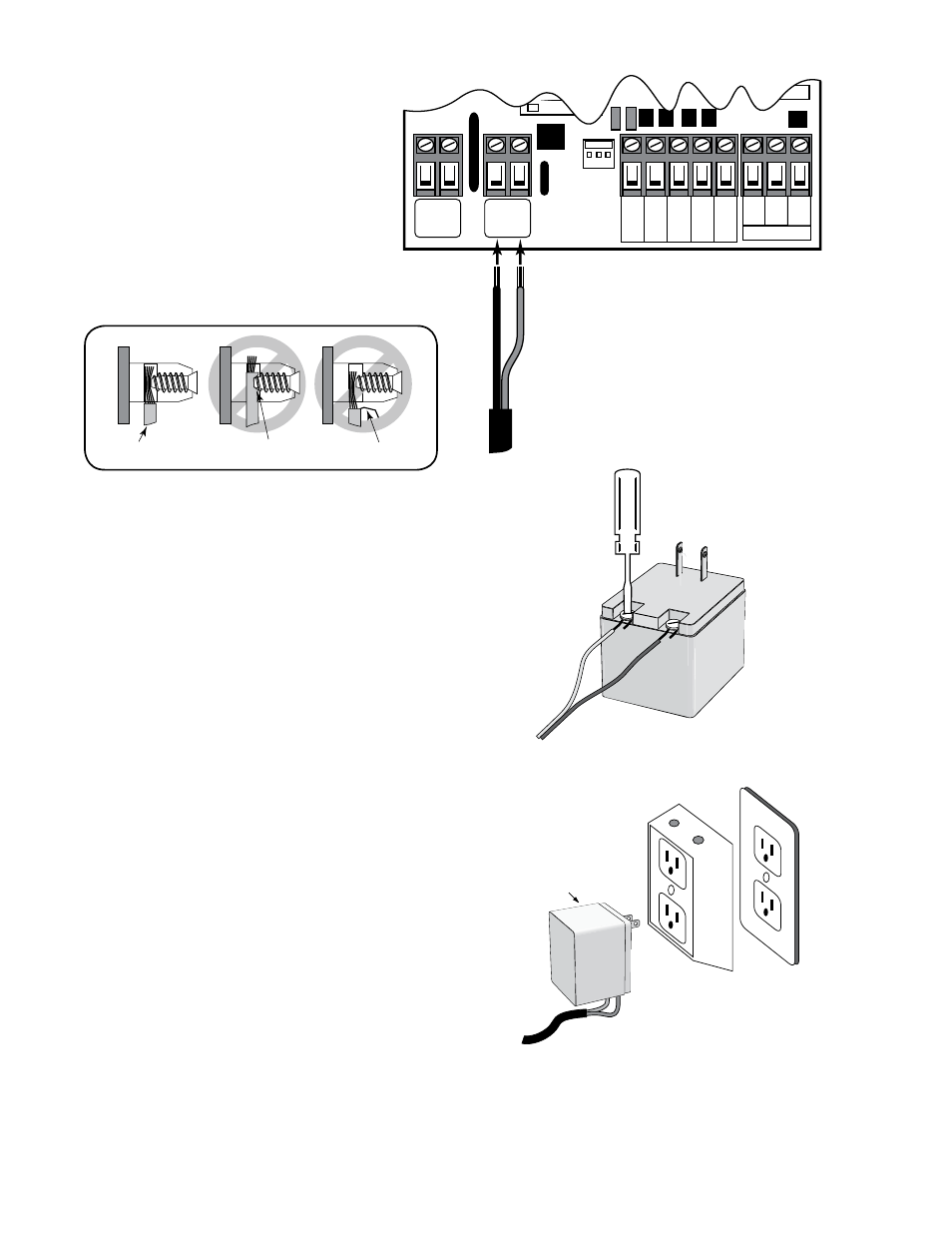

Step 9

Plug the transformer into the electrical outlet. Use of a surge

protector with the transformer is

strongly recommended. If

electrical outlet is located outdoors, outlet and transformer

should be protected by a weatherproof cover.

Step 8

At the AC outlet strip 1/2" of insulation from the ends

of the low voltage wire. Attach these stripped ends to

the transformer terminals.

Make sure the exposed wires do not

touch each other!

SURGE PROTECTOR

Transformer

Step 7

Strip

3

/

16

" off the ends of the low

voltage wire and twist tightly. Insert
these ends to the

18 VAC terminal

block located on the control board (see
illustration at right
). The wires can be
inserted into either terminal regardless
of color.

Be certain not to let the

exposed wires touch each other!

Tighten set screws against exposed end
of wires.

1

ON

23

4

15

CHARGING
POWER

STATUS

RF

PULL-PUSH
MODE1
MODE2
LOCK/BEACON

OFF

120

MIN

MAX

STALL FORCE

CLOSE TIME

SET

LIMIT

LEARN

REMOTE

AUX

OUT

SOLAR

INPUT

18VAC/

RCVR

GRN

BLK

RED

EXIT

SAFETY

EDGE

CY

CLE

COMMON

LINK

Low Voltage Wire
from Transformer

H L

Correct

Wrong

Wrong

Wire

Screwed into

wire insulation

Exposed strands

of wire
