Important: detailed wire routing diagrams – Mighty Mule FM350 User Manual
Page 24

20
rev 07.16.12
ON/OFF
–
o
Battery Harness Wires
Transformer Wires
Receiver Wires
Accessory Wires
Neatly arrange all
wires to lay flat as
they come out of
the opener.
Mighty Mule 350
Wire Routing
Routing Pin
ON/OF
F
ON/OFF
Receiver Wire
Battery Harness Wire
Battery Harness
In-Line 20 Amp Fuse
(included)
Battery Harness
Connectors
0
2
The battery harness wire has an
in-line 20 Amp fuse that must be
placed inside the opener when
connecting the battery to the
opener. The illustration to the
right shows the best placement
for the battery harness wire, con-
nector and in-line fuse.

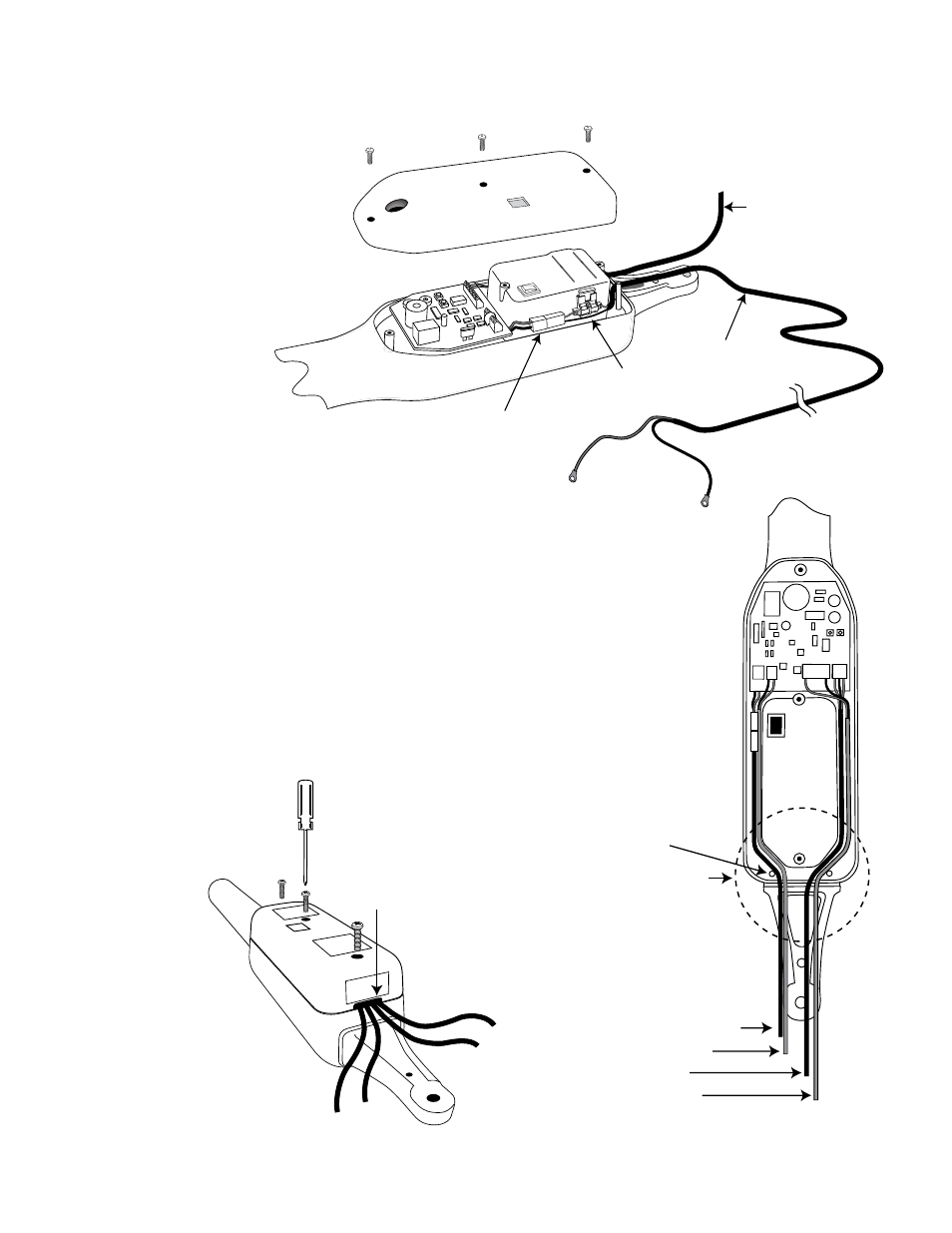

The wires from the battery harness, receiver, transformer or solar panel,
and any accessories that have been installed must be routed down the
sides of the opener and out the strain relief slot in the back of the opener.
It is IMPORTANT that the wires lay flat and run inside the routing pins at
the back of the opener and out the strain relief slot without being pinched
when the control board access cover is replaced. See the illustrations to
the right and below.
Strain Relief Slot
To avoid stripping screw
holes - tightening screws
by hand with a hand held
screwdriver is recommended.
IMPORTANT: Detailed Wire Routing Diagrams
