As specified by Gate Operator Safety Standard, UL 325
(30A.1.1), automatic gate operators shall have an inherent
entrapment sensing system, and shall have provisions for,
or be supplied with, at least one independent secondary
means to protect against entrapment. The Mighty Mule
200 utilizes Type A, an inherent (i.e., built-in) entrapment
sensing system as the primary type of entrapment
protection. Also, the Mighty Mule 200 has provisions
for the connection of Type B2 protection to be used as
the secondary type of entrapment protection, and is
recommended.
1. For gate operators utilizing a contact sensor (e.g.,
safety edge sensor– Type B2) in accordance with UL
325 (51.8.4 [i]):
A. One or more contact sensors shall be located at
the leading edge, bottom edge, and post edge, both
inside and outside of a vehicular swing gate system.
B. A hard wired contact sensor shall be located and its
wiring arranged so that the communication between
the sensor and the gate operator is not subjected to
mechanical damage.
C. A wireless contact sensor such as one that
transmits radio frequency (RF) signals to the gate
operator for entrapment protection functions shall be
located where the transmission of the signals is not
obstructed or impeded by building
structures, natural landscaping or similar
obstruction. A wireless contact sensor shall
function under the intended end-use conditions.
Secondary Means of Protection Against Entrapment
ENTRAPMENT ALARM (UL 325; 30A.1.1A)
The Mighty Mule 200 Automatic Gate Operator is designed to stop and reverse within 2 seconds when the gate comes in
contact with an obstruction. Additionally, these operators are equipped with an audio entrapment alarm which will activate if
the unit obstructs twice while opening or closing. This alarm will sound for a period of 5 minutes, or until the operator receives
an intended signal from a hardwired entry/exit source (e.g. push button control or keypad) and the gate returns to a fully open
or fully closed position. Turning the power switch on the control box OFF and back ON will also deactivate the alarm. Wireless
controls such as transmitters and wireless keypads will not deactivate the alarm.
IMPORTANT SAFETY INSTRUCTIONS

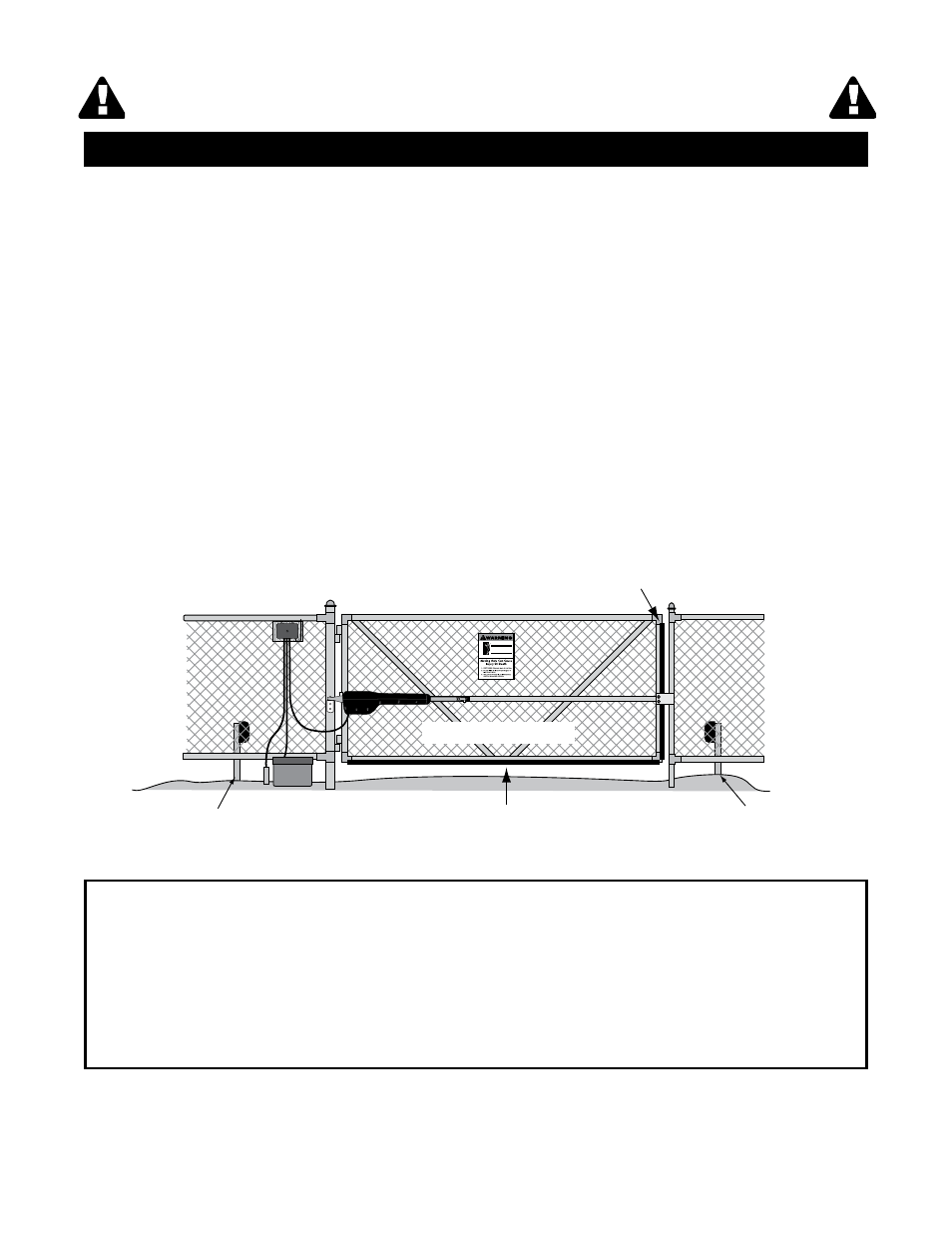

Vehicular Gate
Leading Edge Contact Sensor
on both sides of the gate
Bottom Edge Contact Sensor
on both sides of the gate
Photo Beam (R4222)
(recommended, not included )
Photo Beam (R4222)
(recommended, not included )
