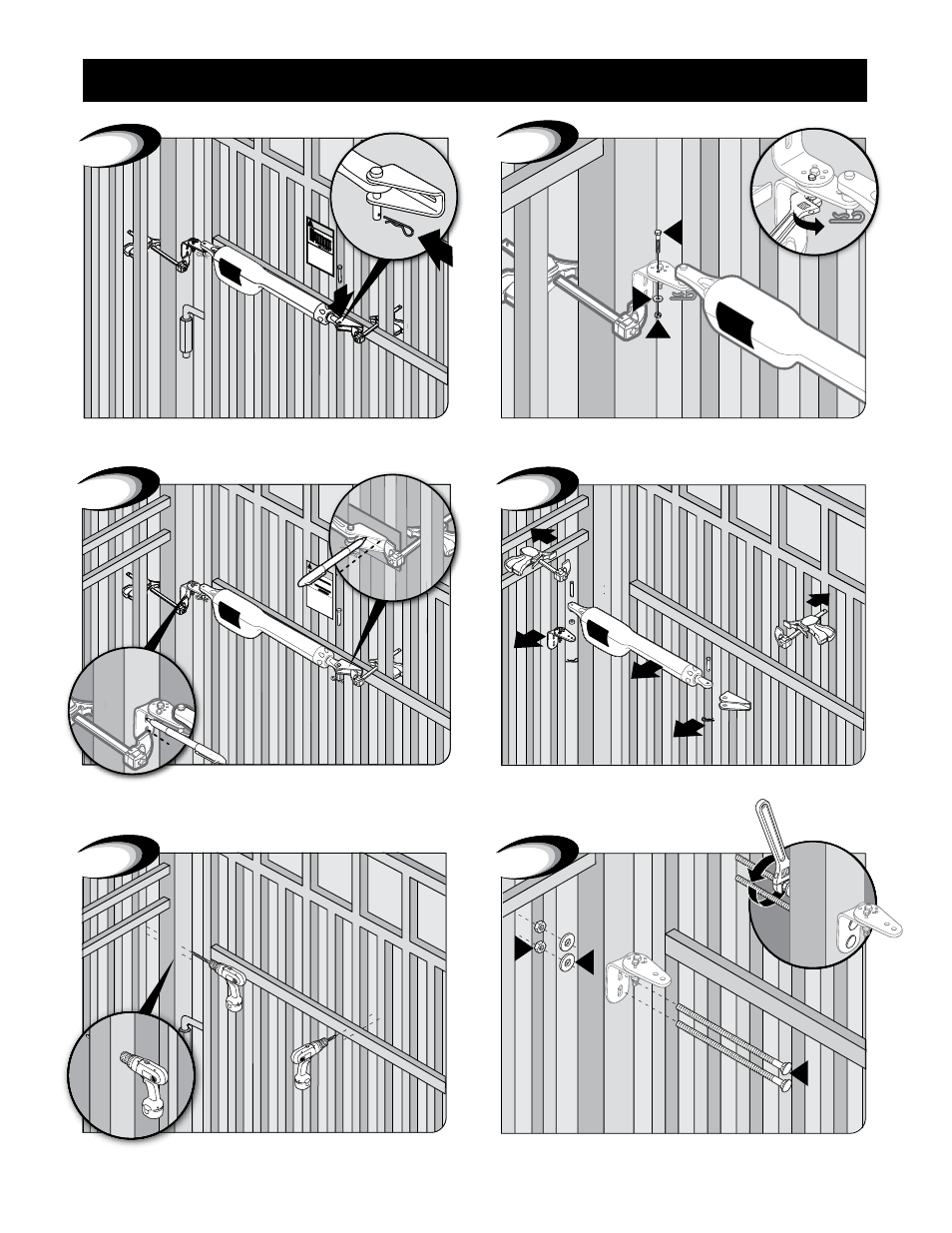

OPEN gate and reattach opener with clevis pin. Check for level.
Clamp securely.
Secure post pivot bracket to post bracket when clearance is OK
(Step 5) in both open and closed positions.
Mark middle of post bracket slots on fence post. Mark middle of
gate bracket slots on gate cross support.
Remove clamps, post bracket, gate bracket, and opener. Then
use a hammer and center punch to mark
hole positions.
Drill holes completely through gate post and gate cross support.
Attach post bracket assembly to fence post. NOTE: Must be
through bolted.
GATE OPERATOR INSTALLATION
