1. Determine Charging Option for Battery: Transformer OR Solar
NEVER USE TRANSFORMER AND SOLAR PANEL(S) AT
THE SAME TIME. It will damage the control board.
IMPORTANT:
• The Mighty Mule 200 is designed and intended for use with a 12 Volt automotive or marine type battery. The
battery must be placed inside a weatherproof case and located within 6 feet of the opener arm. The 8 foot
harness supplied connects the battery to the opener arm.
• The transformer is designed for indoor use. If the transformer can be plugged only into an outside electrical
outlet, a weatherproof cover/housing (available at local electrical supply stores) must be used.
• If your gate is more than 1000 ft. from an AC power source, you will need to use at least 5 watts solar
charging power to charge the battery [FM121]. Refer to the Solar Panel and Gate Activity chart below.
• All low voltage wire used with the GTO Gate Operator must be 16 gauge dual conductor, stranded, direct
burial wire [RB509]. Do not run more than 1000 ft. of wire.

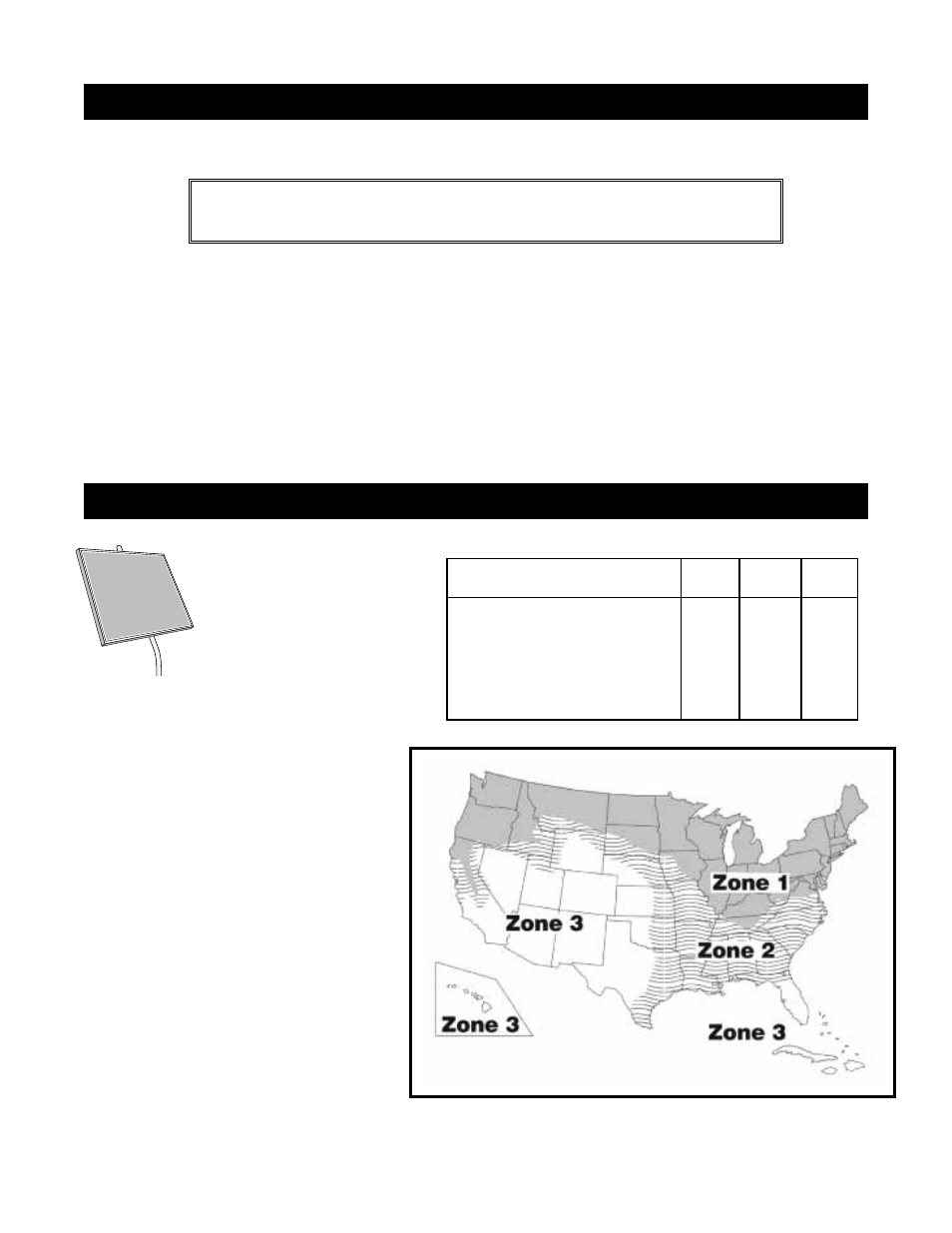

The table and map illustrate
the maximum number of
gate cycles to expect per
day in a particular area when
using from 5 to 30 watts of
solar charging power. The
figures shown are for winter
(minimum sunlight). Accessories connected to your
system will draw additional power from the battery.
Before You Begin
POWERING OPTIONS
SOLAR PANEL AND GATE ACTIVITY CHART
Single Gate Winter Ratings
Zone 1
Zone 2
Zone 3
12 v single gate (5 watts) solar charger
4
8
13
12 v single gate (10 watts) solar charger
8
16
26
12 v single gate (15 watts) solar charger
11
20
30
12 v single gate (20 watts) solar charger
14
28
38
12 v single gate (25 watts) solar charger
17
36
46
12 v single gate (30 watts) solar charger
20
44
54
