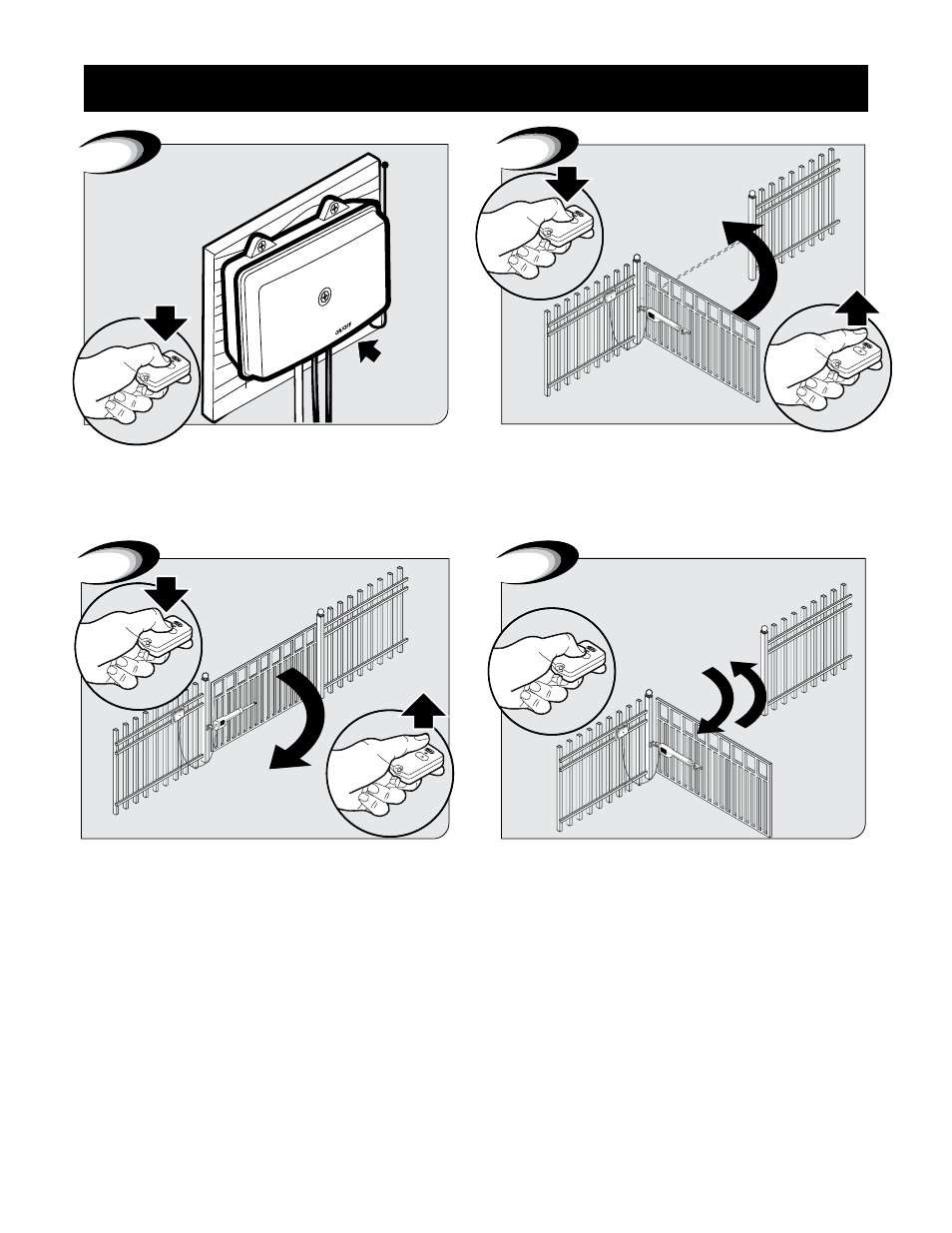

SETTING CLOSED LIMIT POSITION
With gate in OPEN position, (arm retracted) turn control box ON/
OFF switch to the OFF position. Press and hold the transmitter
while sliding the ON/OFF switch to ON position for 8 - 10 seconds
or until the alarm sounds.
Press and hold transmitter; gate should start closing. Release
transmitter button when gate reaches desired CLOSED position.
NOTE: If your gate stops and reverses before it fully closes, you
may need to increase the stall force. (See page 9)
1
POWER
ON OFF
SG1
ED1
K1
06
A VR-ISP
D1
C2
C7 C15
LED3
D15
R20 IC4
D16 D13 D14
K2
BATT - BA
TT+
STATUS
ANT SHLD
S9.8874
EDGE
COM
LOCK+
LOCK -
PGOK20
0 R ev. X
C
M_BLK
M_RED VAR2
GRN
VAR3
VAR3
VAR 1
VAR4
VAR5
PF1
VAR6
WHT
GTO Inc.
Tall aha sse e, F
L
CYCLE
EXIT
SAFETY
COM
CHGR
CHGR
OFF
120
AUTO CL
OSE
TIME
MIN
MAX
STALL
FORCE
2
3
ON/OFF
SWITCH
4
Press and hold transmitter again; gate should start opening.
Release transmitter button when single audible alarm sounds
indicating that gate has reached OPEN position.
Gate operator’s closed position is now set. Press and release
transmitter to close gate for normal operation.
