1 CHGR: Power Input Terminals:

• Input terminals for transformer or solar panel.

2 CHGR: Power Input Terminals:

• Input terminals for transformer or solar panel.

3 COM:

• Common/Negative terminal for accessory devices.

4 SAFETY: (Typically for use with photo beam device,

loop detector or other non-contact sensors)

• Activation of this input while the gate is closing will cause

the gate to stop and return to the opened position.

• Activation of this input while the gate is opening has

no effect. (gate will continue to open)

• Activation of this input while gate is idle will prevent gate

from closing.

• Activation of this input while at open limit will restart the

auto close time (if enabled).


5 EXIT: (Typically for use with exit loop or wand)

• Activation of this input will open the gate if it’s not already

at the open position.

• Activation of this input while at open limit will restart the

auto close time (if enabled).

6 CYCLE: (Typically for use with doorbell button or hardwired

keypad)

• Each activation at this input will cycle the operation

as

follows:

….→ OPEN → STOP → CLOSE → STOP → OPEN → …


7 EDGE: (Typically for use with contact edge sensor)

• Activation of this input while gate is moving will cause it to

reverse direction for 2 seconds.

• Activation of this input while idle will prevent gate from running.

8 COM:

• Common/Negative terminal for accessory devices.

9 LOCK +: Positive terminal to connect GTO electro-mechanical lock. (FM143)

10 LOCK - : Negative terminal to connect GTO electro-mechanical lock. (FM143)

4

7

5
6

8

POWER

OFF

120

AUTO CLOSE

TIME

MIN

MAX

STALL

FORCE

ON OFF

SG1

ED1

K1

06

AVR-ISP

D1

C2

C7

C15

LED3

D15

R20

IC4

D16

D13

D14

K2

BATT- BATT+

STATUS

ANT SHLD

S9.8874

EDGE
COM

LOCK+

LOCK -

M_BLK
M_RED

VAR2

GRN

VAR3

VAR3

VAR1

VAR4

VAR5

PF1

VAR6

WHT

CYCLE

EXIT

SAFETY

COM

CHGR

CHGR

1
2

3

9

10

NOTE:

• All accessory inputs are dry-contact, normally open, inputs. DO NOT apply external voltage sources

to these inputs.

• All accessory inputs are connected with respect to

COMMON terminal.

LOCK OUTPUTS

CHARGE POWER

INPUTS

ACCES

SORY INPUTS

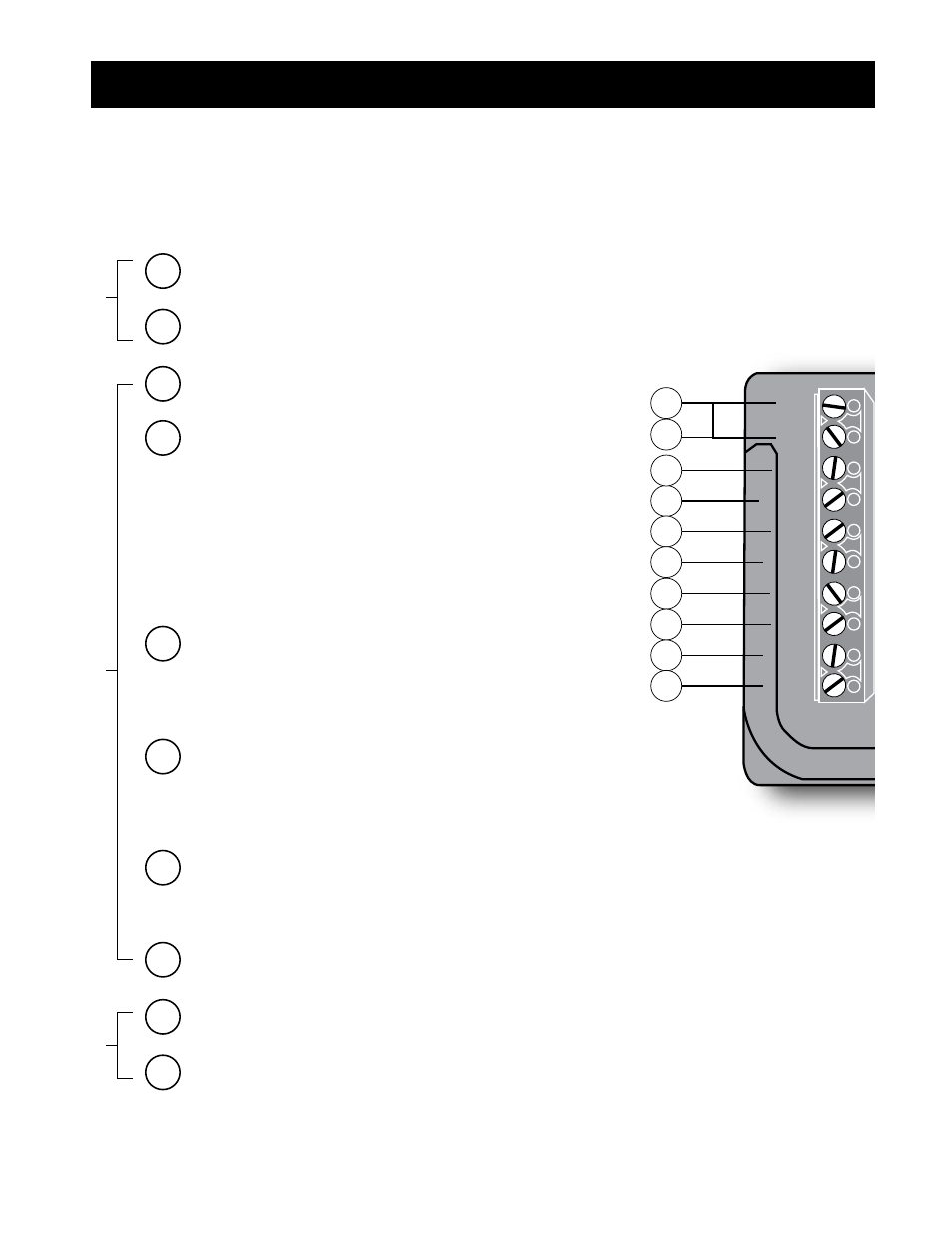

CONTROL BOARD CONNECTIONS
