RVC 2-18 CD& HCL
8 Maintenance and service
Version 04/2012, Rev. 1.4 of 25/11/2013 • sb
57
Translation of the original operating manual
• Separate the magnetic coupling from the rotor shaft. To do so, unscrew
the four slotted screws that join the magnetic coupling with the rotor
shaft.
7
Slotted screws
8 Magnetic coupling,
separate

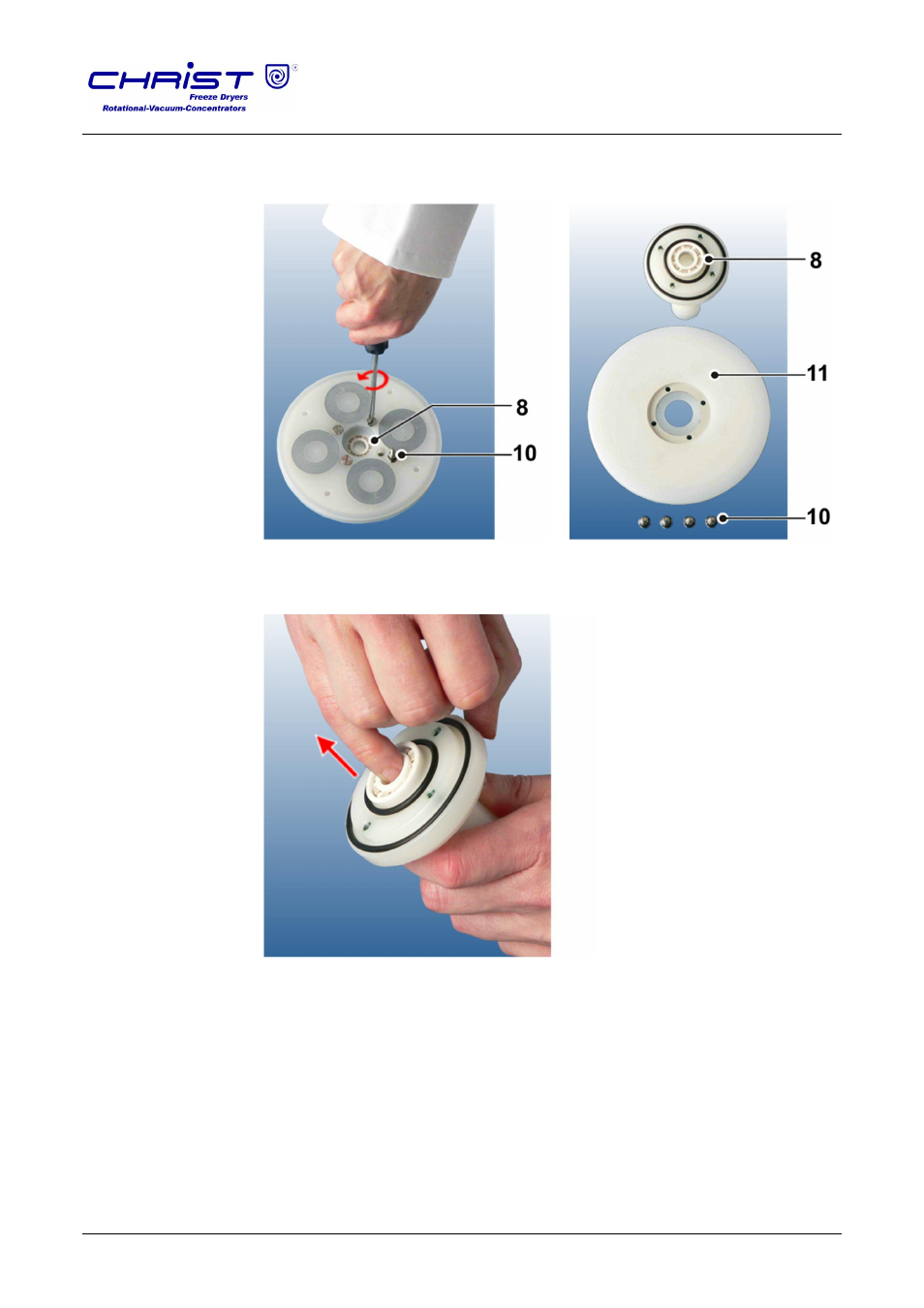

Fig. 48: Rotor shaft and upper ball bearing
• Remove the lower ball bearing.
Fig. 49: Removal of the lower ball bearing
• Clean the rotor shaft and magnetic coupling.
• Insert a new lower ball bearing.
• Screw the magnetic coupling and rotor shaft together.
