RVC 2-18 CD& HCL
8 Maintenance and service
Version 04/2012, Rev. 1.4 of 25/11/2013 • sb
55
Translation of the original operating manual
4
Hexagon socket
screw

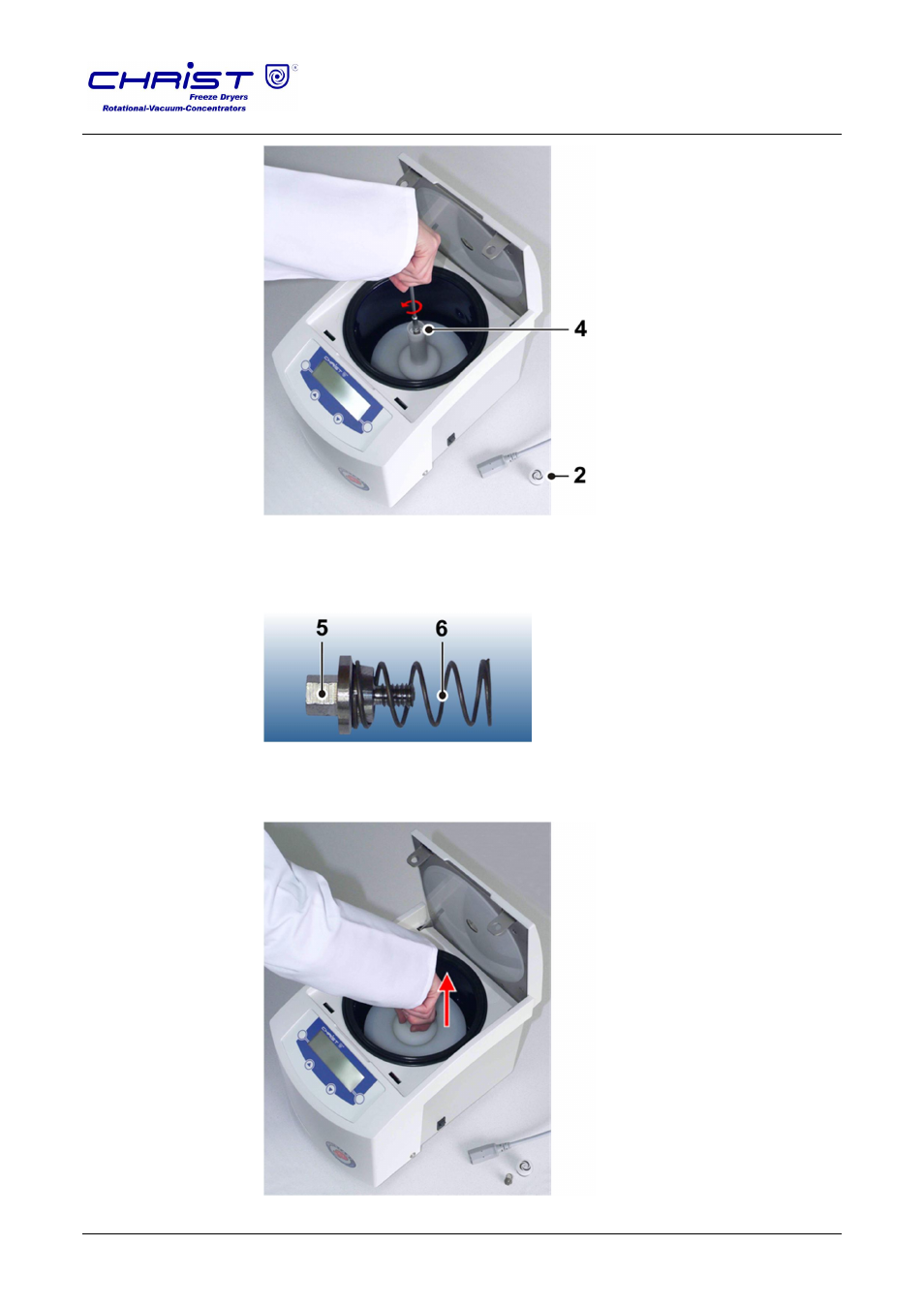

Fig. 43: Removing the hexagon socket screw
• Pull the thrust piece with the compression spring vertically upwards in
order to remove it from the axle.
5
Thrust piece
6 Compression spring
Fig. 44: Thrust piece and compression spring
• Pull the rotor shaft vertically upwards in order to remove it from the axle.
Fig. 45: Removing the rotor shaft
