RVC 2-18 CD& HCL
6 Operation
38
Version 04/2012, Rev. 1.4 of 25/11/2013 • sb
Translation of the original operating manual

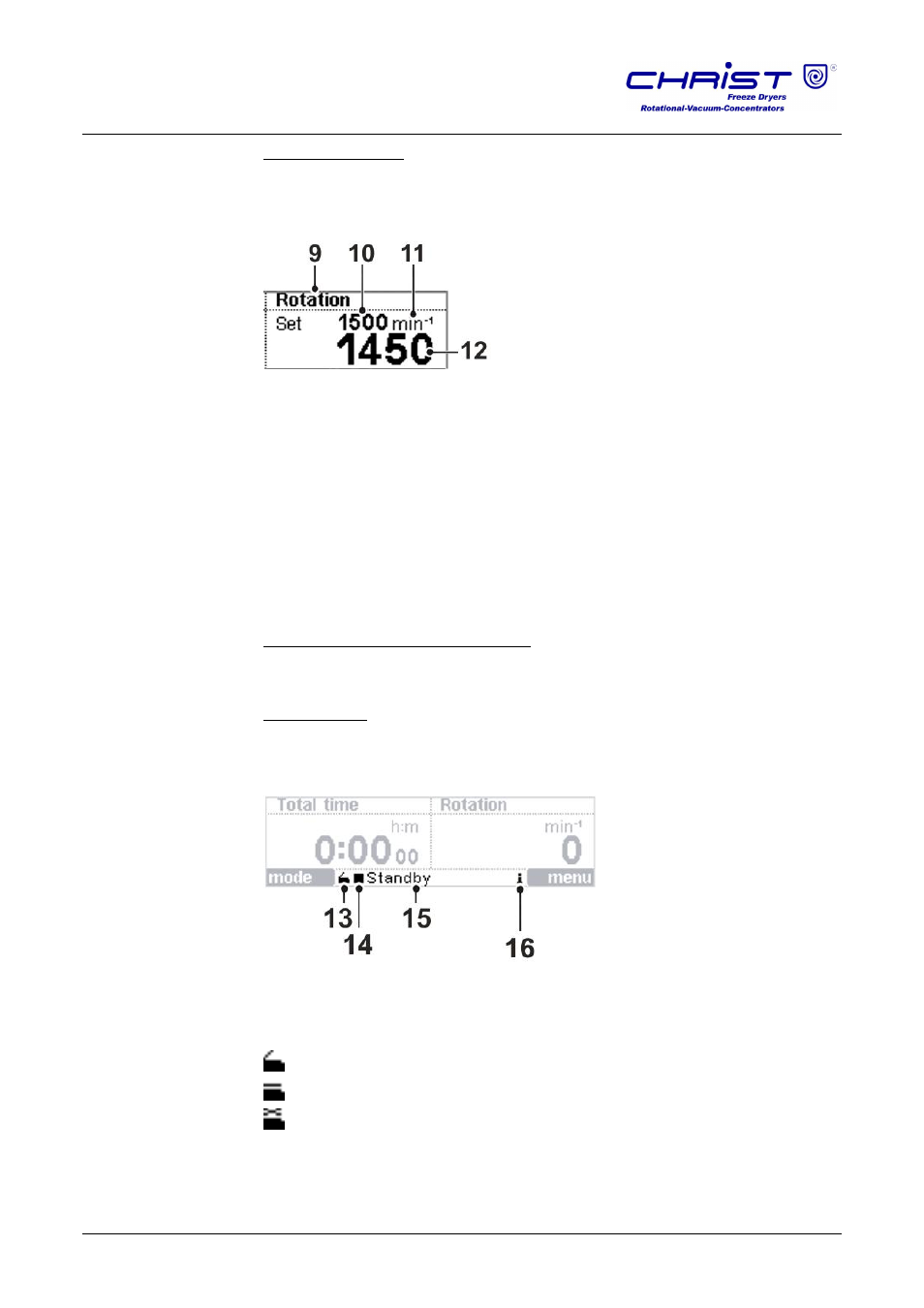

Values window (6)
The values window is displayed after the initialisation of the CDplus control
system. It is divided into two areas. Each value window is structured as
follows:
9 Measuring channel
10 Set value (only shown
in the run mode)
11 Unit of the measured
value
12 Actual value
Fig. 19: Values window
The available measurement values can be displayed in the values window
on the left as well as in the values window on the right so that a
combination of the following values can be selected:
• Rotor speed
• Rotor chamber temperature
• Total time (indicates the total runtime of the process)
• Section time (indicates the runtime of an individual phase, e.g. warm-
up, evaporation)
Assignment of the function keys (7)
See "function keys" (1+2)
Status bar (8)
The status bar shows information regarding the lid status, current operating
mode, active phase, and any pending information. The status bar is visible
at all times.
13 Lid status
14 Icon for the operating
mode
15 Active phase
16 Info icon
Fig. 20: Status bar
Lid status (13)
The lid is open.
The lid is closed.
The lid is not completely closed.
• Press both sides of the lid down in order to close the lid
completely.
