ALPHA 1-4 LSC&
ALPHA 2-4 LSC&
11 Appendix
92
Version 01/2011, Rev. 1.5 of 16/12/2013 • sb
Translation of the original operating manual
11 Vacuum connection
12 Name plate
13 Heat exchanger of the
refrigeration unit
14 Data interface
15 Electrical connection of
the vacuum sensor
16 Connection of the
vacuum sensor
17 Option: USB port
18 Power supply of the
vacuum pump
19 Power supply of the
pressure control valve
20 Mains fuse
21 Mains cable
22 Equipotential bonding
screw

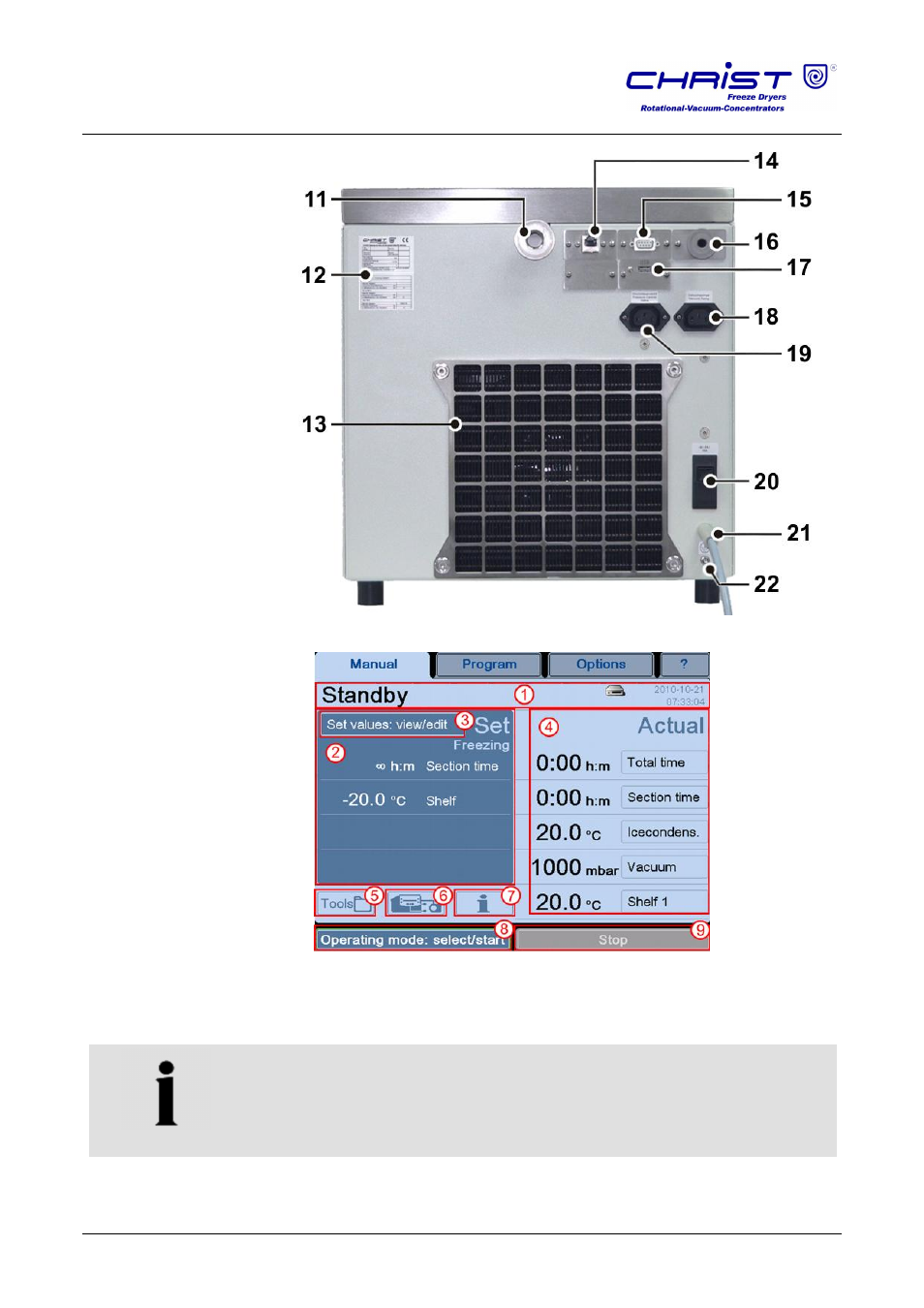

Fig. 76:
Rear view of the freeze-dryer
1
Status line
2 Set process values
3 Button "Set values: view/edit"
4 Actual values of the current
process
5 Button "Tools"
6 Button "Schematic system
diagram"
7 Button "Process and
equipment messages"
8 Button "Operating mode:
select/start"
9 Button "Stop"
Fig. 77: LSCplus user interface
Step-by-step instructions – shelf drying
1 Freeze the sample separately, e.g. in a deep-freeze.
NOTE
Ensure that the layer thickness of 1 to 2 cm is not exceeded, since
otherwise the drying time needs to be extended.
2 Check the ice condenser chamber and ensure that it is completely free
from water residues.
