ALPHA 1-4 LSC&
ALPHA 2-4 LSC&
2 Layout and mode of operation
Version 01/2011, Rev. 1.5 of 16/12/2013 • sb
13
Translation of the original operating manual
11 Vacuum connection
12 Name plate (see chapter
2.1.2 - "Name plate")
13 Heat exchanger of the
refrigeration unit
14 Data interface
15 Electrical connection of
the vacuum sensor
16 Connection of the
vacuum sensor
17 Option: USB port
18 Power supply of the
vacuum pump
19 Power supply of the
pressure control valve
20 Mains fuse
21 Mains cable
22 Equipotential bonding
screw

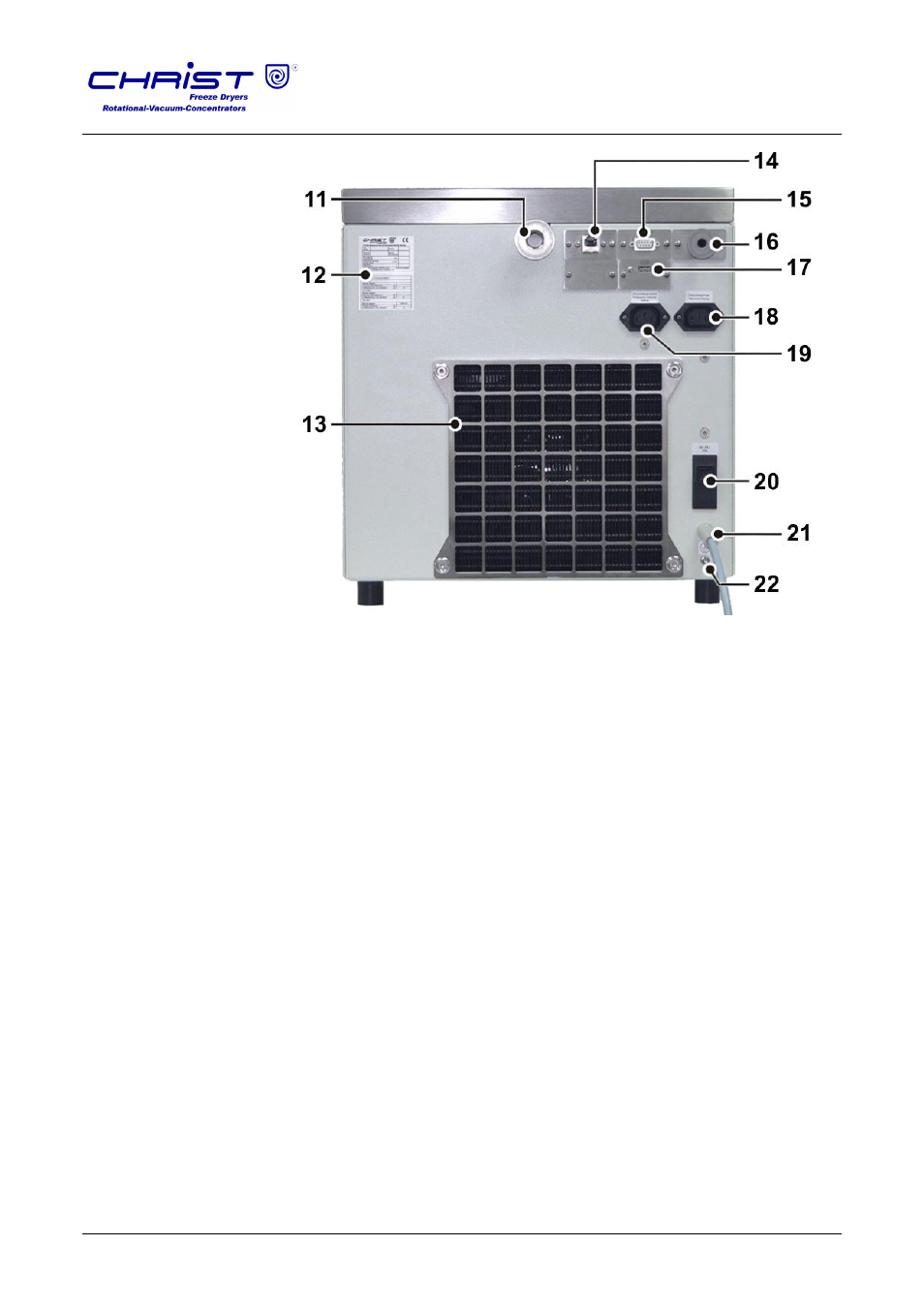

Fig. 5:
Rear view of the freeze-dryer
