6 Operation
Version 01/2011, Rev. 1.5 of 16/12/2013 • sb
55
Translation of the original operating manual

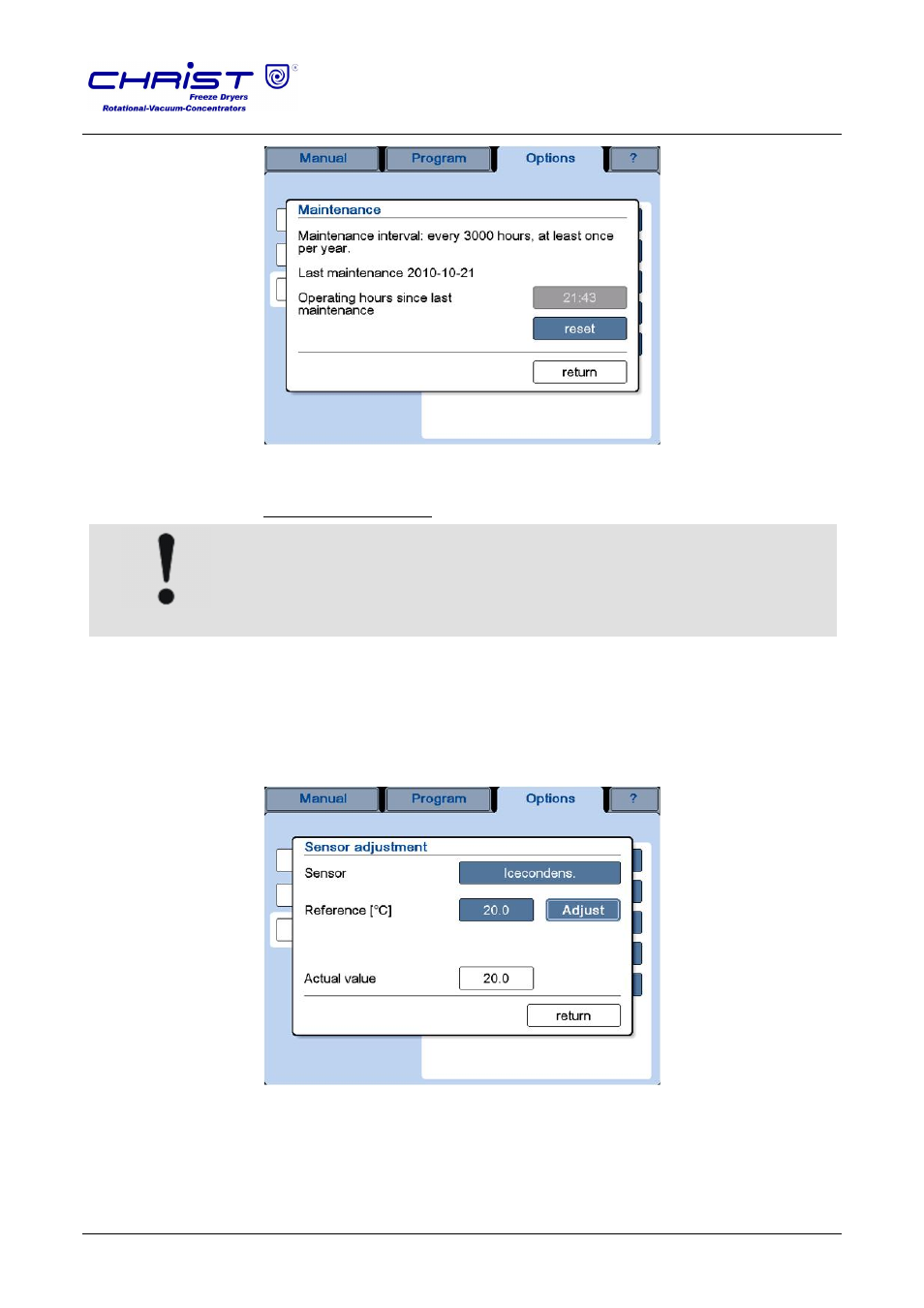

Fig. 48: Dialog box "Maintenance"
Sensor adjustment (6)
CAUTION
Misadjusted sensors will lead to incorrect measurement values, which in
turn will have a negative effect on the process control.
In this dialog box, the sensors are adjusted in terms of a predefined
reference value.
• Press the button in order to select the sensor. A selection menu will be
displayed.
• Enter a reference value and press the button "Adjust".
Fig. 49: Dialog box "Sensor adjustment"
