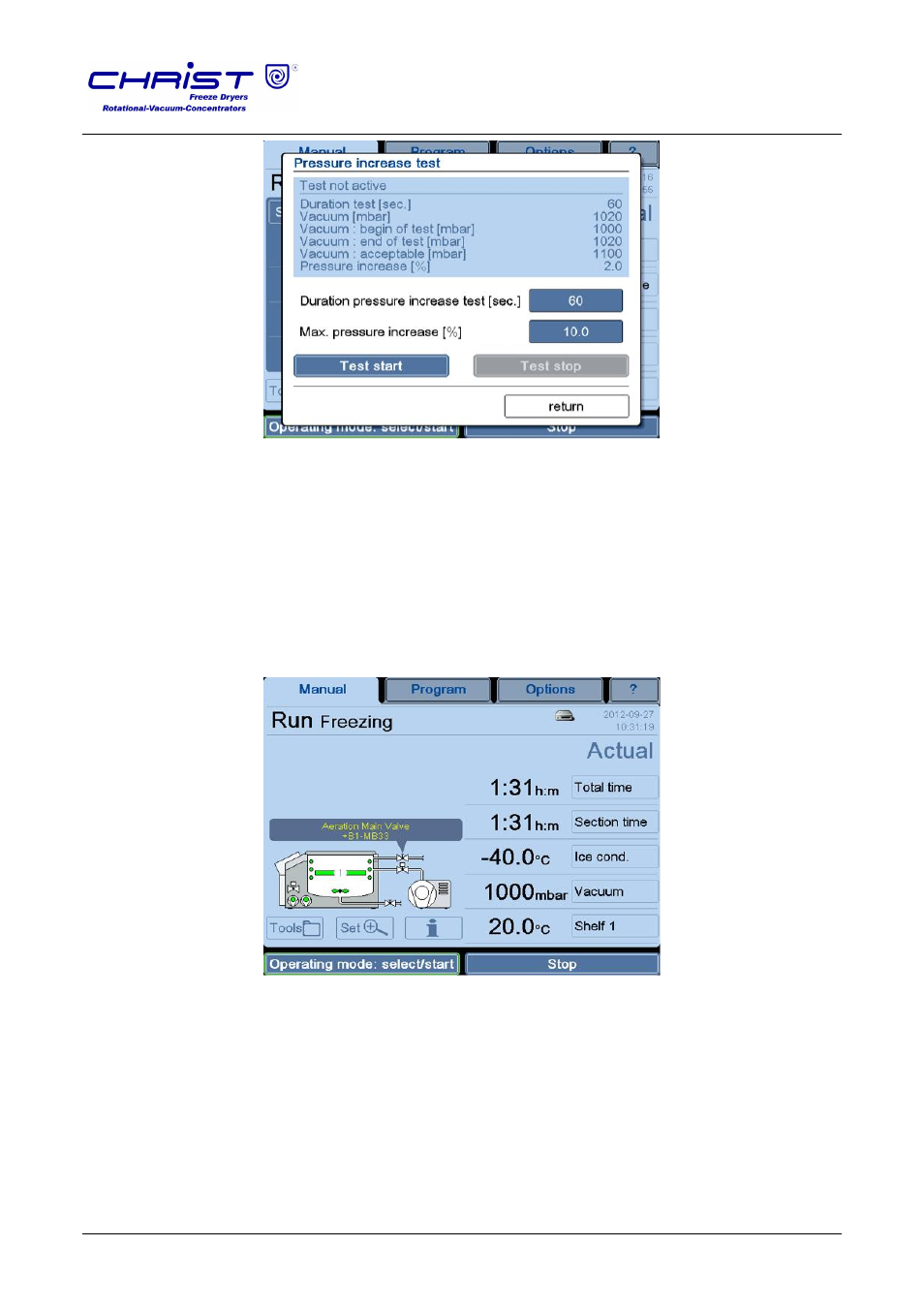

Fig. 23: Dialog box “Pressure increase test”
• The “Test stop” button stops the pressure increase test.
Dialog box "Schematic system diagram" (6)
Pressing the button "Schematic system diagram" displays a schematic
diagram of the system on the left-hand side of the screen, including all the
components. Active components are displayed in green. Touching a
component calls up its name and reference designator.
Fig. 24: Schematic system diagram with the name and reference designator of the
component
Dialog box "Process and equipment messages" (7)
This dialog box shows and saves all of the error messages and other
messages. In the event of an error or message, the window “Process and
equipment messages” will open automatically. In addition, a sound signal is
emitted until the error is acknowledged.
