Martin Christ Alpha 2-4 LSCplus - Manual (Page 43)

ALPHA 1-4 LSC&
ALPHA 2-4 LSC&
6 Operation
Version 01/2011, Rev. 1.5 of 16/12/2013 • sb
43
Translation of the original operating manual
NOTE
Always indicate the error code in the event of enquiries or service
requests!
4
Error message
5 Error code
6 Detailed information
7 Arrow keys

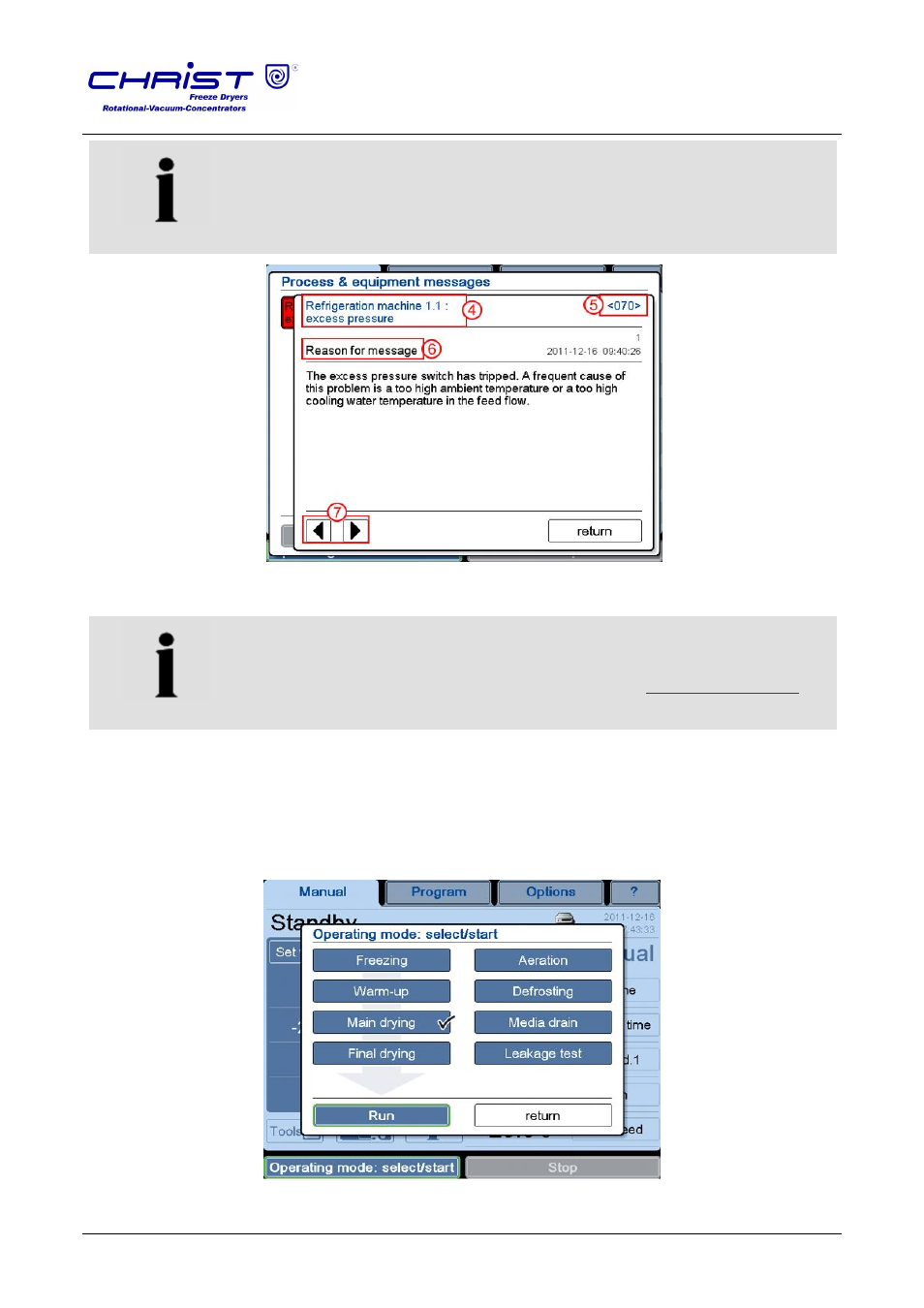

Fig. 27: Details concerning an error message
NOTE
The texts of the process and error messages are not included in this
operating manual.
You can order these documents on the Internet at
www.martinchrist.de by
way of the form "Service request".
"Dialog box "Operating mode: select/start (8)
After the set values have been entered for the process, the process can be
started manually with this function (see chapter 6.5.2 - "Manual freeze-
drying").
Fig. 28: Dialog box "Operating mode: select/start" (The version of the dialog box that is
displayed depends on the equipment of the freeze-dryer.)
