ALPHA 1-4 LSC&
ALPHA 2-4 LSC&
11 Appendix
90
Version 01/2011, Rev. 1.5 of 16/12/2013 • sb
Translation of the original operating manual
Pos: 234 /20 0 Ch rist/3 61 G T-BA L abo r-Pilot (PROJEKTE)/Alph a 1 -4_ 2-4 LSCplus/ 110 A nha ng/0 110 -00 20 Ku rzbe dien ungs anleit ung Alp ha @ 5\ mod_ 129 829 314 106 2_6 8.doc x @ 3 425 5 @ 2 @ 1
11.2 Brief operating instructions

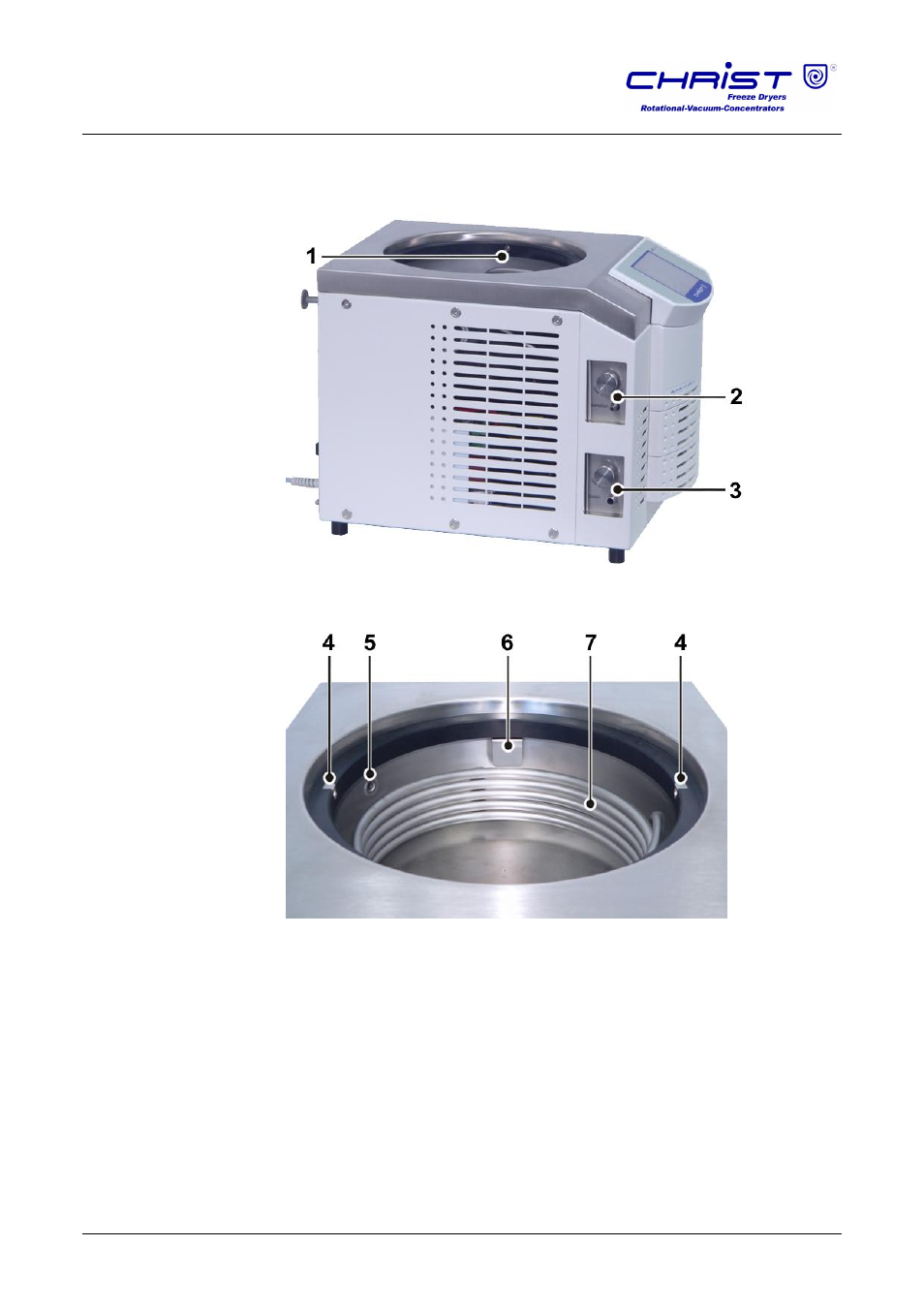

Functional and operating elements:
1
Ice condenser chamber
with an internal ice
condenser
2 Aeration valve
3 Media drain valve
Fig. 72:
Left side of the freeze-dryer
4
Contact piece
5 Vacuum sensor
6 Pipe connection of the
vacuum pump (behind
the cover plate)
7 Ice condenser
Fig. 73:
Ice condenser chamber
