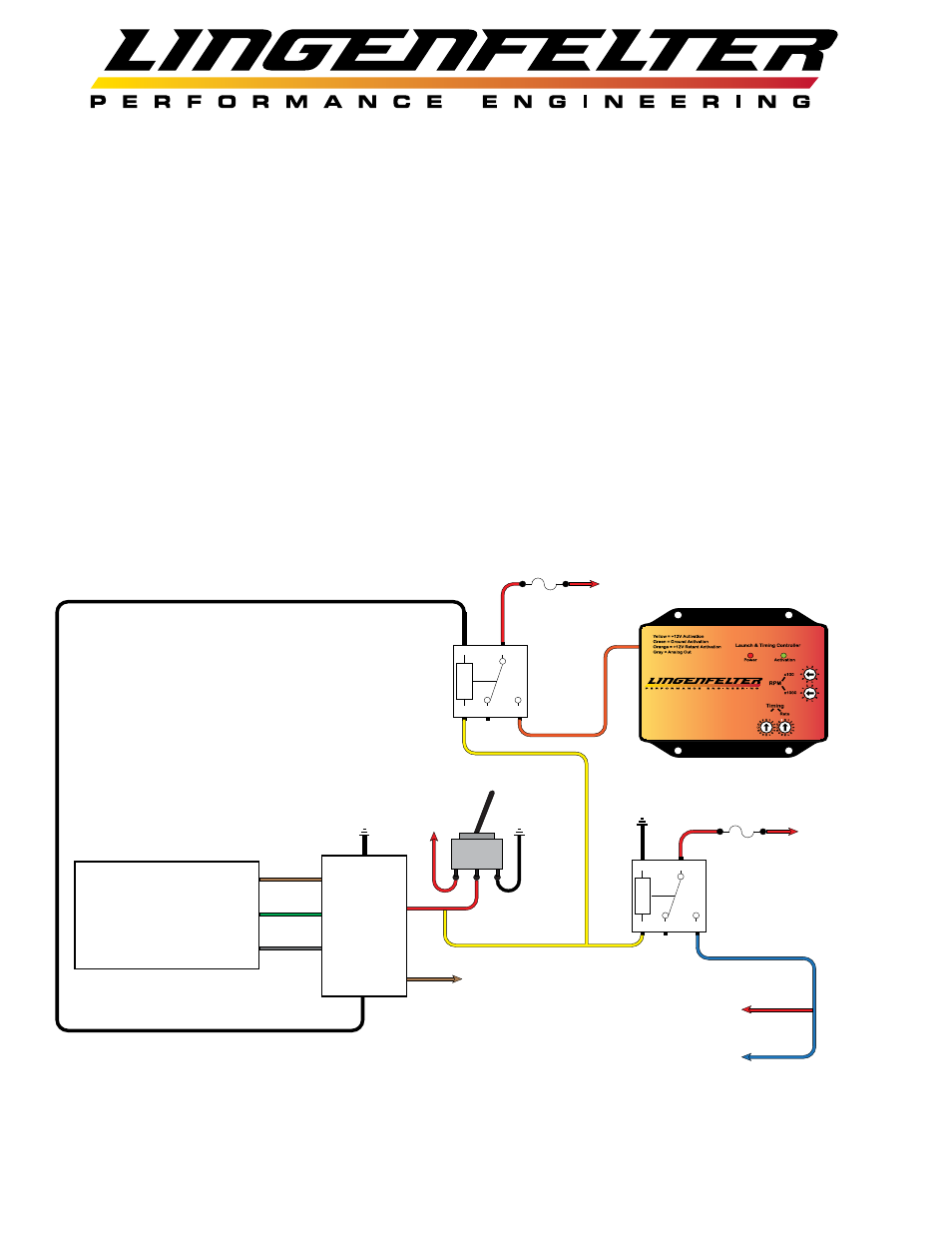

LNC-2000 Receiving +12V Retard Activation
Input from the Harris Speed Works MicroEDGE+
(Using Two Nitrous Stages)
Ground
85
86
30
87a 87
MicroEDGE+
Driver
Module
Ground
Ground
+12 Volts
Switched
LNC-2000
Red = MAP +5V
Black = MAP/Linear Ground
Purple = MAP/Linear Signal
F = Linear Mode
.2 Volt = 0*
4.8 Volt = 15*
Max Retard
To +12V Side of
Nitrous Solenoid
To +12V Side of
Fuel Solenoid
To Ground Side
of Stage 1
Solenoids
30 Amp
Fuse +12V from
Battery
Stage 1 Relay
85
86
30
87a 87
Stage 2
Relay
30 Amp
Fuse
+12V from
Battery
To Ground Side of Stage 2 Relay
(Stage 2 CANNOT be progressive)
• In this configuration, the second stage of nitrous is replaced with the LNC-2000. The second stage
must NOT be progressively controlled.
• Set both stages to the same settings if you want the LNC-2000 timing retard to trigger when the
nitrous triggers. If you want the timing retard to activate earlier or later, set the second stage to
come in earlier or later than the first stage on the controller.
• Use a relay to swap the output (ground/power activation swap)
• This setup can be used for any progressive 2-stage nitrous controller that does not have a
timing retard activation output.
Connecting the Lingenfelter LNC-2000 to a Secondary Stage on the Harris
Speed Works MicroEDGE+ Progressive Nitrous Controller
The MicroEDGE+ name is property of
Harris Speed Works Inc.
Page 25 of 31
