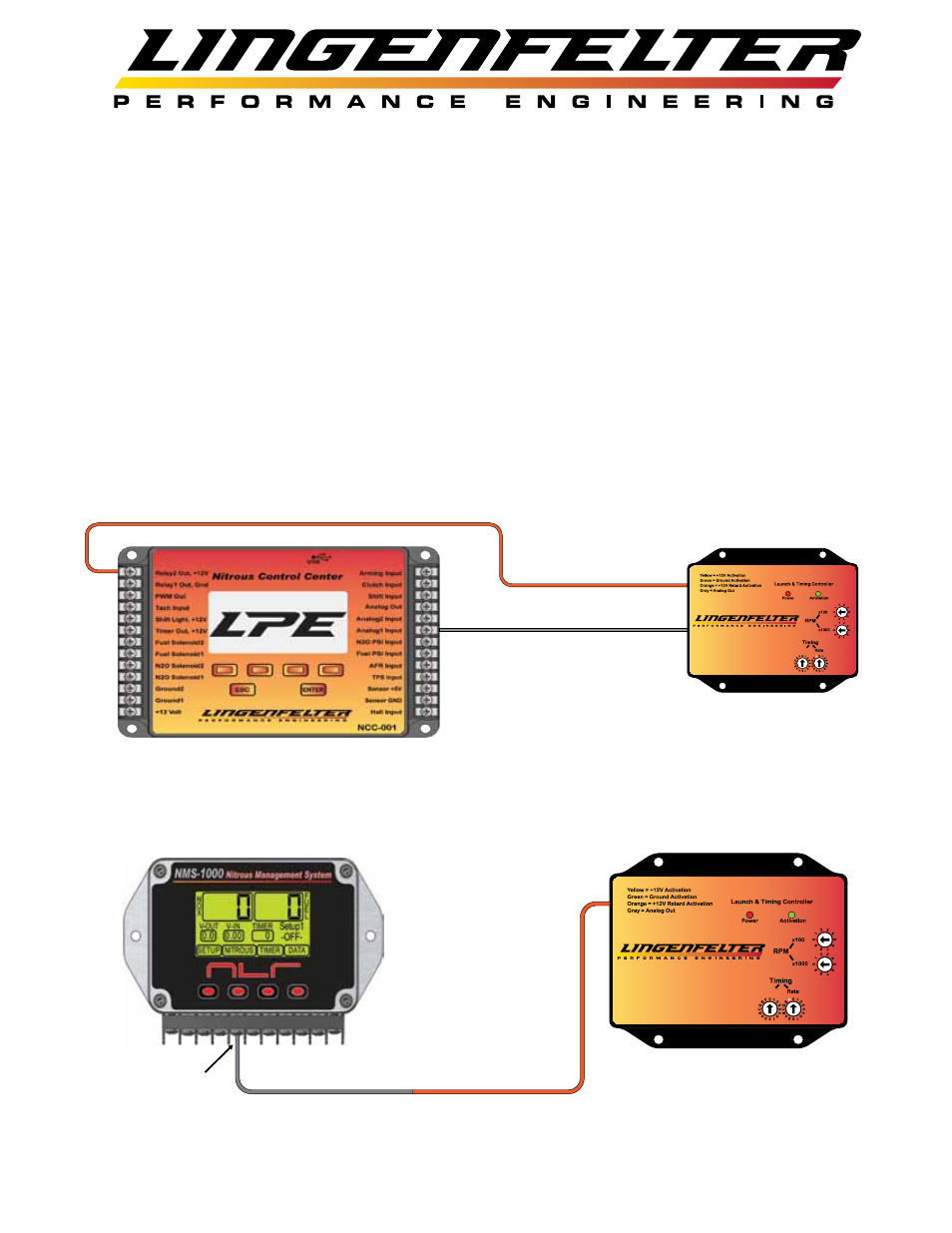

NCC-001 Providing +12V Retard Activation for the
Lingenfelter LNC-2000 Launch Control Module
LNC-2000
Red = MAP +5V
Black = MAP/Linear Ground
Purple = MAP/Linear Signal
F = Linear Mode
.2 Volt = 0*
4.8 Volt = 15*
Max Retard
Log spark retard data from LNC-2000 to
Analog1 Input (optional-gray)
LNC-2000 +12V timing
retard activation from the
NCC-001’s Relay2 output
(Orange)
4 9 8 7 6 5 3 2 1
LNC-2000
Red = MAP +5V
Black = MAP/Linear Ground
Purple = MAP/Linear Signal
F = Linear Mode
.2 Volt = 0*
4.8 Volt = 15*
Max Retard
+12V LNC-2000 Retard
Activation Input
(Orange)
LNC-2000 Receiving +12V Retard Activation
Input from the NLR Systems NMS-1000
NMS-1000
Timer Output
(Gray)
The “NMS-1000 Nitrous Management System” name and “NLR” logo
is property of NLR, LLC.
LNC-2000 Timing Retard Activation
Page 22 of 31
To allow a nitrous or other controller to control the activation of timing retard:
• Set the maximum desired timing retard with the Max Retard Setting on the LNC-2000
• Set the LNC-2000 to Time-Based Retard Mode (any setting other than F on the Rate)
• Set the Ramp rate dial to your desired timing retard ramp rate
• If using the NCC-001 or NCC-002
• Connect the +12V Relay2 Out from the NCC-001 or NCC-002 to the orange +12V
Retard Activation input on the LNC-2000 (can also use Timer Out if desired)
• Program the Relay2 output on the NCC to activate the timing retard based on nitrous
percentage, RPM and/or what ever other variables you desire
• If using most other nitrous controllers you will need to use the Timer or similar output
