Automatic transmission with linelock – Lingenfelter L460145297 Lingenfelter LNC-2000 LS Timing Retard Launch Controller v2.0 User Manual
Page 19
Page 18 of 31
LNC-2000
Red = MAP +5V
Black = MAP/Linear Ground
Purple = MAP/Linear Signal
F
= Linear Mode
.2 Volt = 0*
4.8 Volt = 15*
Max Retard
Momentary Switch MUST be capable of supplying current
draw of Linelock Solenoid. If switch is rated at a lower amperage
then the solenoid, a Relay MUST be used. See Diagram for
Manaul Transmission installation for Relay wiring details.
Optional LED, On when
Arming Switch is ON.
Automatic Transmission with Linelock
Retard Activation Connect to Nitrous
WOT switch signal or to +12V output
from Nitrous controller.
Analog Output
0-3 volt, .2 volt per 1* of Retard
Connect to analog input of Data
Recorder.

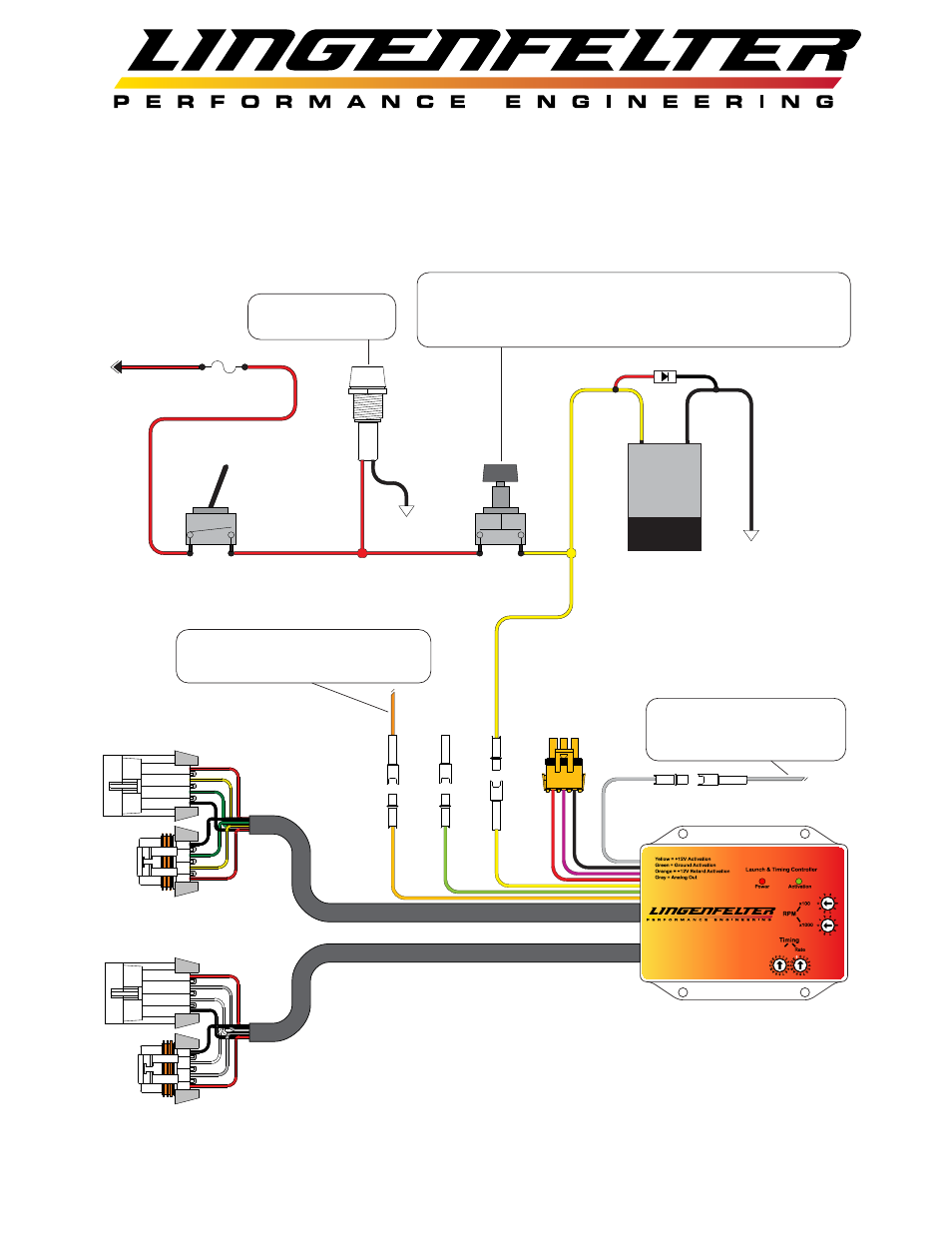

Use this configuration to activate Linelock and the 2-step function using a momentary push-button switch.
Once the toggle switch is flipped ON and the momentary switch is pressed, Linelock and the 2-step function will
be activated. When the push button is released, Linelock and the 2-step function will be deactivated.
A
B
C
+12V
Toggle Switch
Ground
Momentary
Switch
Ground
Linelock
Solenoid
(Arms 2-Step and Linelock)
Fuse
20 Amp
When the LNC-2000 is powered up with no
MAP Sensor installed it will default to
Time Based Retard mode.
TVS
diode
