Lingenfelter L250070709 Lingenfelter CTS-V LSA Supercharger Pulley 2009-2012 v1.9 - Manual (Page 11)

Page

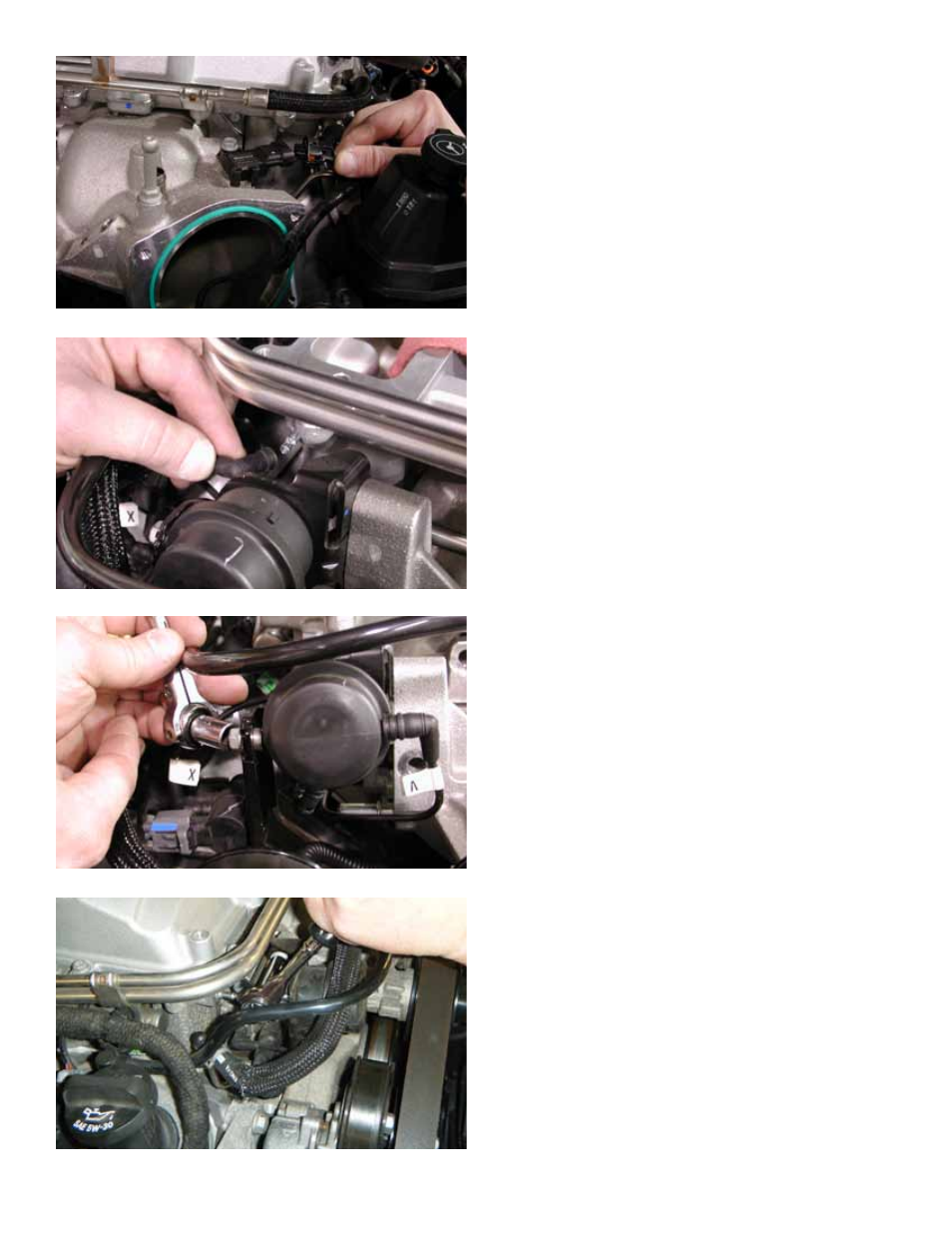

32. Using a 10 mm socket, remove the two
bolts on the bypass actuator bracket.
NOTE: Do not remove the actuator at this time.
10.
29. Disconnect the electrical connector to the
inlet air pressure sensor from the supercharger
front cover.
30. Remove the two (2) vacuum lines from the
bypass actuator to the intercooler and boost
solenoid.
31. Using a 10 mm socket, remove the boost
solenoid bracket from the bypass actuator.
Make sure any vacuum lines that are connected
from the solenoid are disconnected.
