51 52
Maintenance

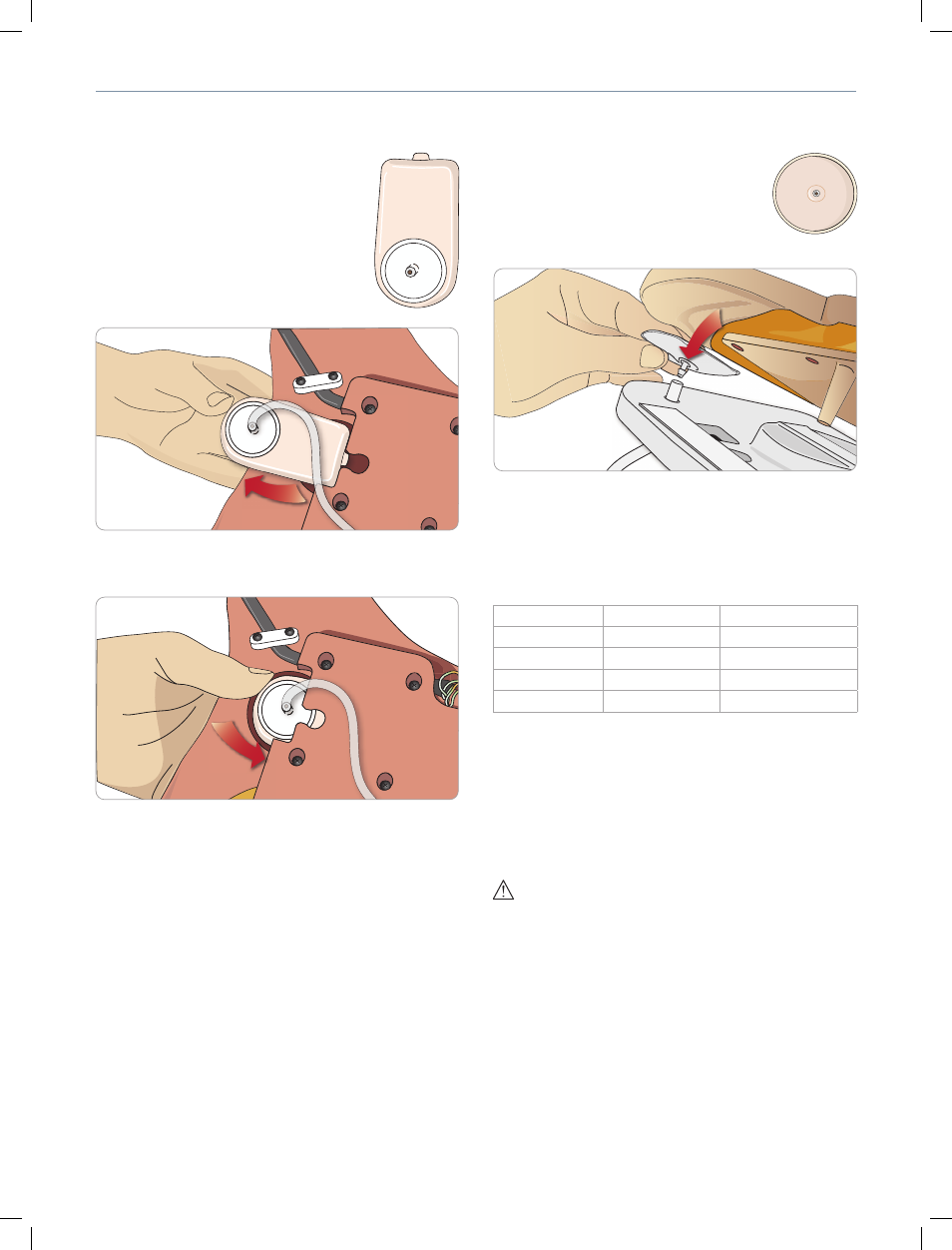

Replacing Pneumothorax Bladders
After multiple pneumothorax decompressions,
the bladders may need replacement:
1 Open the torso skin to expose the chest plate.
Lift the chest plate to reveal the pneumothorax
bladders located in slots in the side of the chest
plate assembly.
2 Slide out the used pneumothorax bladder.
3 Disconnect the tube and discard the old bladder.
4 Insert the new bladder into the slot.
5 Reconnect the tube to the new bladder
Replacing Chest Rise Bladder
If the chest rise bladders leak or are damaged:
1 Open the torso skin to expose the chest plate.
There is one bladder on each side of the chest
plate assembly.
2 Disconnect the tube from the bladder.
3 Discard the used bladder
4 Insert new bladder
5 Reconnect the tube to the new bladder
Left Leg to Pelvis – Tube Descriptions
Name/Label Tube Color Connector Description
Pneum L Silicon Barb connector
Pneum R Silicon Barb connector
Chest L Silicon Barb connector
Chest R Silicon Barb connector
IV Arm
A visual inspection should be performed after each use of the IV
arm. If there is noticeable leakage from the veins or the skin is
torn or damaged it is time to replace the IV arm. See page 12
for instructions on how to uninstall/install the IV arm. Contact
your local Laerdal Representative for more information.
Caution: The internal veins are composed of latex.
