Replacing the left leg with the amputated thigh, Installing the amputated im thigh skin, Setup for simulation – Laerdal SimMan 3G Mystic User Manual
Page 35
31
32
Manikin Setup
System Setup
Setup f
or Sim
ulation
Clinical F
eatur
es
Maintenance
Tr
oubleshooting
Spar
e Par
ts
Setup for Simulation

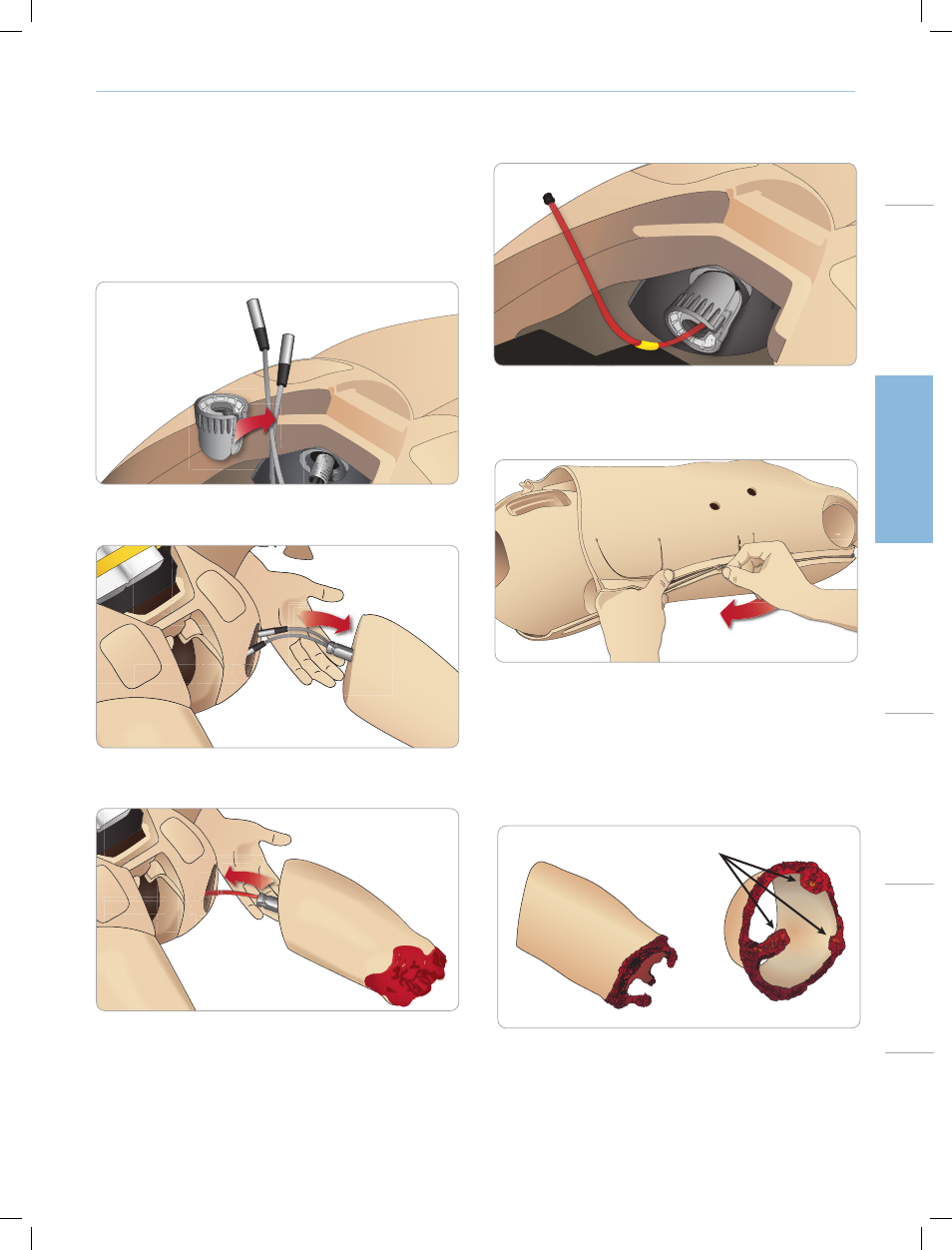

Replacing the Left Leg with the
Amputated Thigh
1. Remove the SimMan 3G default leg. Open torso skin and
stomach foam as shown in steps 1-4 on page 7.
2. Unscrew the hip joint connector. Remove the leg cables/tubes
from the connector.
3. Carefully remove the left leg with cables and tubes.
4. Insert the Amputated Thigh with blood tube into the leg socket.
5. Insert the blood tube into the side slot of the connector. Screw
the connector in place with one hand.
6. Connect the leg tube to the corresponding tube, as labelled
inside the torso. Close the stomach foam and zip the torso skin
back into place.
Installing the Amputated IM
Thigh Skin
1. Position the Amputated IM Thigh Skin to the Amputated Thigh
using the three landmarks of the the wounds as shown below.
Top
Bottom
Side
Positioning Landmarks
