Page 4

INTRODUCTION
5
AND ONE EACH OF THE FOLLOWING:
5005600
Glove Kit-Pair, Neoprene size 9-3/4 (includes 2 O-rings)
1965600
O-Ring Clamps (2)
5060300
Pressure Relief Bubbler (includes mounting hardware and 1 liter vacuum pump oil)
5079500
Connection Tube Assembly (not required on Models 508000000 and 508010000)
5075500
Instruction Manual
General Description
The Protector® Controlled Atmosphere Glove Box is available as a basic box with
manually controlled valves or with optional automatic systems. The basic models, 506000000 and
506010000, include a control panel with pressure gauges and switches. Models 507000000 and
507010000 include an automatic pressure control module. The pressure control module
automatically monitors and controls glove box pressure and alerts you to pressures outside preset
pressure limits. A foot pedal allows you hand-free adjustment of the glove box enclosure pressure.
Models 508000000 and 508010000 include a purge/fill control module. The purge/fill
control module automatically regulates evacuation and backfill of the transfer chamber in addition
to the basic control panel and the automatic pressure control module.

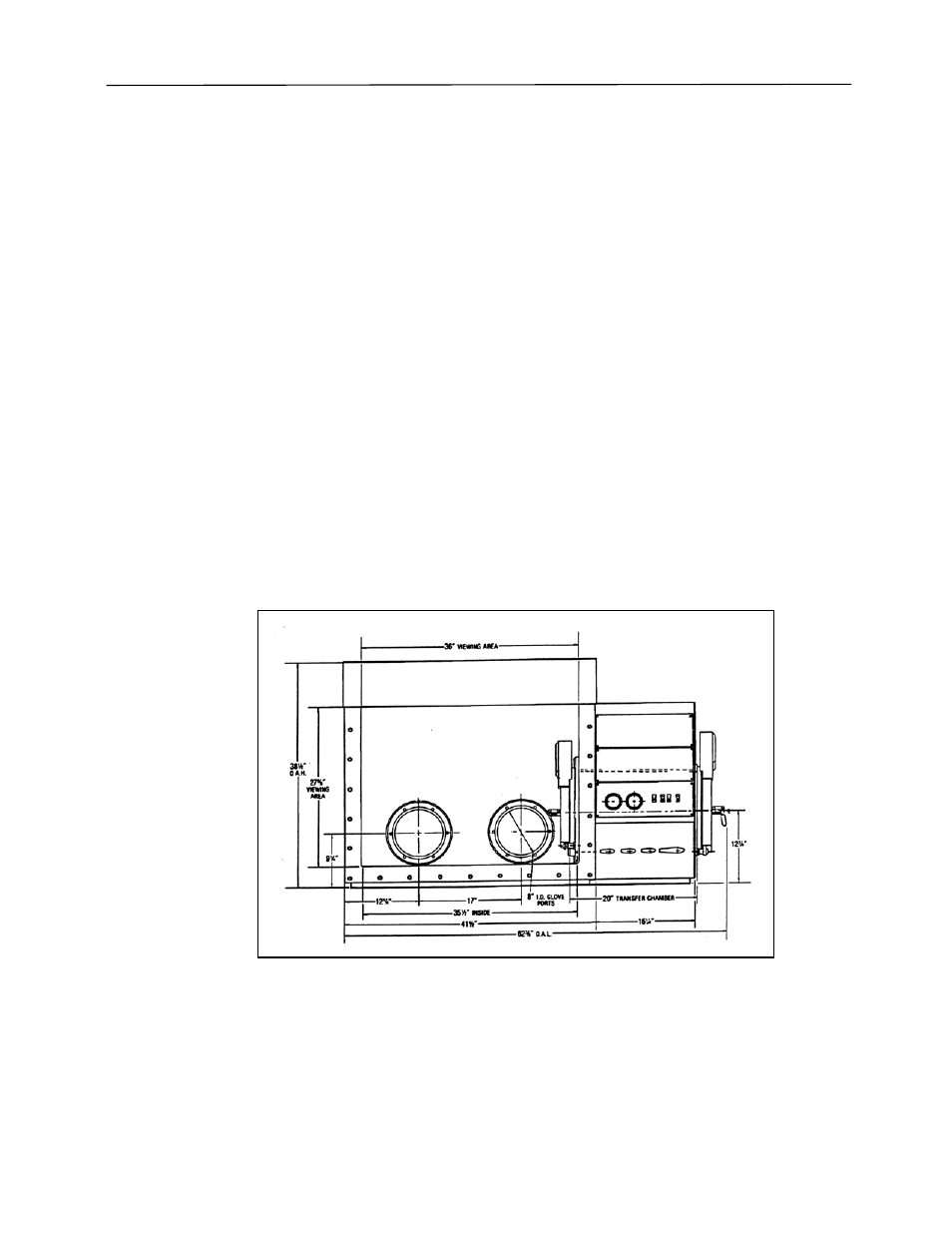

Figure 1
