Page 32

ROUTINE MAINTENANCE

Checking Door Latch Tension

Closing the latch handle should require some firm force, indicating compression of the

rubber door seals. Seal compression and latching force can be adjusted as follows:

• First close and latch the door.

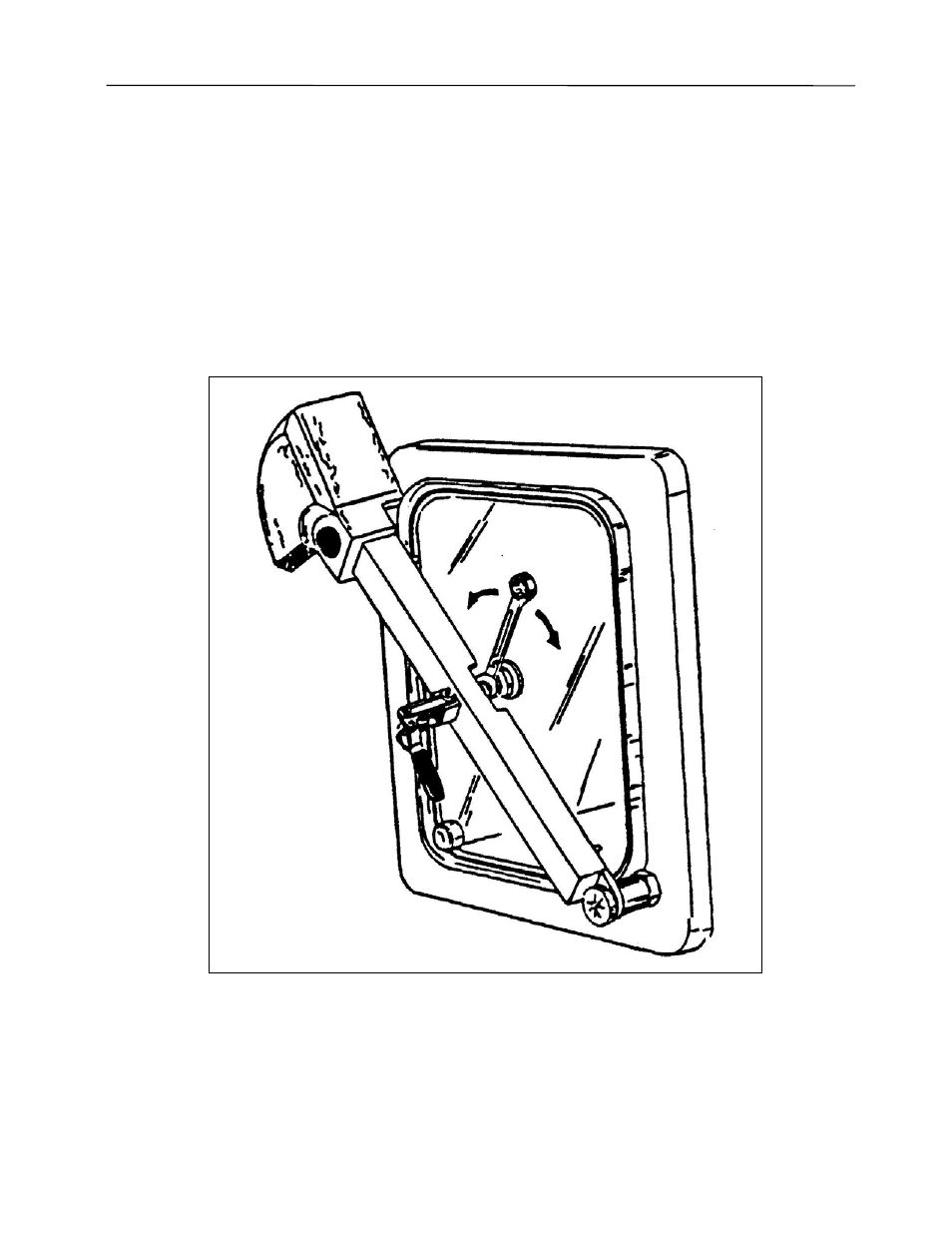

• Then using a _ inch open-end wrench, turn the door adjustment screw (located between the

door and the latch bar) clockwise to increase the seal compression and latching force. Turn
screw counterclockwise to decrease compressions. Refer to the illustration below:

Figure 18
