INSTALLATION
18
Models 5070000 and 5070100

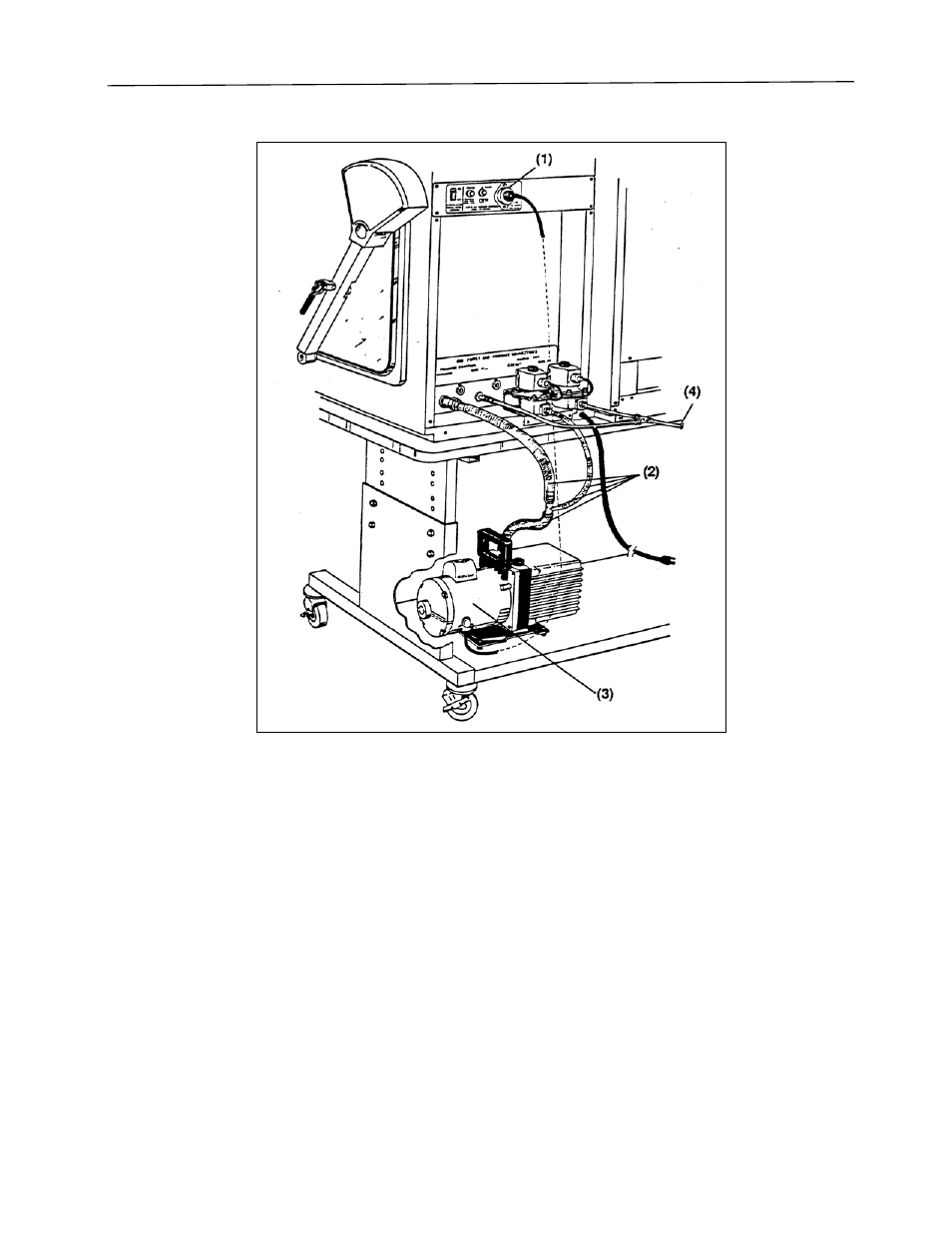

Figure 9
1. Electrical Receptacle for Vacuum Pump. Automatically controlled by pressure control
module.
2. Vacuum Connection Kit. Labconco Catalog No. 5060600.
3. Vacuum Pump. Labconco Catalog No. 1467700 (190 liters/minute) or Catalog No.
1472100 (113 liters/minute) or their equivalents.
4. Connection to Inert Gas Supply. Regulated to 15 – 20 psi.
Complete Connection Kit, Vacuum and Gas (includes 5060600). Labconco Catalog No.
5060900. See in Accessories Section for list of parts provided in kits.
