Labconco XVS Ventilation Stations 4865060 User Manual

Page 26

Chapter 4: Performance Features and Safety Precautions

Product Service 1-800-522-7658

5. Side Entry Air Foils allow turbulence free air to enter the enclosure

from the sides and allow clean air to sweep the interior walls of the
enclosure.

6. Ergonomic Slope provides maximum visibility, and comfort reduces

glare, thereby minimizing operator fatigue.

7. Internal Depth of 23" provides necessary depth to support modern

balances and other auxiliary equipment without extending outside the
enclosure or resting on the lower air foil.

8. Two Enclosure Heights and Depths available as standard enclosures

in 22.75" or 32". Taller height XVS enclosures are typically used for
pipet operations, titration or taller auxiliary equipment. Unit depth of
29" is available on 2' through 8' enclosures and 35.5" depth is
available on 5', 6', and 8' enclosures.

9. Unique Flush Sash has a wiping seal to contain contaminants and

features a spring-loaded latch or gas spring for loading auxiliary
equipment. The sash pivots down for normal operation.

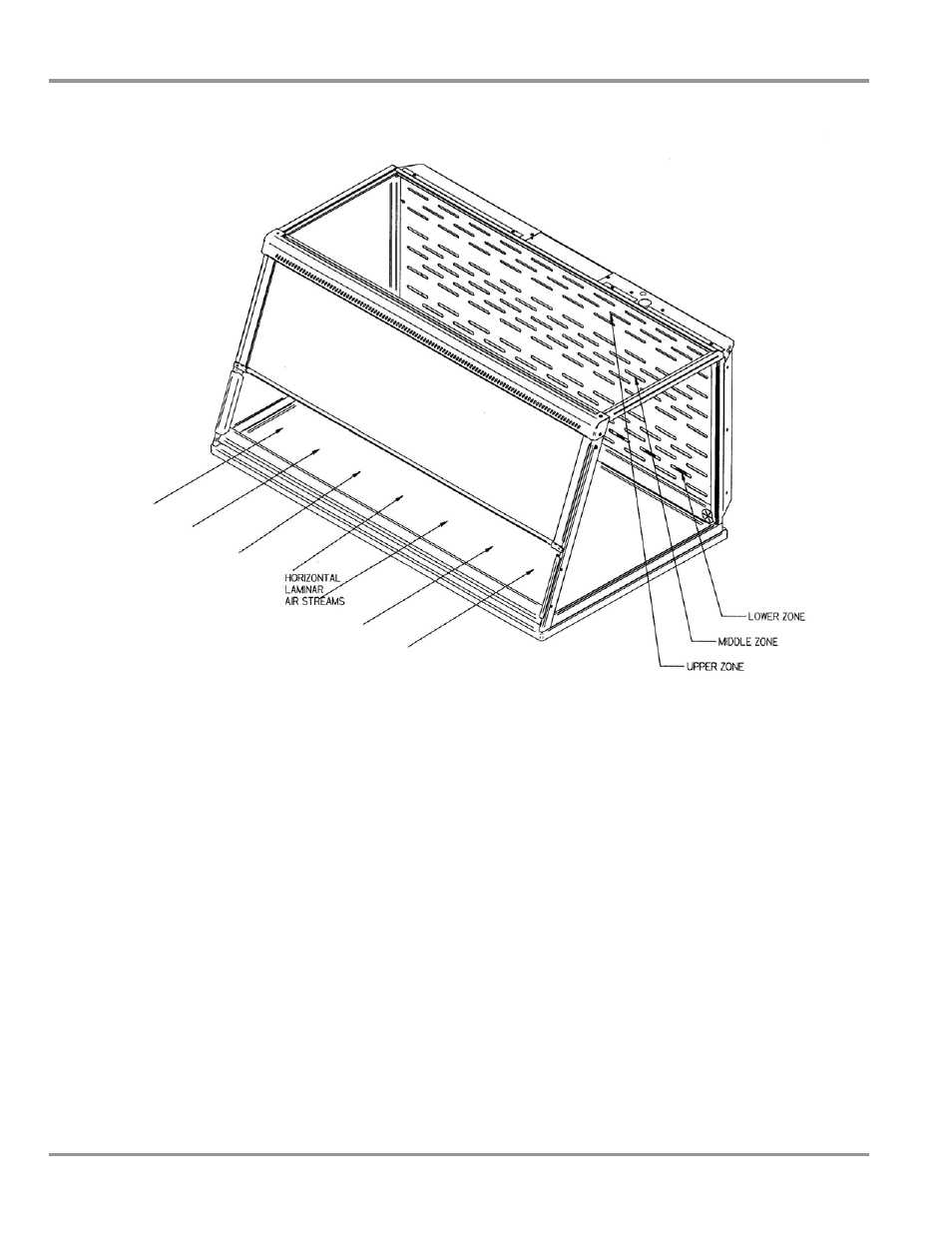

Figure 4-5
