Chapter 3: Getting Started

Product Service 1-800-522-7658

Work Surface Specifications

The work surface should be smooth, rigid, and durable, such as a chemically
resistant epoxy resin or stainless steel. The surface should be non-porous and
resistant to the acids, solvents and chemicals used in conjunction with the
XPert or XVS enclosure. The work surface should also contain a dished
recessed area for containing primary spills.

Work Surface and Vented Enclosure Installation

1. Level the base cabinets and the work surface. Work surface should be

placed flush with the front of the base cabinet as shown in Figure 3-1.

2. Position the work surface in its intended location and with the front of

the work surface, (wide flange or spill trough), towards you.

3. Secure the work surface to the base cabinet with a structural adhesive

or silicone sealant.

4. Insert the supplied mounting screws in the four holes for epoxy work

surfaces. For stainless steel work surfaces use #10-24 x 3/8" hex
machine screws. (Labconco P/N 1885806). Allow a minimum of 1/8"
clearance under the head of the screw for positioning the enclosure.

5. Place the enclosure on the work surface and slide the rear flange and

front air foil flanges under the mounting screw heads.

6. Tighten the four screws to complete the installation.

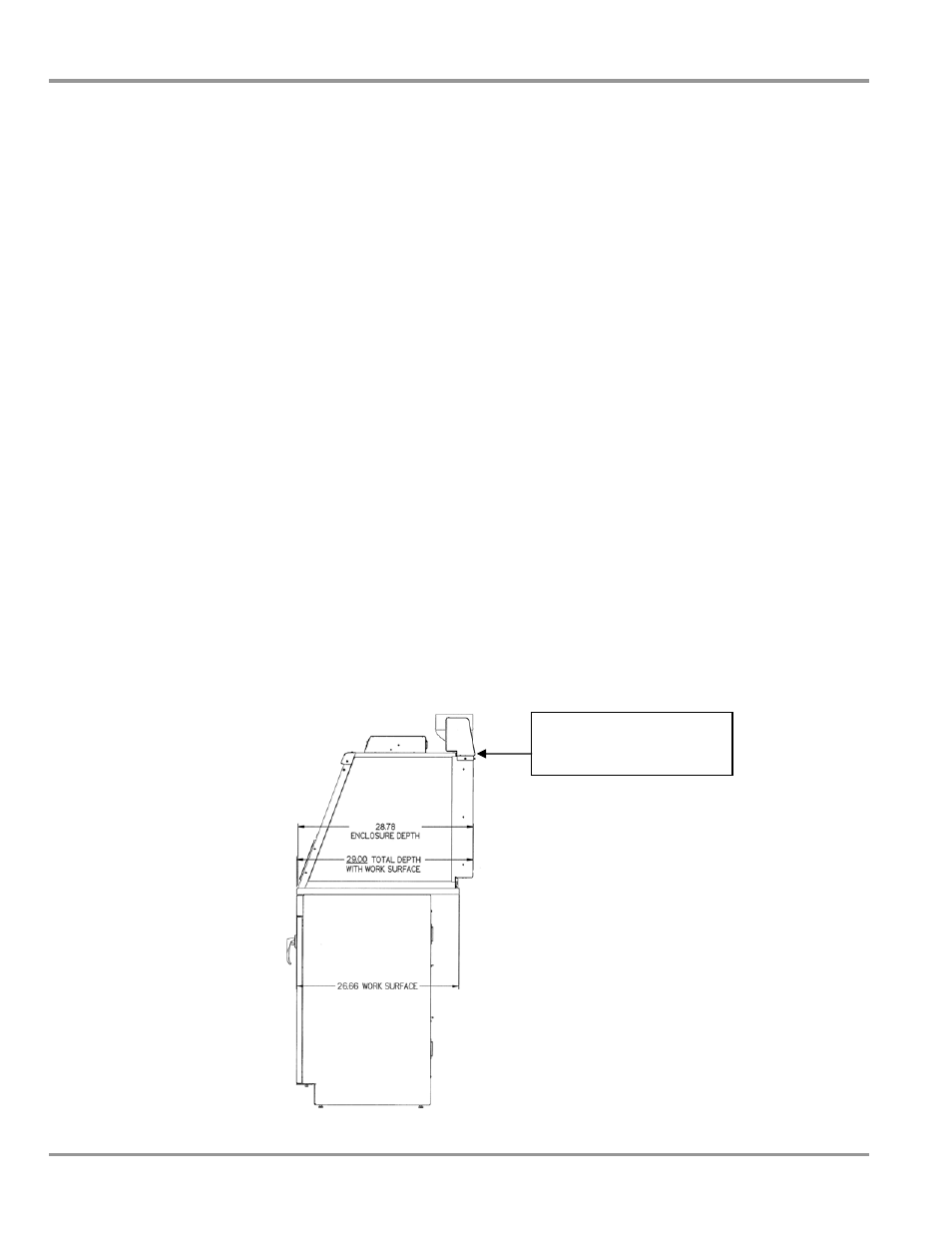

Figure 3-1

Side View of Typical Installation

Airflow monitor moved
forward per Chapter 6.
