Chapter 3: Getting Started

Product Service 1-800-522-7658

Connecting to the Vented Enclosure Exhaust
System

WARNING: The weight of the exhaust ductwork system must be
supported independently of the enclosure superstructure or damage may
occur.

The exhaust system should be installed by a qualified HVAC contractor.
The exhaust connection on the 2' through 6' enclosures has been designed to
accept a 2" x 10" (5.1cm x 25.4cm) nominal transition adapter. The 8'
enclosure has two 2" x 10" connections. See Chapter 7 for ordering
accessory transition adapters. Labconco manufactures transition adapters for
either top or bottom exhaust and for both 5" dia. hose or 6" dia. duct. Review
Chapter 2 for remote blower and FilterMate Portable Exhauster exhaust
prerequisites and review Chapter 7 for ordering blower exhaust equipment.
For your convenience several exhaust options are shown in Figures 3-2, 3-3,
3-4 and 3-5. Consult Labconco Customer Service should you require help
sizing your blower for the exhaust volume and system static pressure loss.
To ensure compatibility, the selected exhaust duct material should match the
enclosures, procedures and chemical applications.

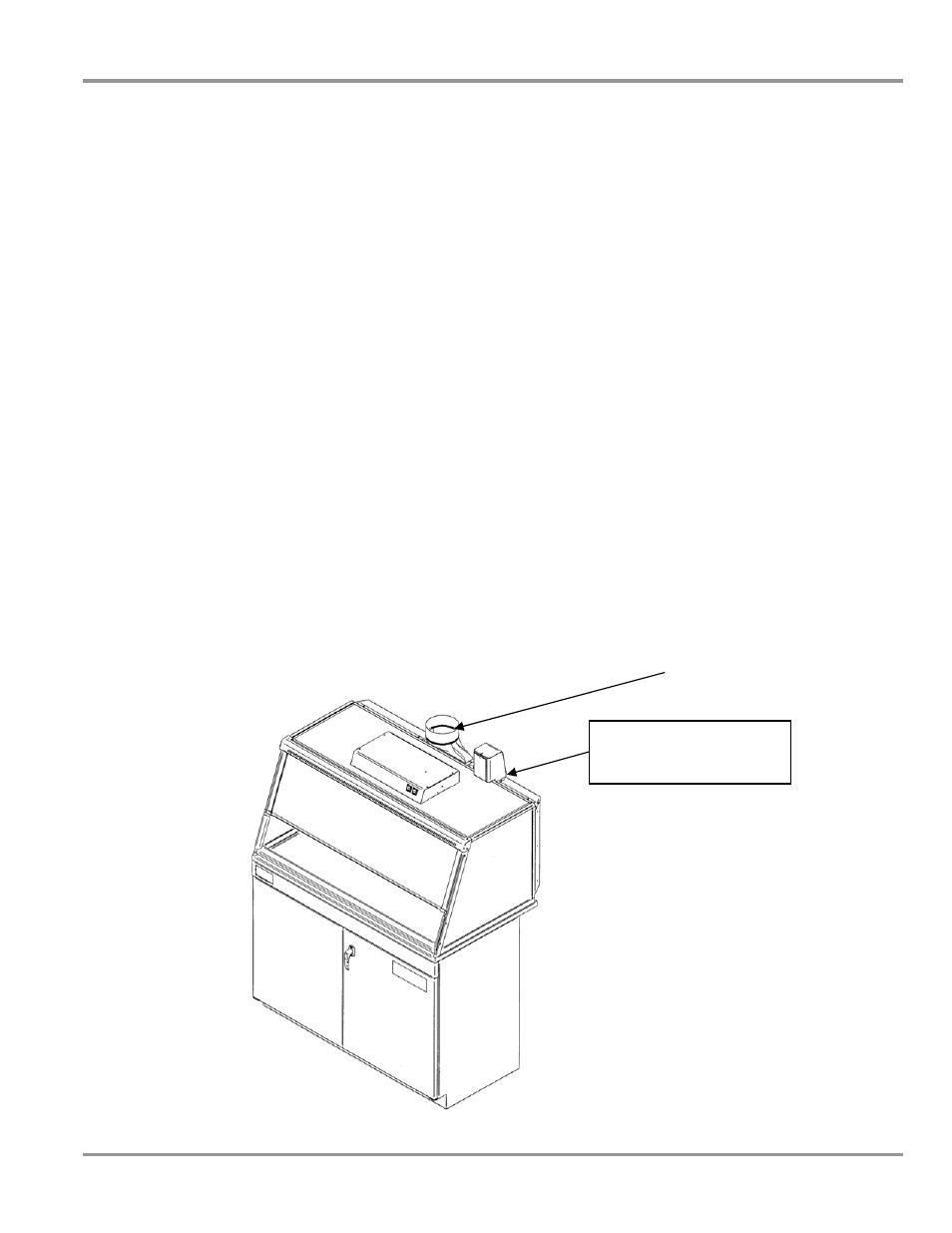

Figure 3-2 Top Connection to Outside Exhaust

6.03" ID Exhaust
Transition Adapter

Airflow monitor moved
forward per Chapter 6.
