www.desatech.com 118992-01L 8
ASSEMBLy
Continued
18. Slide support brackets over guard rails as
shown in Figure 11. Make certain brackets
curve downward.
19. Insert guard rails into holes of support
pillars (see Figure 11). Guard rails will go
completely through support pillars. Attach
nut (G) to ends of guard rails as shown in
Figure 11.
20. Attach support brackets to bottom deflec-
tor using 2 screws (F) each as shown in
Figure 11.

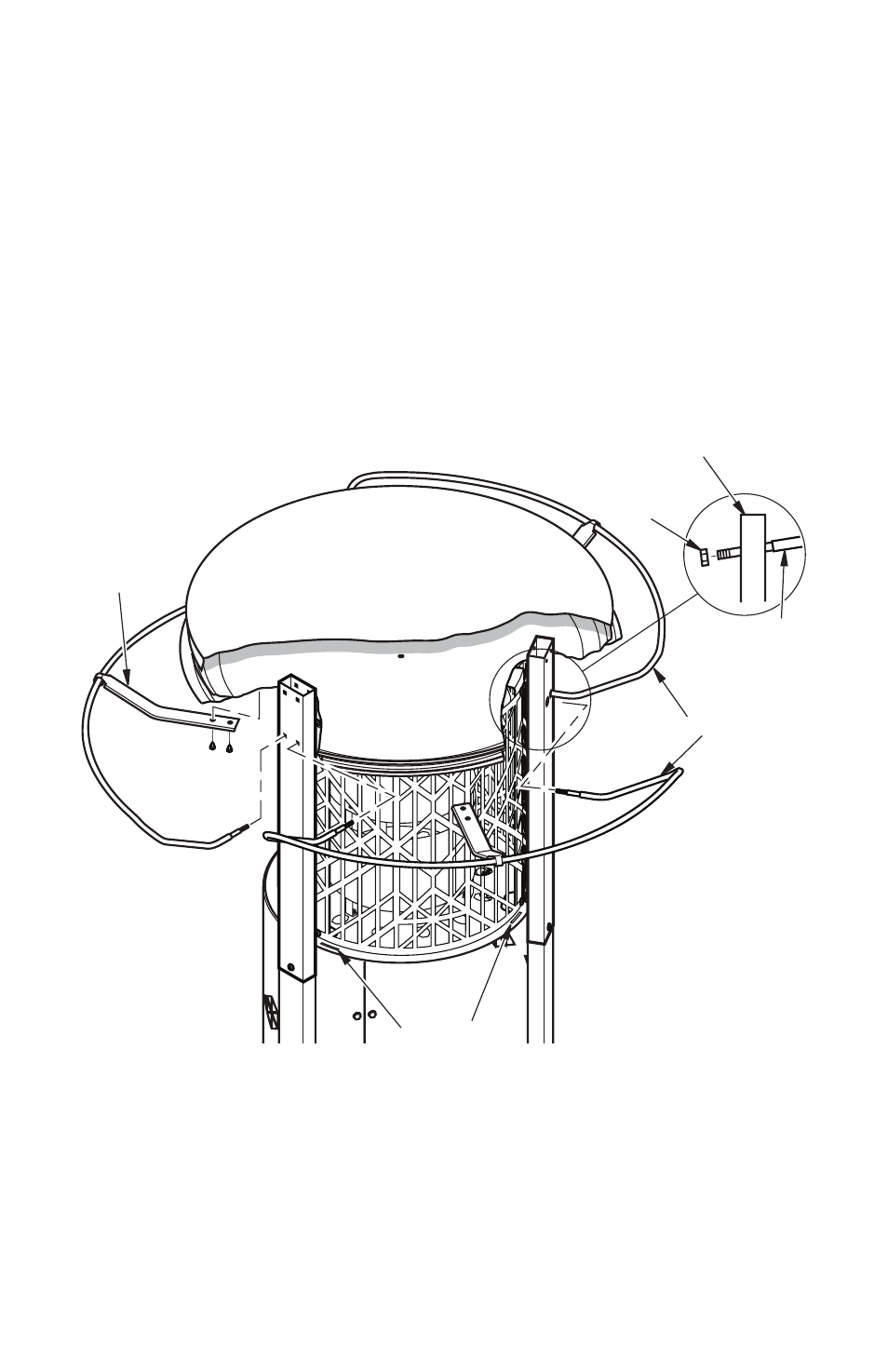

Figure 11 - Guard Rail Assembly (top and deflectors cut away for clarity)
Guard
Rail
Slots for
Hanging
Door Panel
21. Connect black ignitor wire and electrode
located underneath burner support plate
to electronic ignitor. Install battery in
ignitor as shown on page 14.
22. Place ring retainers ("S" hooks) through
holes in burner support place as shown
in Figure 7, page 6.
23. Connect regulator to gas cylinder, see
Operation, page 9. Gas cylinder will set
inside of cabinet assembly.
24. Check for leaks. See Checking for Leaks
page 9.
25. Hang table door panel from slots in burner
support plate to cover inside of heater.
Support
Pillar
Nut
Guard
Rail
Support
Bracket
