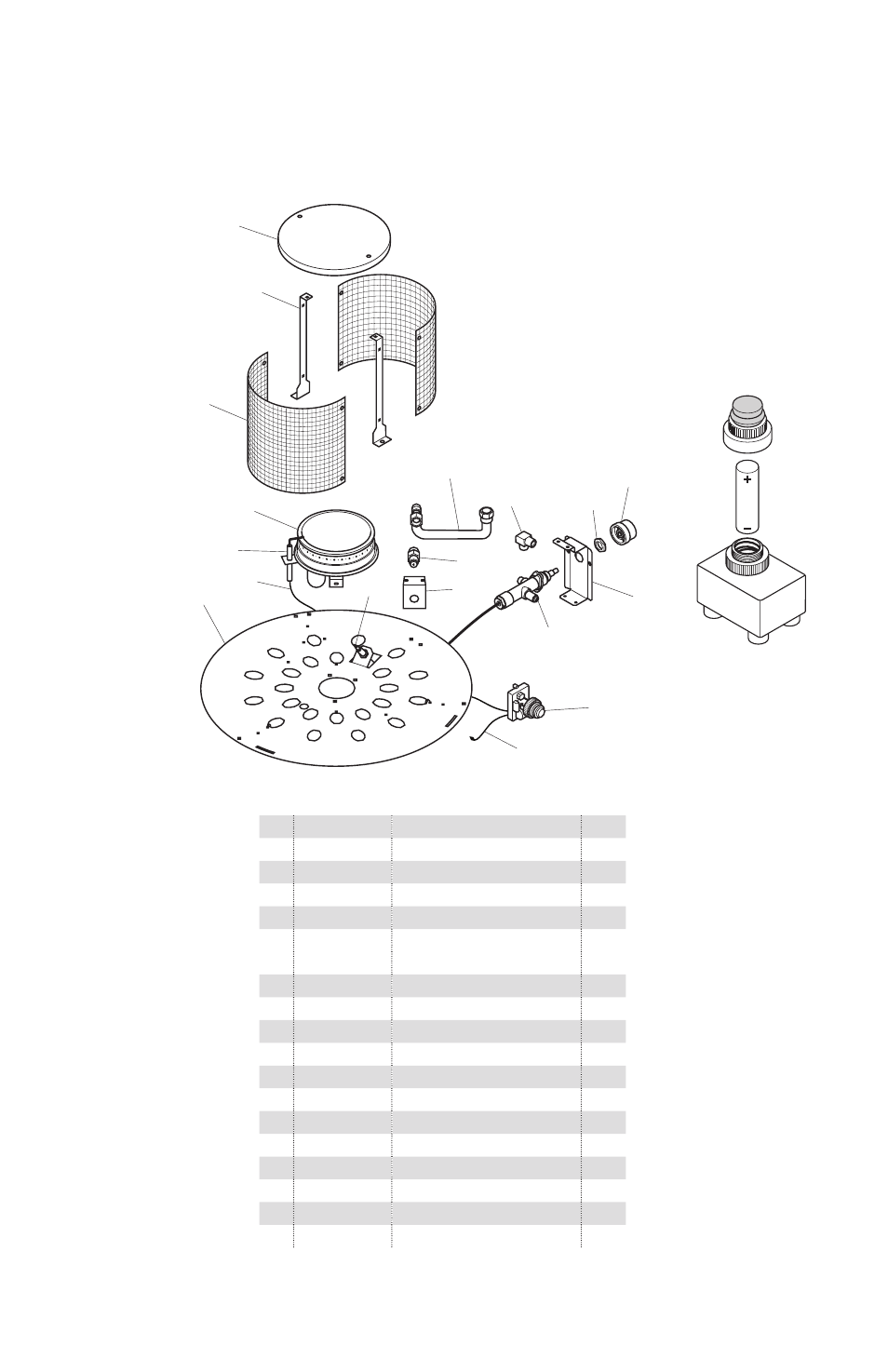

PARTS
BURNER
MODELS TD101, TD103, TD109 AND TD111
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Replacement Parts, page 15.
KEY
NO. PART NO.
DESCRIPTION qTY.
1 119281-01 Emitter Cap 1
2 119280-01 Emitter Bracket 2
3 118870-01 Emitter Screen 2
4 118864-01 Table Burner 1
5 118852-01 Burner Support Plate 1
6 119104-02 Thermocouple 1
100898-01 Thermocouple Nut 2
7 119107-01 Ignitor Electrode 1
8 119106-01 Injector 1
9 118869-01 Burner Flex Line 1
10 098508-01 Valve Nut 1
11 120575-01 Knob 1
12 118867-01 Valve Mounting Plate 1
13 120413-01 Ignitor Wire 1
14 118868-01 Control Valve 1
15 111435-02 Electronic Ignitor 1
16 119557-01 Elbow Fitting 1
17 119610-01 Injector Bracket 1
18 119611-01 Ground Wire 1
1
2
3
4
6
8
17
9
10
11
12
14
15
18
7
5
13
16
Install Battery
According To
This Illustration
AA
Battery
Positive
UP
CAUTION: Do
not disposed of in
fire. Batteries may
explode or leak, and
cause burn or injury.
