www.desatech.com 118992-01L 7
Deflector

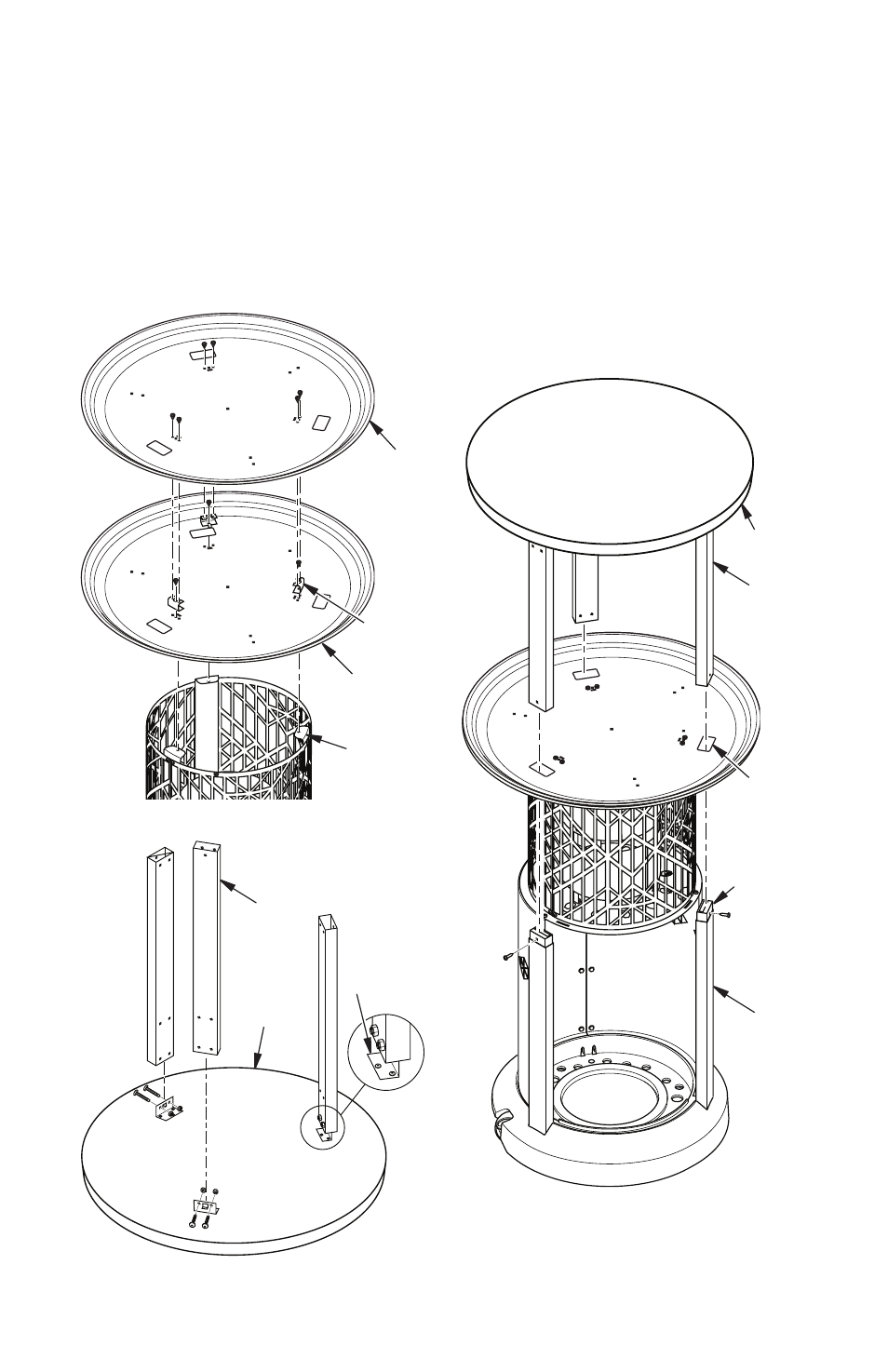

Figure 8 - Deflector Assembly
Deflector
Bracket
Deco
Grate
Pillar
14. Place one deflector over deco grate
pillars. Attach deflector and brackets to
pillars with 1 screw (C) through each of
the 3 brackets. See Figure 8.
15. Place second deflector over first deflector.
Attach deflector to brackets with 2 screws
(C) through the top of each bracket (see
Figure 8).
Figure 9 - Table Top Assembly
Support
Pillar
Table Top
ASSEMBLy
Continued
Figure 10 - Table Top Installation
Table Top
Deflector
Opening
Support
Pillar
Support
Pillar
Pillar
Support
Connector
16. Lay table top upside down on a blanket or
piece of cardboard to prevent scratching.
Making sure holes in support pillars are
oriented as shown in Figure 9, install 3
remaining table support pillars as shown.
Attach pillars to table top with 2 screws (D)
and 2 nuts (E) each.
17. Turn table support assembly right side up.
Slide support pillars through openings in
deflector assembly (see Figure 10). Posi-
tion top support pillars over pillar support
connectors. Secure each set with 1 screw
(C) each (see Figure 10).
Bracket
