www.desatech.com 118992-01L 5
Hardware packet contains the following items
shown on pages 12 through 14:
Electronic Ignitor (1), Ignitor Wire (1), Ground
Wire (1), Knob (1), Propane Tank Retention
Chain (1), Retention Hook (2), and AA Bat-
tery (1).
Parts are referenced by designated letter
throughout assembly instructions. Hardware
packet contains the following (quantity used
in parenthesis):
Description Part Number
A 1" Screw (6) 119619-04
B 5 mm Washer (6) 119600-02
C 3/8" Screw (59) 119620-02
D 1 1 /
2
" Screw (6) 119619-05
E 5/16" Hex Nut (6) NPC-3C
F 3/8" Machine Screw (6) 119742-01
G 10 mm Hex Nut (6) 119743-01
ASSEMBLy
Continued
1. Locate table heater base and 3 lower table
support pillars with holes on one side only.
Making sure holes in pillars are oriented as
shown in Figure 3, slide support pillars into
base and attach with screws (A) and wash-
ers (B) through bottom 2 holes as shown.
2. Position lower table panel and table control
panel onto base assembly as shown in Figure
4. Make certain lower table panel is on side
of base with wheels. Using bottom 3 sets of
holes only, attach panels to support pillars
with 12 screws (C) (see Figure 4). Attach
ignitor ground wire with 1 screw as shown in
Figure 4 (ignitor installed in step 4).
3. Top sets of screws (C) will insert through
panels, through support pillars, then into
pillar support connectors as shown in
Figure 4 (6 screws). Make sure pillar sup-
port connectors are oriented as shown in
Figure 4. The side of connectors with one
hole should be facing outside heater and
hole should be at the top. For support con-
nectors closest to front opening, second
screw will only install through panels and
support connectors. Second screw will
secure connector (see Figure 4).
4. Install electronic ignitor through control
panel as shown in Figure 4. Screw re-
tainer ring and ignitor cap on from outside
panel. Attach ignitor ground wire to ignitor.
A
B
C
E
D
F
G

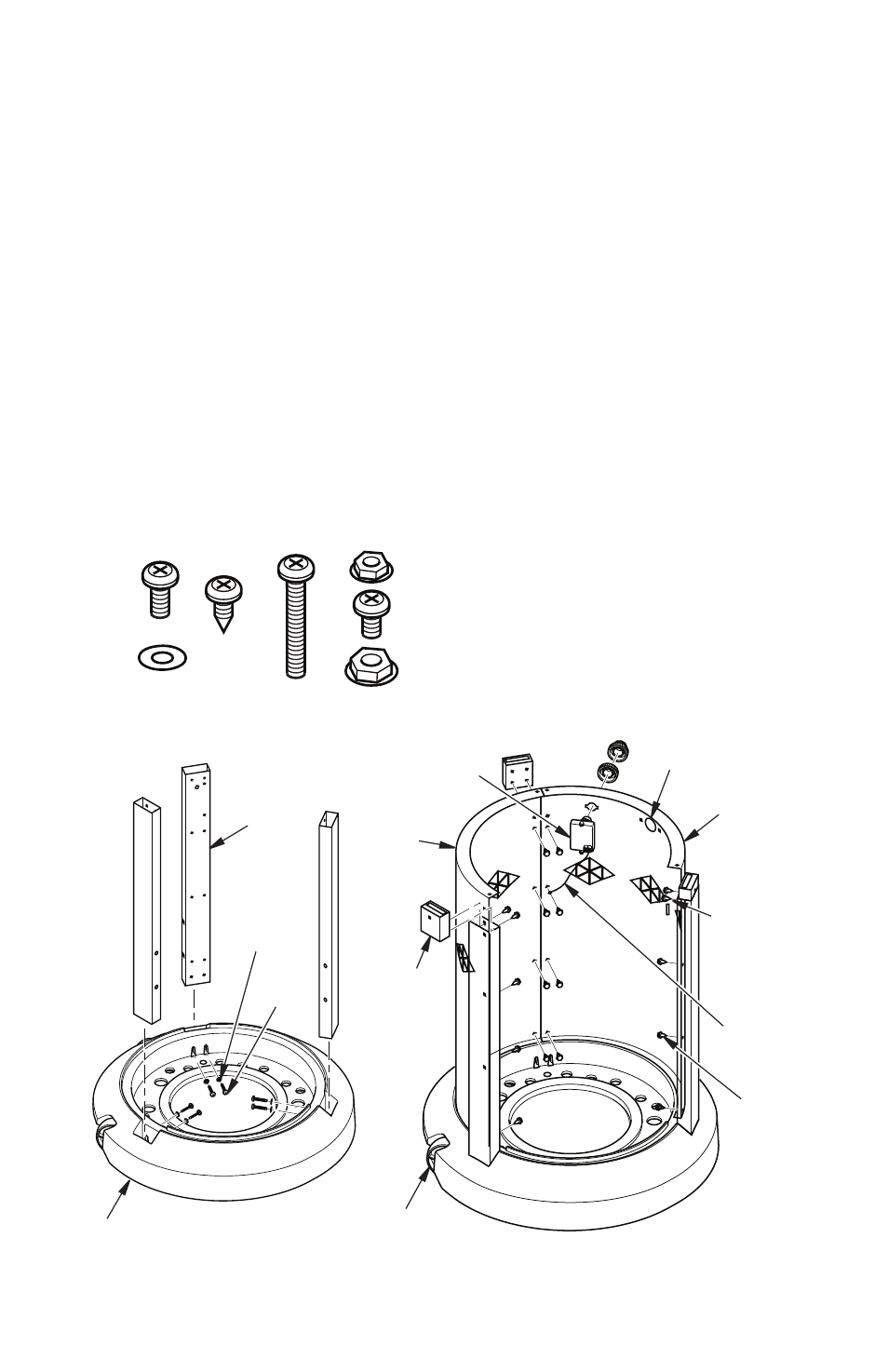

Figure 3 - Installing Support
Pillars into Base
Support
Pillar
Heater Base
Figure 4 - Attaching Side Panels and Ignitor
Lower
Table
Panel
Wheel
Screw
(A)
Electronic
Ignitor
Hole for
Control Valve
Pillar
Support
Connector
Table
Control
Panel
Screw Installs
Through Pillar
Support and
Connector
Only
Washer (B)
Ignitor
Grounding
Wire
Screw (C)
