USER HANDBOOK
5-4
5.2.3
power supply connection,
an Ethernet connection for communication over the network and a
The connector locations are illustrated in Fig. 5-4.

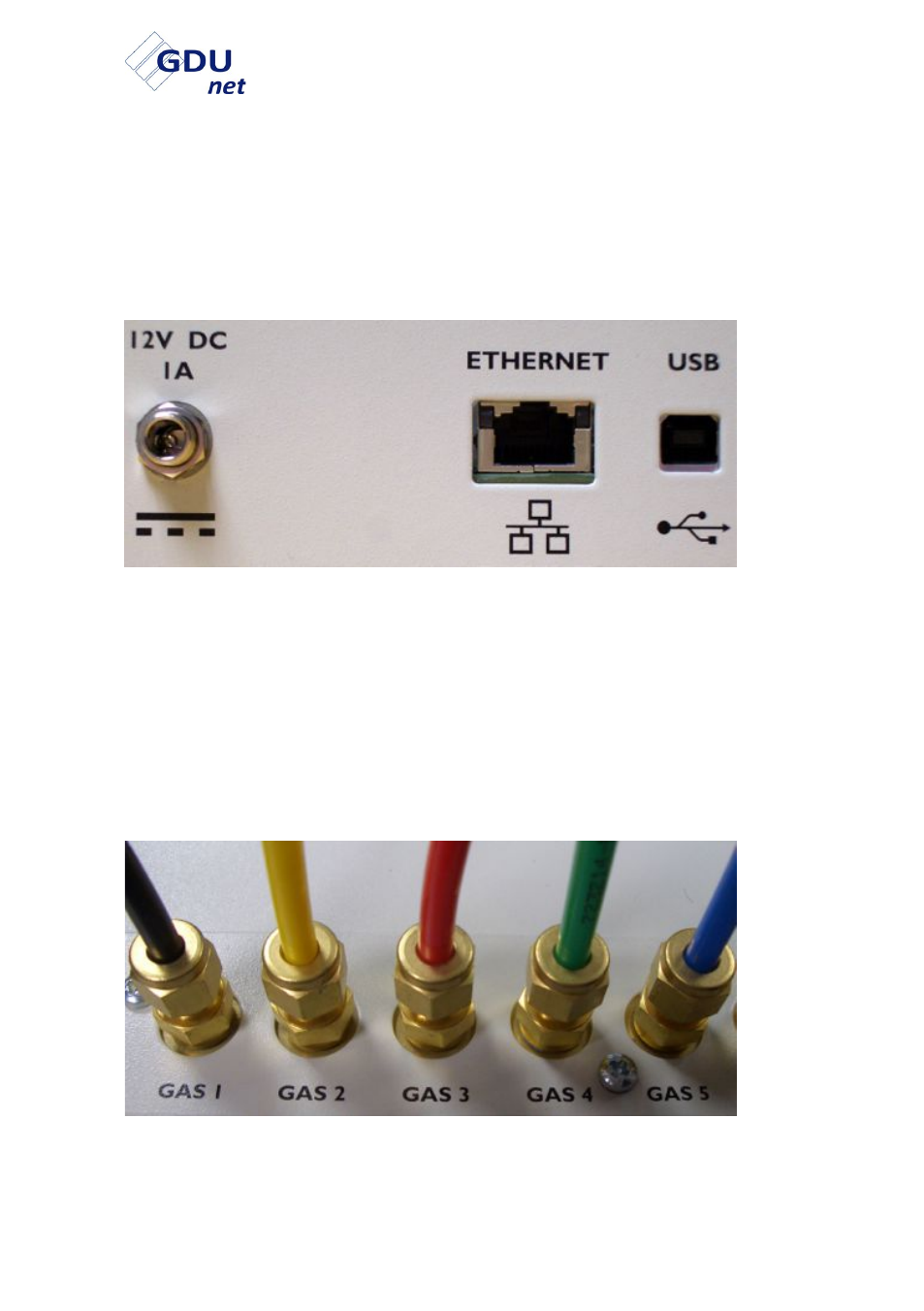

Fig. 5-4 External Connectors
5.2.4 Gas Connections
net
for testing and calibrating instruments are connected to the gas
inlet adaptors as shown, in Fig. 5-5, below.
Fig. 5-5 Gas inlet adaptors
