Page 44

USER HANDBOOK
3-16

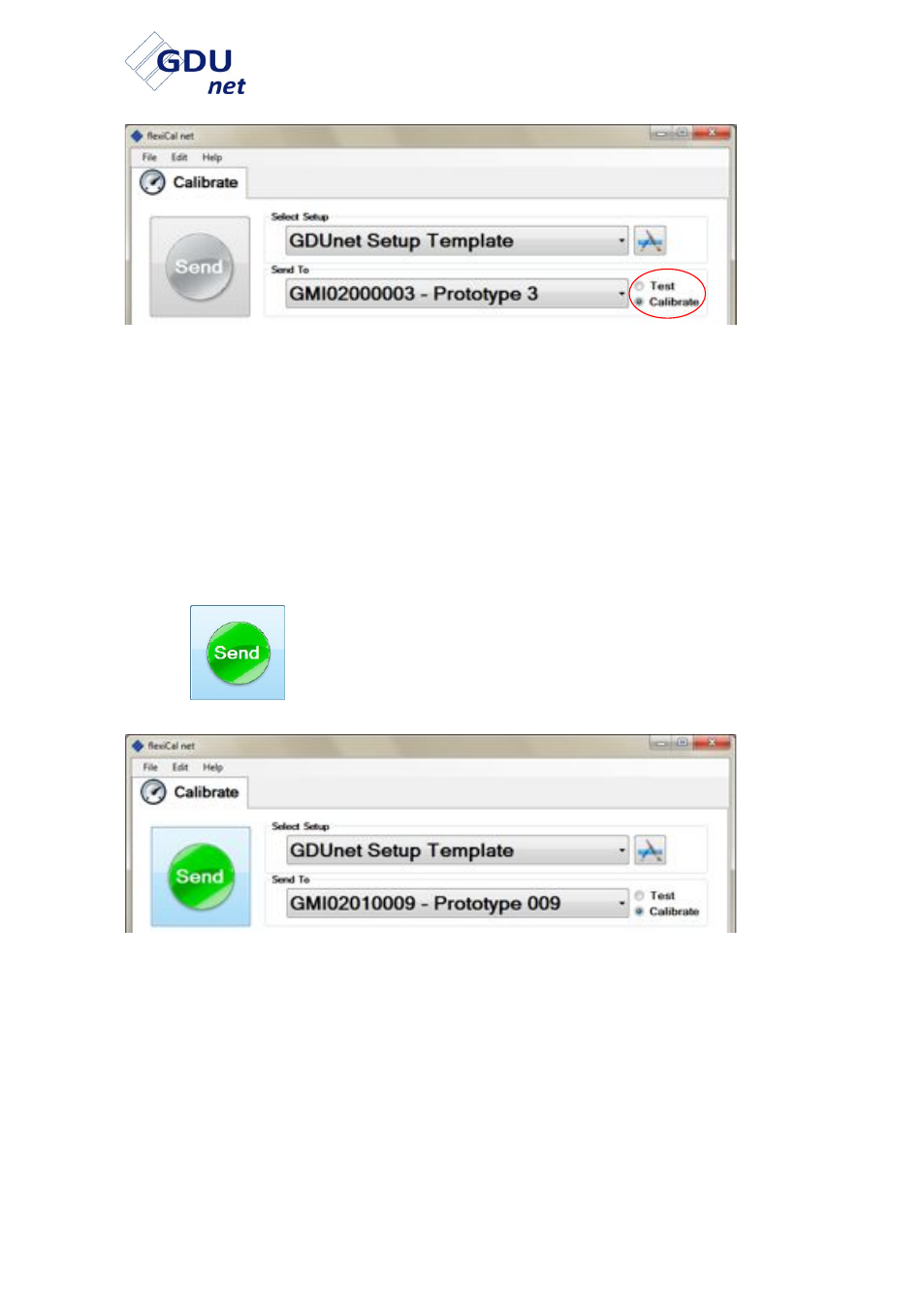

Fig. 3-18 Test or Calibrate
3.3.9 Test / Calibrate Instrument
In this example, an instrument is the subject of a calibration
procedure using the pre-loaded GDUnet Setup Template and
net GMI02010009 - Prototype 009.
When you are ready to send the setup across the network,
select
GMI02010009
- Prototype 009, as illustrated in Fig. 3-19.
Fig. 3-19 Send Calibration File
net
net, as illustrated in Fig. 3-20.
