Heath Consultants Gas Delivery Unit (GDUnet) User Manual
Page 101

6-7
TEST / CALIBRATION EXAMPLE

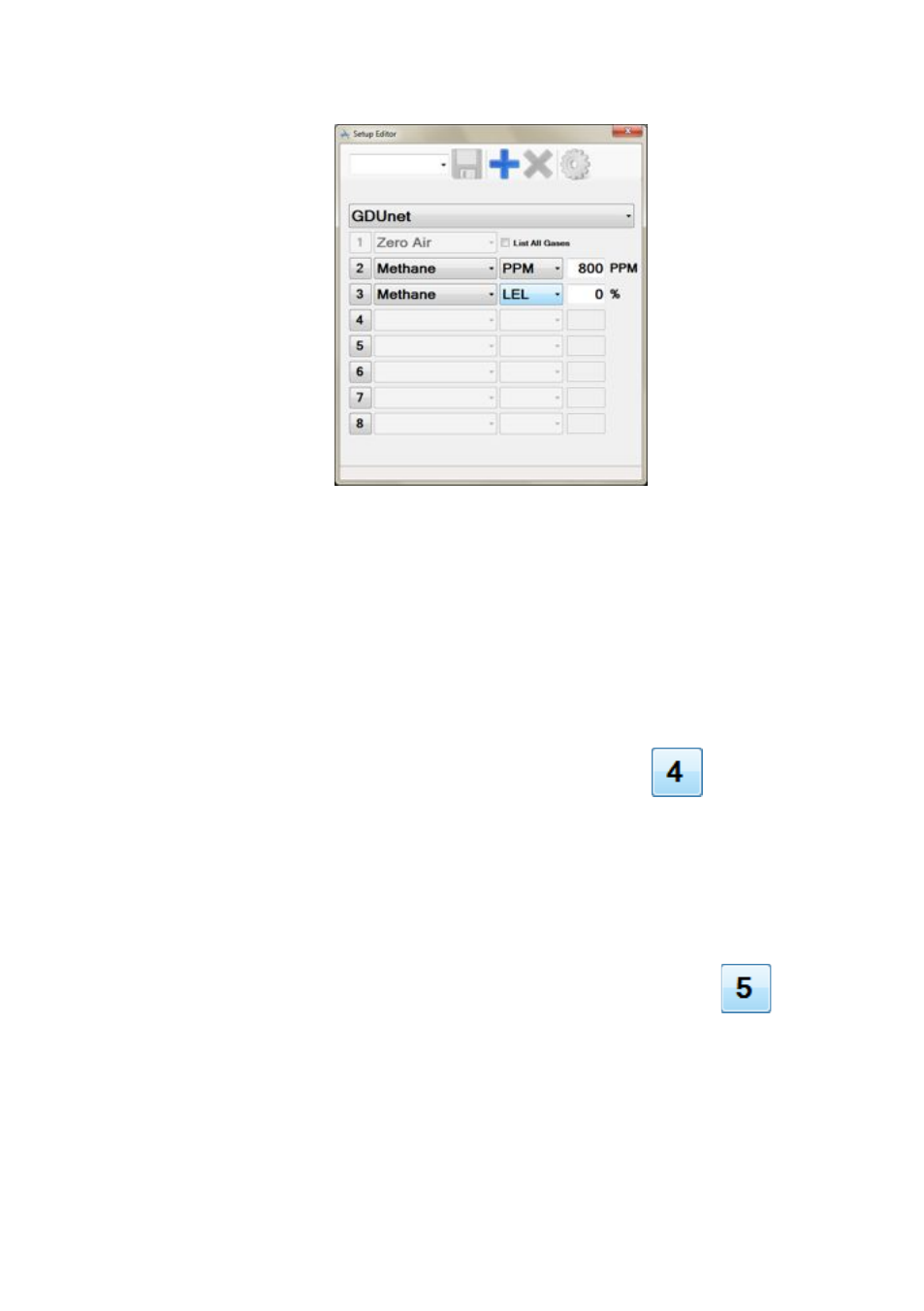

Fig. 6-9 Setup Continuation
11.
corresponding value should be entered in ‘%’ window.
The value on the gas cylinder label in this example is 50%.
To enter this (50) value, highlight existing (0) value then type
new value in window.
12.
to display
gases drop down list, as illustrated in Fig. 6-6.
To enter this (100) value, highlight existing (0) value then
type new value in window.
13. To specify gas No.5 (0 to 1000ppm CO), select
to
display gases drop down list, as illustrated in Fig. 6-6.
value on the gas cylinder label in this example is 500 PPM.
To enter this (500) value, highlight existing (0) value then
type new value in window.
