CONDUCTIVITY PROBES
73mm
2.87"
52mm
2.04"
1" NPT
142mm
5.60"
HI 7635 In-line Conductivity Probe
HI 7635 is a one piece, molded conductivity probe with pipe threads
(1" NPT) at both ends.
This allows the probe to attach to an in-line system, and to be used
in conjunction with the HI 8936 conductivity transmitter.
The HI 7635 uses a 4-ring potentiometric measuring method. This
method is highly accurate and requires very little maintenance.
The construction of the housing is rugged, fiber-reinforced polypropy-
lene.
The maximum working pressure of this unit is 5 bar (72.5 psi).
Do not use in systems where the temperature exceeds 80°C (176°F).
HI7635

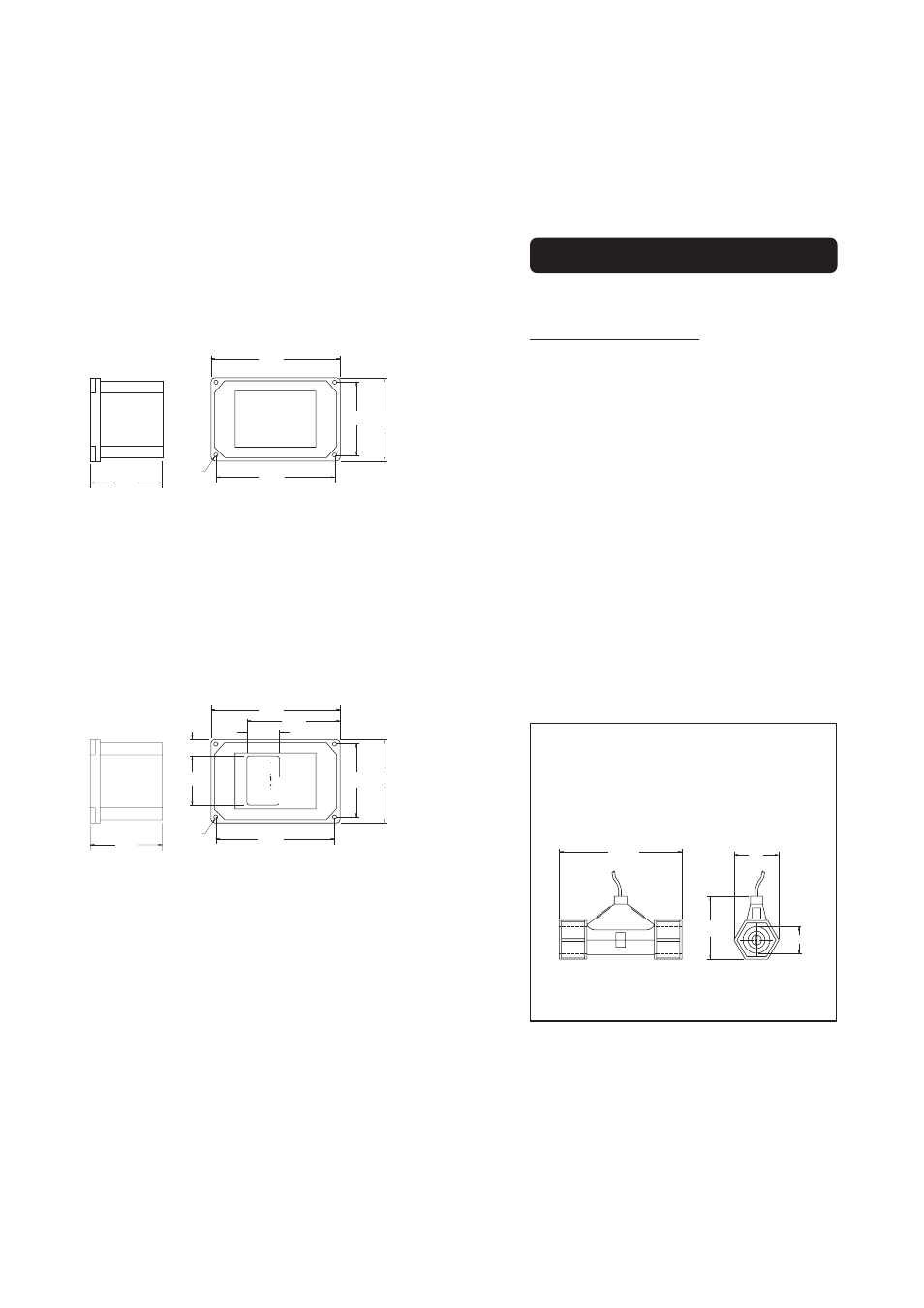

MECHANICAL DIMENSIONS OF
HI 8936A, HI8936B, HI 8936C, HI 8936D
MECHANICAL DIMENSIONS OF
HI 8936AL, HI8936BL, HI 8936CL, HI 8936DL
110mm
4.33"
100mm
3.94"
H
I
8
6
1
4
165mm
6.50"
155mm
6.10"
4 x 4.3mm
4 x 0.17"
90mm
3.54"
110mm
4.33"
100mm
3.94"
H
I
8
6
1
4
L
165mm
6.50"
155mm
6.10"
90mm
3.54"
4 x 4.3mm
4 x 0.17"
126mm
5.00"
45mm
1.77"
24mm
0.94"
58mm
2.28"
