Genesis Digital™ HDMI Matrix Switches

7

If the matrix needs to be controlled via RS-232, plug the controller (or

PC) to the DB9 Female port on the rear of the matrix. Make the

connection to the PC’s DB9 Male connector using a straight-through

DB9 MF cable.

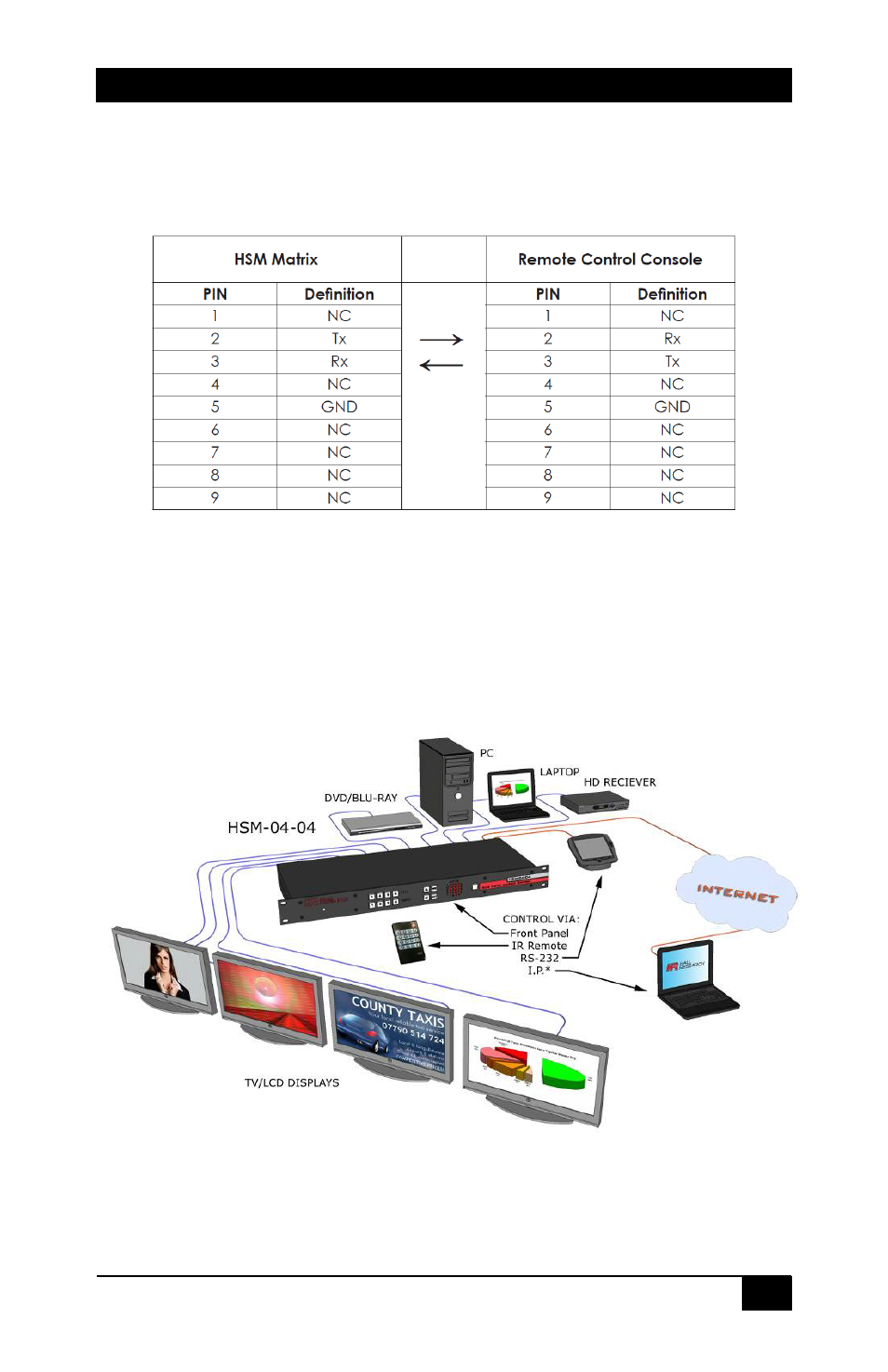

Table 1 – RS-232 Control Port Pin out

The HSM matrices are available with IP network port (HSM-I- …).On these

units there is an RJ45 (10/100 Base-T) for connection to your Local Area

Network (LAN). These units feature a user friendly and powerful built-in web-

server that allows control of the matrix via any browser for control using web

enabled controllers.

2.2 Connection Block Diagram

Figure 6 – Connection Block Diagram
