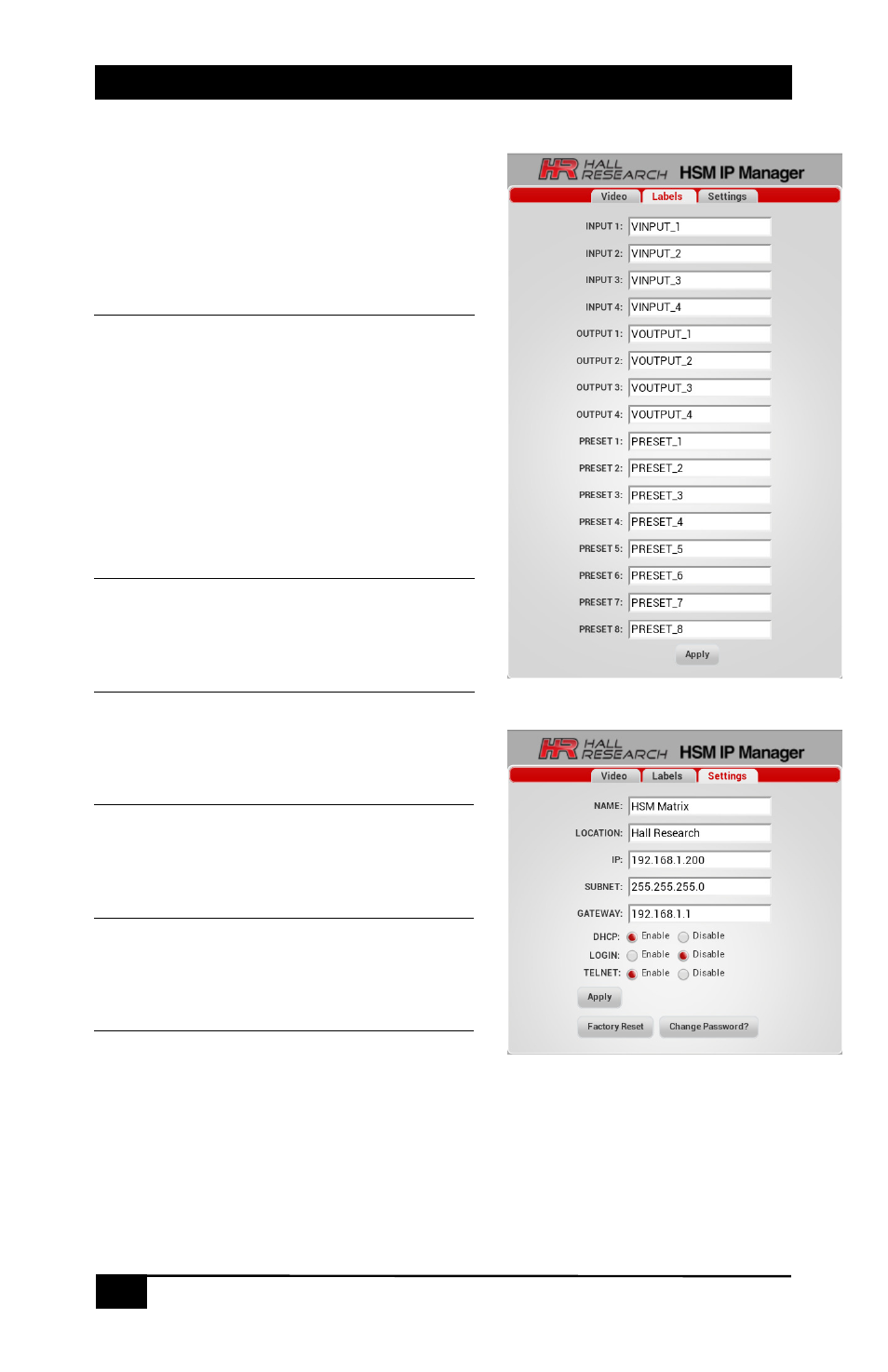

Figure 14- Labels Tab
Figure-15 Settings Tab
5.2.2 Labels Tab
The user can assign descriptive names inputs,
outputs and presets on this tab.
Label names are limited to 16 characters long
including white space, and can have special
symbols.
Apply Button
Click this button to save your changes after
changing the names.
5.2.3 Settings Tab
Settings tab helps user to change IP address,
enable/disable DHCP, enable/disable
password, change current password and load
factory default settings whenever necessary.
Name
User defined name for this matrix. The name
can be sixteen (16) characters including any
white space and special characters.
Location
User defined location of this matrix. Location
can be twenty (20) characters long including
white space and special characters.
IP
Displays the current IP address of this matrix
and if DHCP is disabled, allows the user to
enter a new IP address.
Subnet
Displays the current SUBNET MASK address
of this matrix and if DHCP is disabled, allows
the user to enter a new subnet mask.
Gateway
Displays the current GATEWAY address of
this matrix and if DHCP is disabled, allows the
user to enter a new gateway address.
