User’s Manual
16

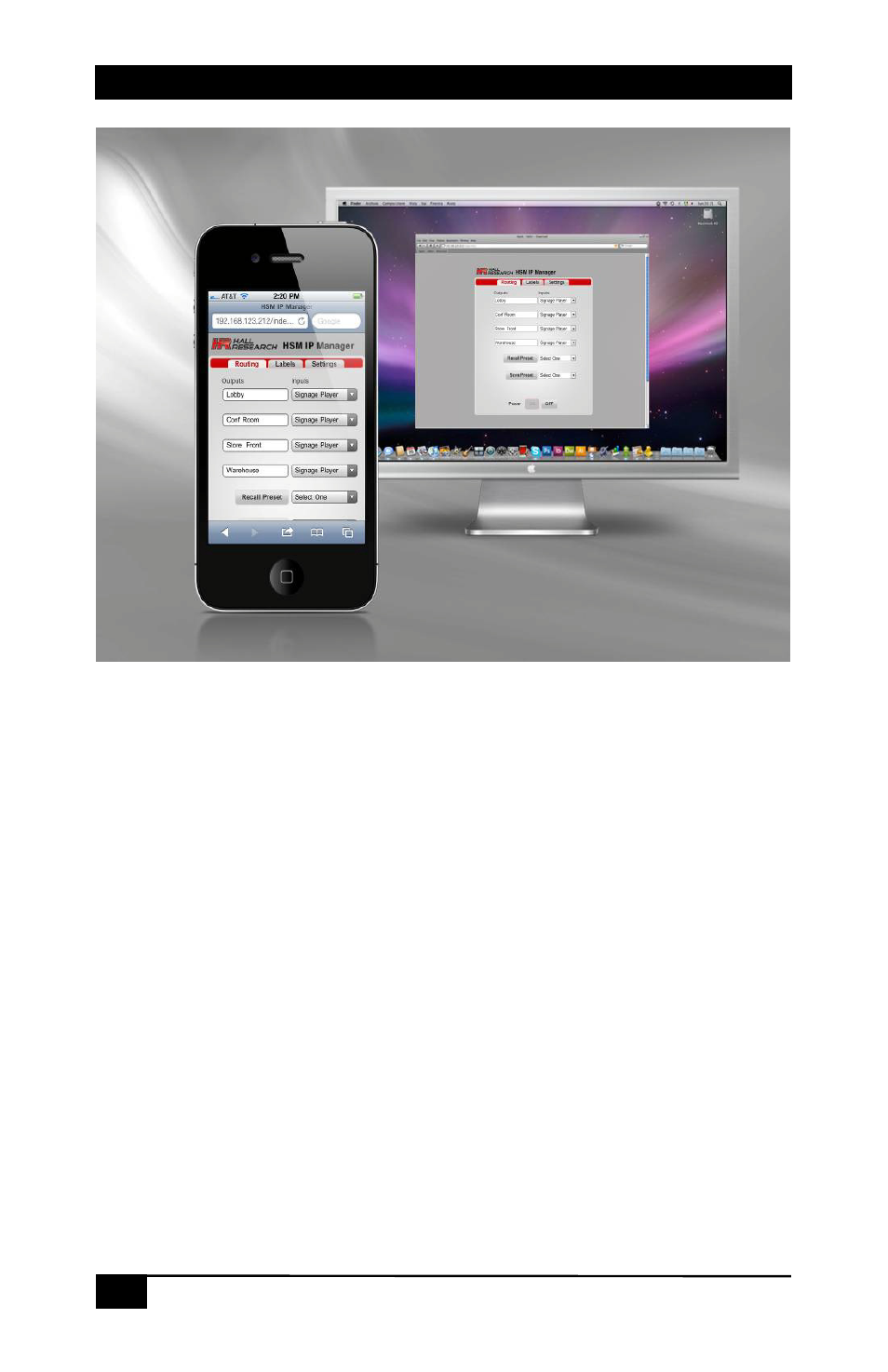

Figure 12 – Control via web Interface
The matrix web interface allows the user to change/monitor the matrix I/O ties, assign
unique names to the inputs, outputs and presets as well as enable/disable password
protected login or change the IP configuration, etc…
The Preset, Input and Output names are saved permanently in matrix until the user
changes them. The matrix will also remember the I/O Presets when not powered.
The web interface is user friendly and easy to access. It consists of three tabs named
Routing, Labels and Settings. Each tab and its features are explained in next sections.
