Initial Startup

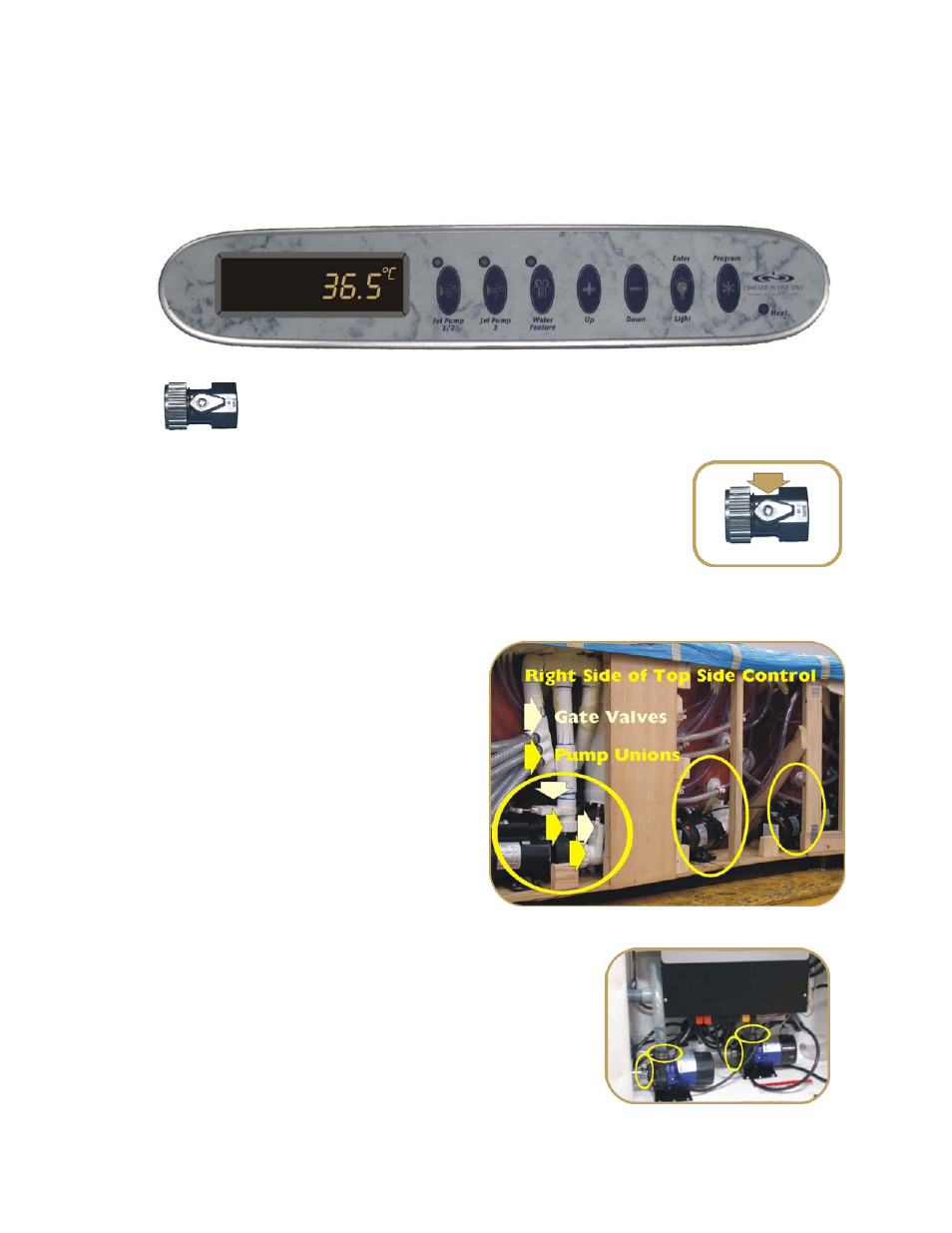

1. Locate the Top Side Control.
2. Locate the hose bib that is included in the owner’s manual packet. The owner’s
manual packet is shipped inside the equipment compartment. Your dealer should
provide you with this packet during installation.
3. Locate the male fitting at the bottom of the lower left corner of the hot
tub – below the skirt on the left corner of the side containing the Top
Side Control.
4. Close the valve on the side of the hose bib and screw it onto the end of
the hose bib. Check to ensure the cap on the hose bib is secure to avoid
leaks when you add water to the spa.
5. Remove the panels below the Top Side Control and the right side to expose the pumps and the
Lower Equipment Compartment.
6. There are two pump unions and two gate
valves per pump. The pump on the left in
the picture shows the typical locations of
the pump unions and gate vavles. Check
to make sure the pump unions are hand
tight to prevent the possibility of leakage.
Next, check the gate valves to make sure
they are fully opened and that the red
safety clips are snapped into place. The
other pumps in the picture are identified
by the additional circles. Be sure to check
the pump unions and gate valves for all
three pumps..
7. After you finish checking the pump unions
and gate valves, remove the shipping bolts from the base of each pump.
8. Next, check the fittings on the two circulation pumps
located at the bottom of the Lower Equipment
Compartment to make sure they do not leak.
