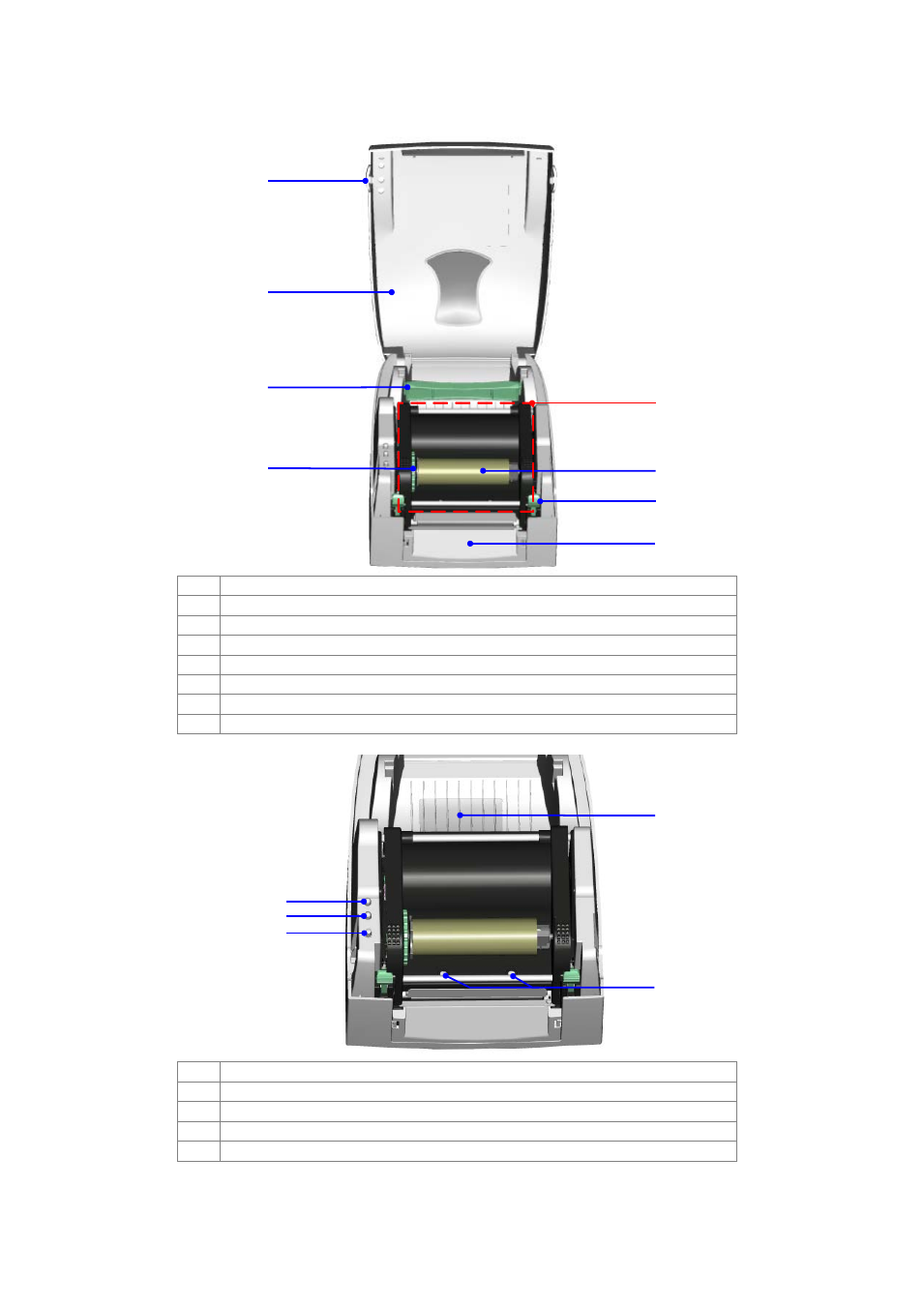

1-4. Getting to know your printer
2
1
3
4
5
6
7
8
1. Release buttons for opening the printer cover
2. Printer cover
3. Label supply hub
4. Ribbon feed mechanism
5. Print mechanism
6. Ribbon rewind hub and empty ribbon core
7. Release catches (left/right)
8. Front cover
2
1
3
4
5
1. LED indicator (READY)
2. LED indicator (STATUS)
3. FEED button
4. CF card slot cover
5. Screws for adjusting the print head pressure (left/right)
