EZ1000 Plus User Manual
11
2-4. Preparing for tag printing

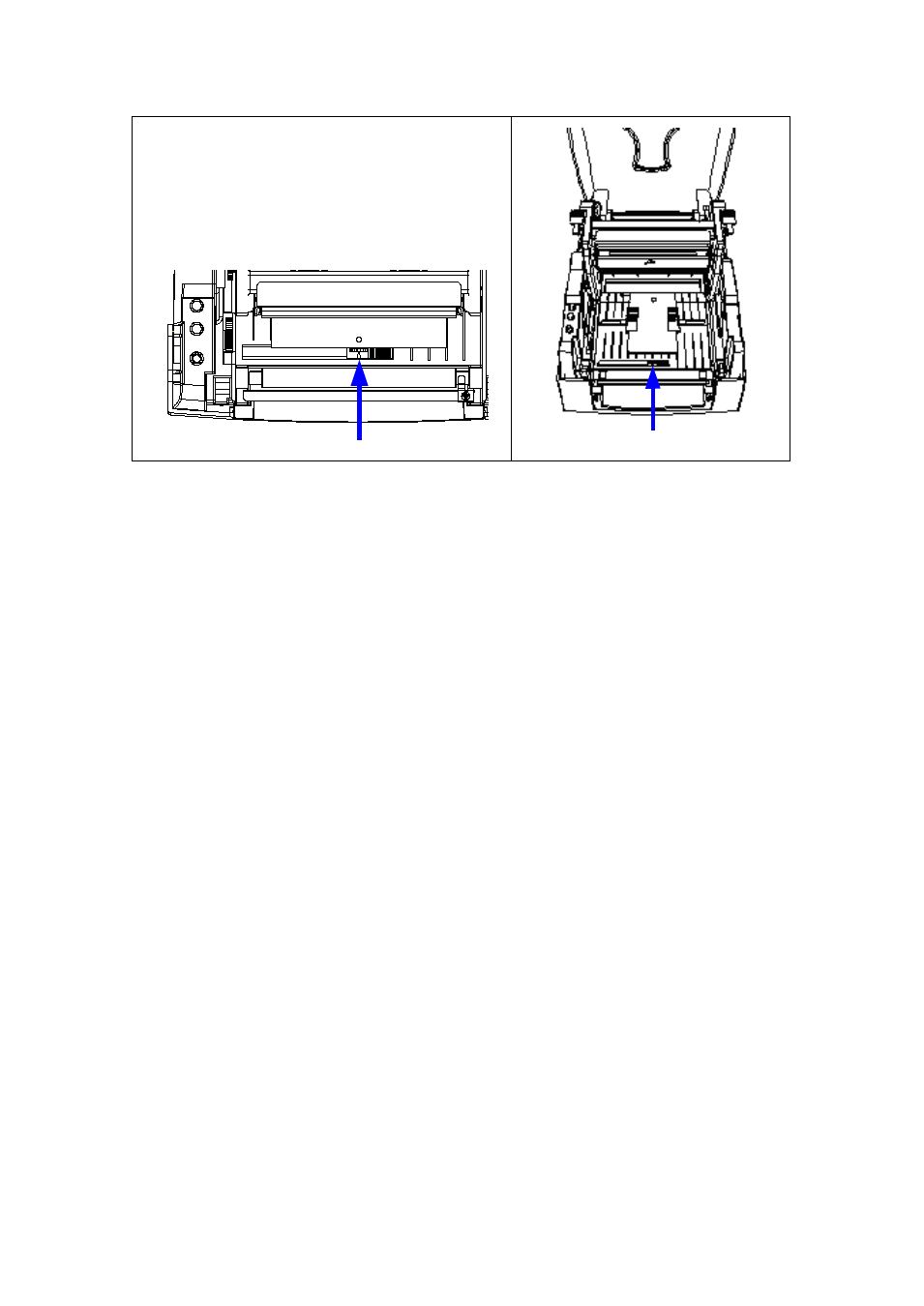

In tag printing, the tag hole indicates the height
of a label. During adjustment, the sensor must
therefore be positioned directly below the tag
hole as shown in the illustration. The tag hole
should be at least 3 mm in diameter to ensure
correct functioning.
Tag hole position
Sensor position
Sensor
