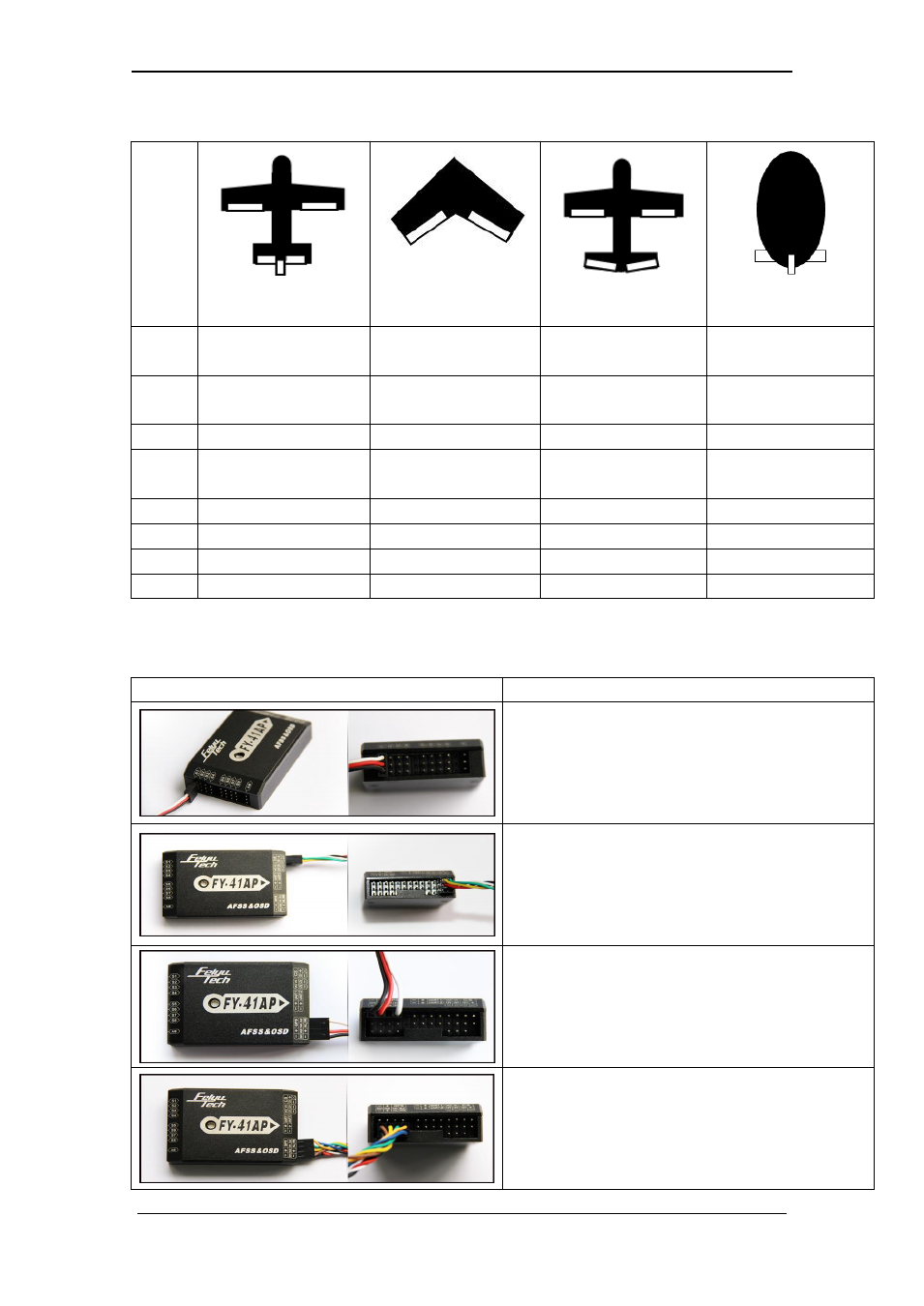

S1~S8 Servo Interface Connection Instructions
No.
traditional flying wing V tail airship
S1 Aileron servo 1 Aileron &Elevator
mix control servo 1
Aileron servo 1 Not use
S2 Elevator servo Aileron &Elevator
mix control servo 2
Elevator &Rudder
mix control servo 1
Elevator servo
S3 Throttle servo/ESC Throttle servo/ESC Throttle servo/ESC Throttle servo/ESC
S4 Rudder servo Not use Elevator &Rudder
mix control servo 1
Rudder Servo
S5 Aileron servo 2 Not use Aileron servo 2 Not use
S6 Not use Not use Not use Not use
S7 Not use Not use Not use Not use
S8 Not use Not use Not use Not use
Connection Introduction
Connection picture introduction
S1～S8 servo wiring connection
Pay attention to the signal wiring sequence
Power manager wiring
GPS module wiring
2×4P RC receiver wiring
For FY-41AP
Black&white——AIL orange——ELE
green——THR yellow——RUD
brown——CH5 blue——CH6
常规布局
