OSD interface instruction
The integrated OSD module supports PAL or NTSC form video input.

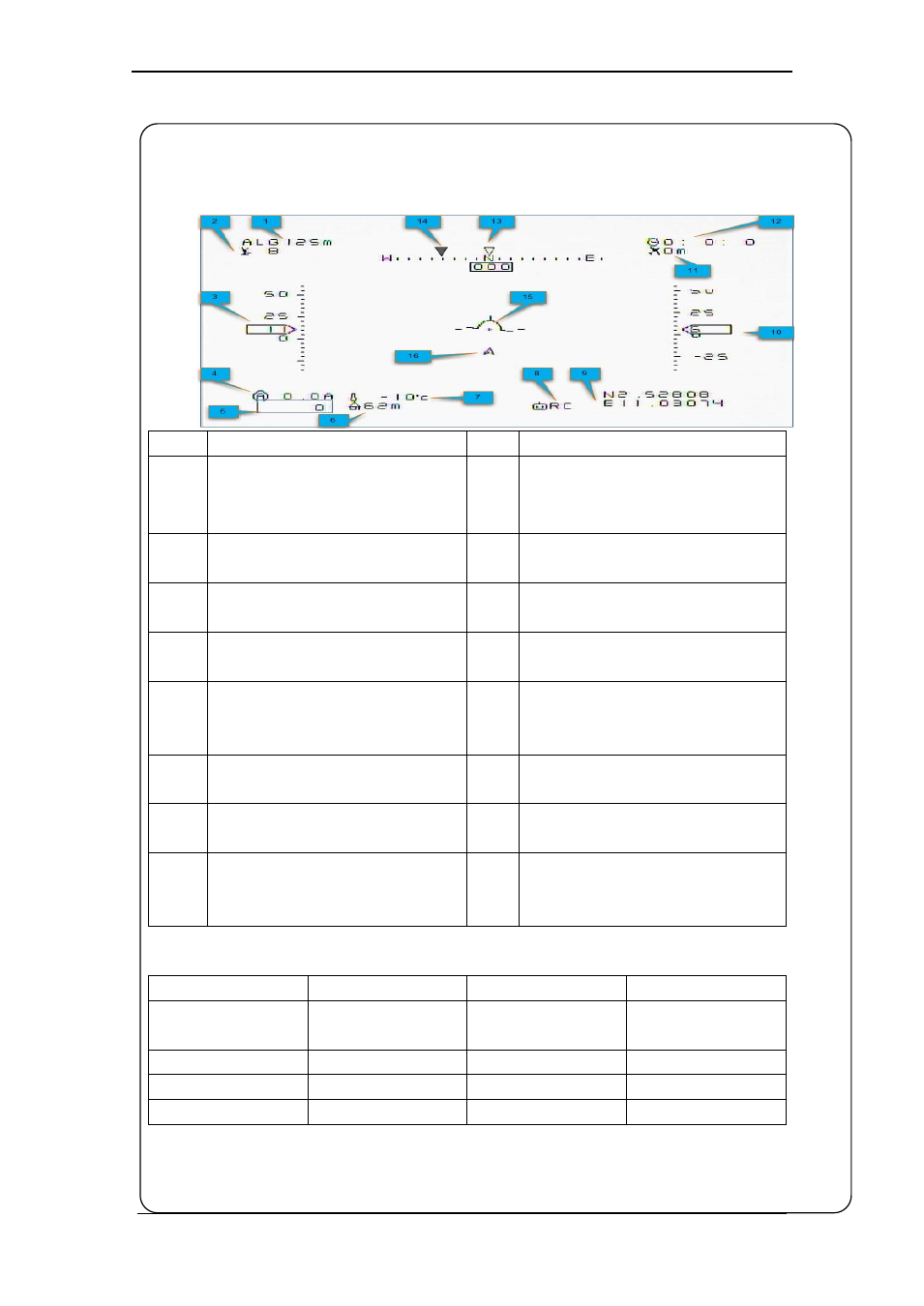

OSD display interface:
No. Instruction No. Instruction
1 GPS altitude(Unit：m) 9 Current latitude & longitude of the
plane
(Format: dddmm.mmm)
2 The quantity of satellite used for
positioning
10
Relative altitude (Unit
： m)
3
Airspeed/GPS speed (Unit
： km/h)
11
Flight total mileage (Unit
： km)
4 The battery voltage of the video
transmitter (Unit: V)
12 Total flight time (Format:h:m:s)
5
Battery power consumed (Unit
：
mA/h)
13
Current course of flight (Unit
： deg)
6
Distance to Home Point (Unit
： m)
14 The angle of turning to the Home
Point (Unit： deg)
7
Power battery current (Unit
： A)
15 Attitude table
8 Flight mode 16 Relative position of Home Point (Icon
in the middle position when the
aircraft is around Home Point.)
Flight mode instruction
name introduction name introduction
RC Deactivated mode ADH Fixed altitude &
Heading lock Mode
3D 3DAerobatic Flight ACM Circle mode
ABM Stable mode NAV Path mode
RTL Return to home
