Page 16

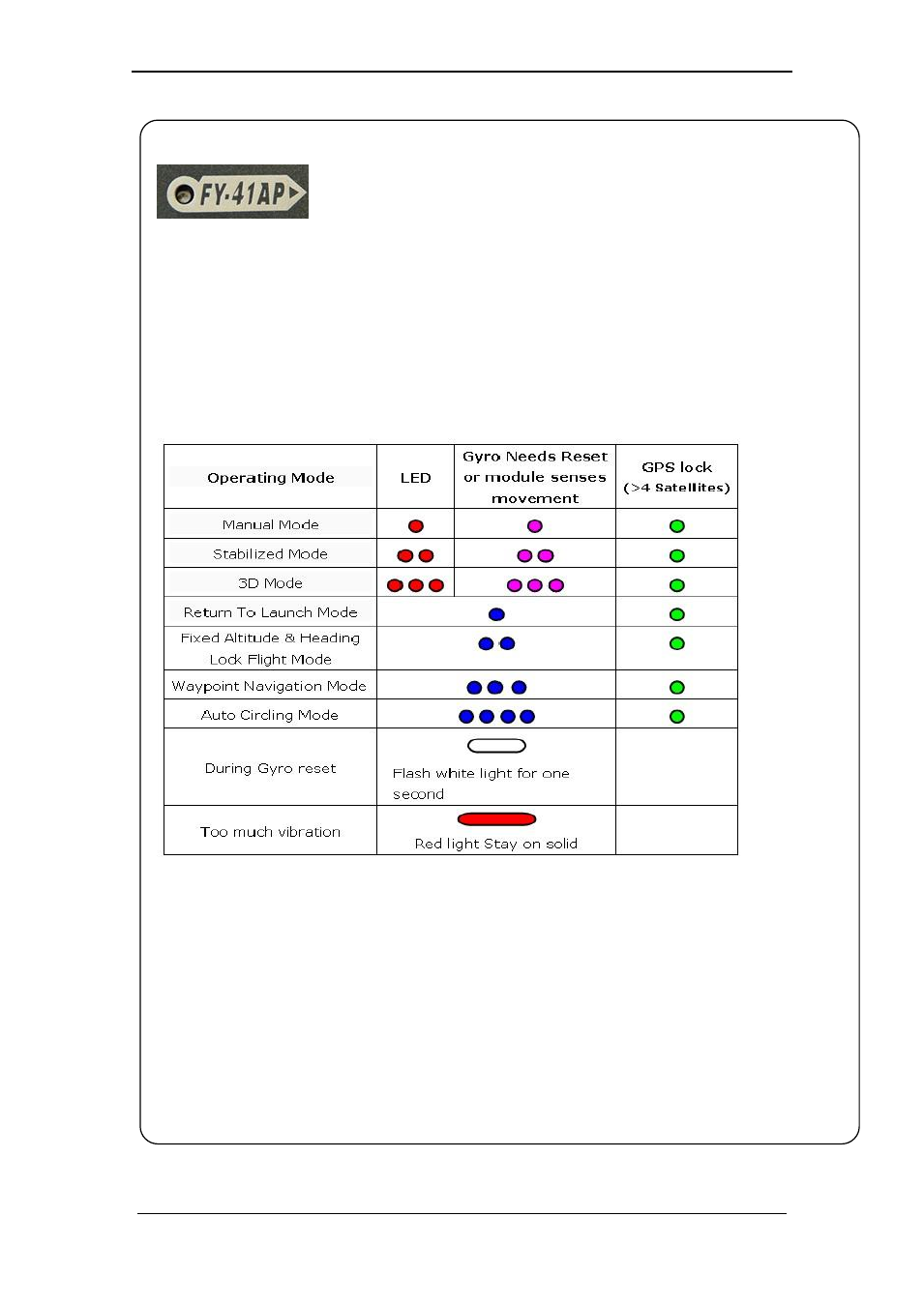

FY-41AP indicator light instruction
FY-41AP with three colors LED which can send out red, blue, green light. Also
yellow, white, purple and other colors light t hrough the combination.
Operators can know the FY-41AP‘s operating mode by judging the different colors
which the LED sends out and the flash frequency. green light flash means GPS location
fixed, red and blue light indicate FY-41AP working mode. Under manual mode,
stabilization mode or 3D mode, keep FY-41AP in the static state. If it sends out purple light
it means FY-41AP needs Gyro Reset.
e.g.: Red Manual Mode, GPS not lock
Red—Red—Green Stabilized Mode, GPS lock
Purple—Purple—Green Stabilized Mode, GPS lock,
If it stay static means need Gyro Reset.
Blue—Blue—Blue——Green Waypoint Navigation Mode, GPS lock
