EXFO FTB-5700 Single Ended Dispersion Analyzer for FTB-200 v2 User Manual
Page 50
Operating the Single-Ended Dispersion Analyzer
44
FTB-5700
Performing a Test

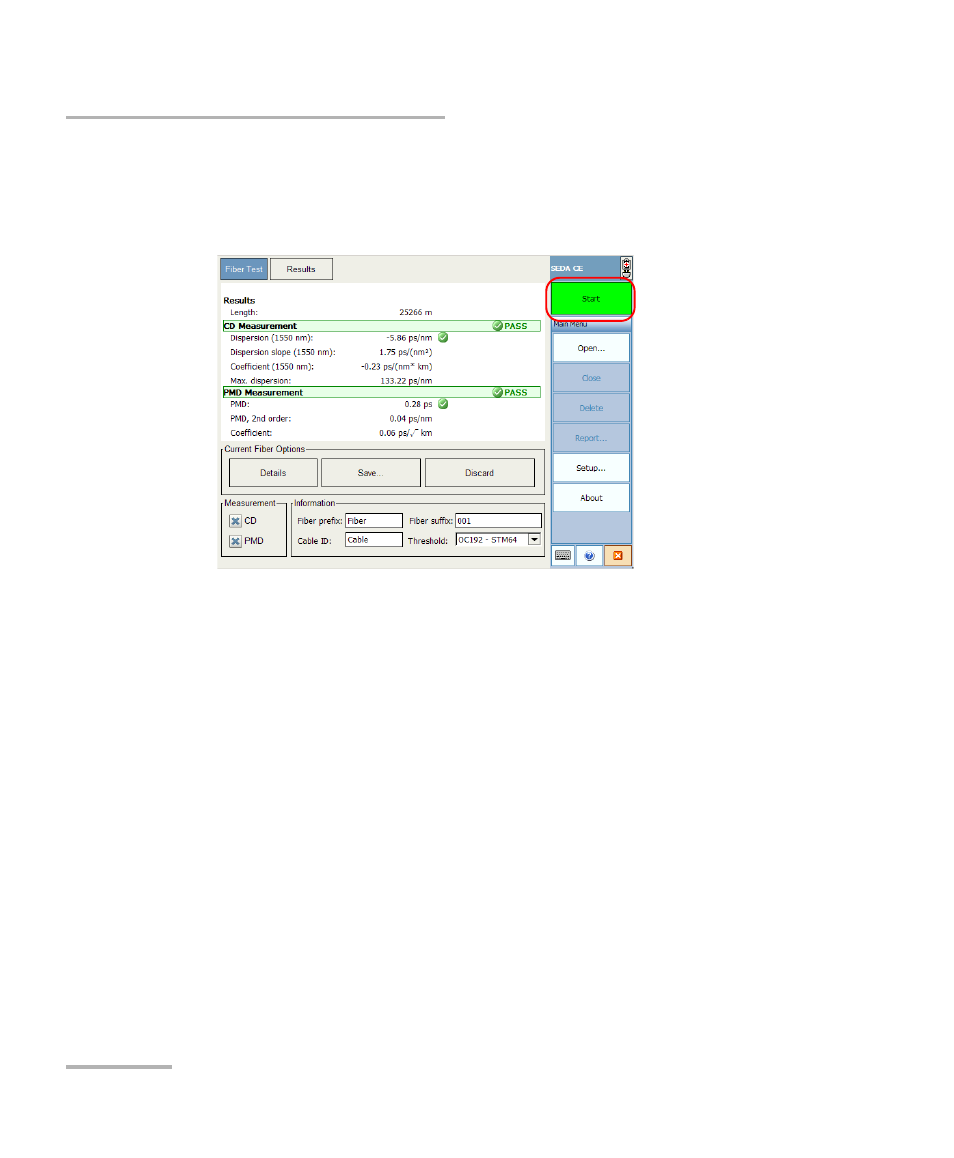

4. From the button bar, click Start to start a measurement sequence.
When the measurement is complete, the results are displayed in the
grid.
5. If you are satisfied with the results, click Save. The entry will be sent to
the Results tab.
If you are not satisfied with the results, click Discard to clear the test
window and perform a new test.
To stop the acquisition before it is complete:
Click the Stop button. The button changes back to a green Start button.
