Mportant – EXFO FTB-5700 Single Ended Dispersion Analyzer for FTB-200 v2 User Manual
Page 49
Operating the Single-Ended Dispersion Analyzer
Single-Ended Dispersion Analyzer
43
Performing a Test
To start an acquisition:
1. Set the acquisition parameters as needed. See the corresponding user
guide sections for more details.

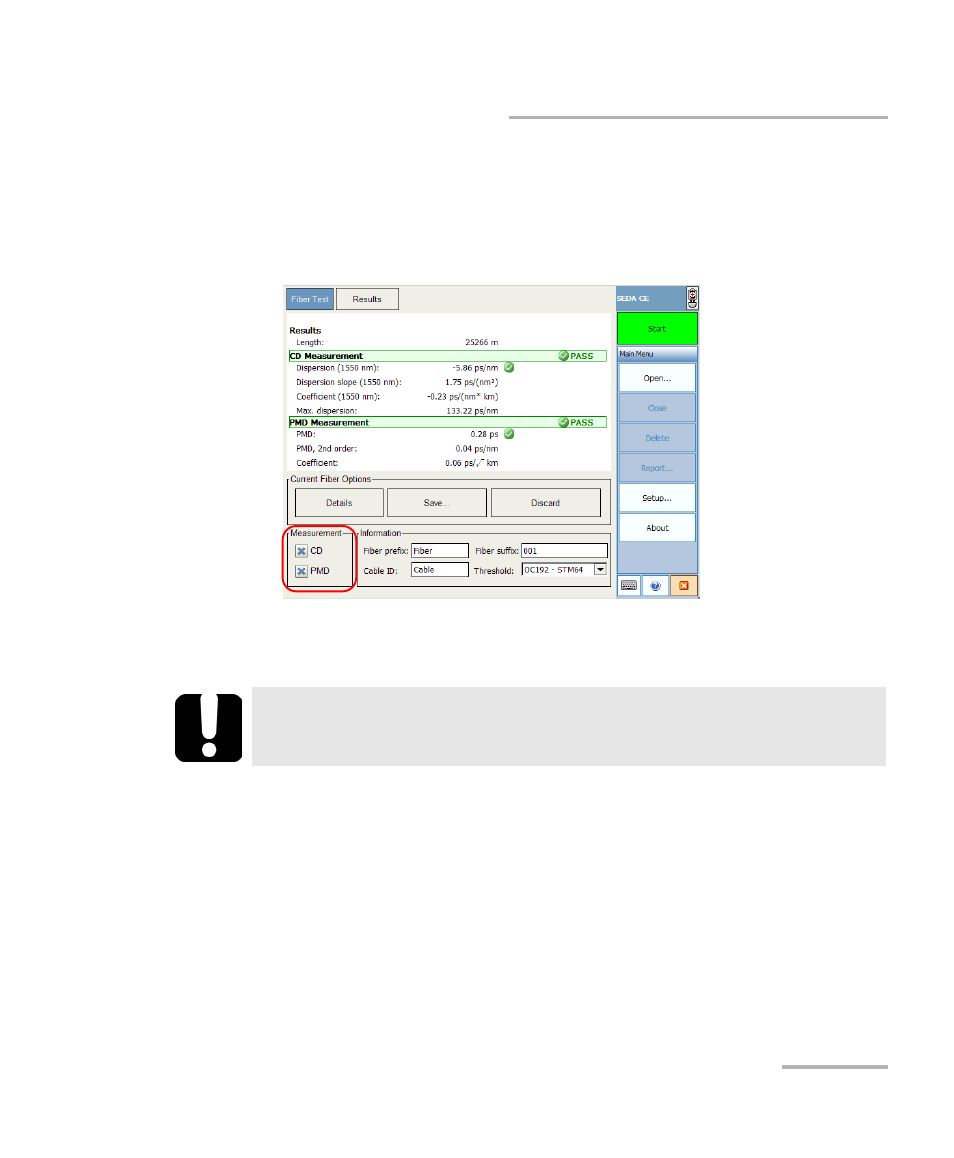

2. Select whether the acquisition will include PMD, CD, or both.
3. Verify that the fiber (FUT) is properly connected and that the setup is
appropriate.
I
MPORTANT
The FUT must be terminated by a UPC connector.
