14 - System Map: Right & Left Views
Concise User’s Guide
English
System Map: Right & Left Views
Figure 6

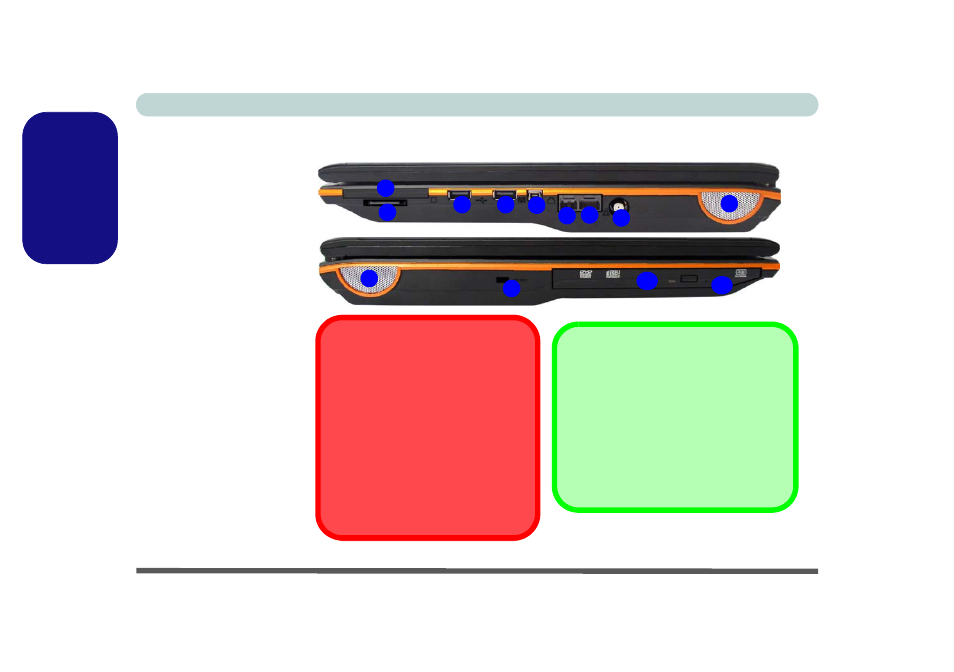

Right & Left Views
1. ExpressCard/54(34) Slot
2. 7-in-1 Card Reader
3. 2 * USB 2.0 Ports
4. Mini-IEEE 1394 Port
5. RJ-11 Phone Jack
6. RJ-45 LAN Jack
7. Cable (CATV) Antenna
Jack (Enabled With TV
Tuner Only)
8. Speaker
9. Security Lock Slot
10. Optical Device Drive Bay
11. Emergency Eject Hole
1
2
3 4
5 6 7
3 8
CD/DVD Emergency Eject
If you need to manually eject a CD/
DVD (e.g. due to an unexpected power
interruption) you may push the end of a
straightened paper clip into the emer-
gency eject hole. Do not use a sharp-
ened pencil or any object that may
break and become lodged in the hole.
Don’t try to remove a CD/DVD while the
system is accessing it. This may cause
the system to “crash”.
Mini-IEEE 1394 Port
The Mini-IEEE 1394 port only supports
SELF POWERED IEEE 1394 devices.
ExpressCard Slot
The ExpressCard slot accepts either Ex-
pressCard/34 or ExpressCard/54 for-
mats.
