System Map: Front & Left Views 1 - 13
Quick Start Guide
1
System Map: Front & Left Views

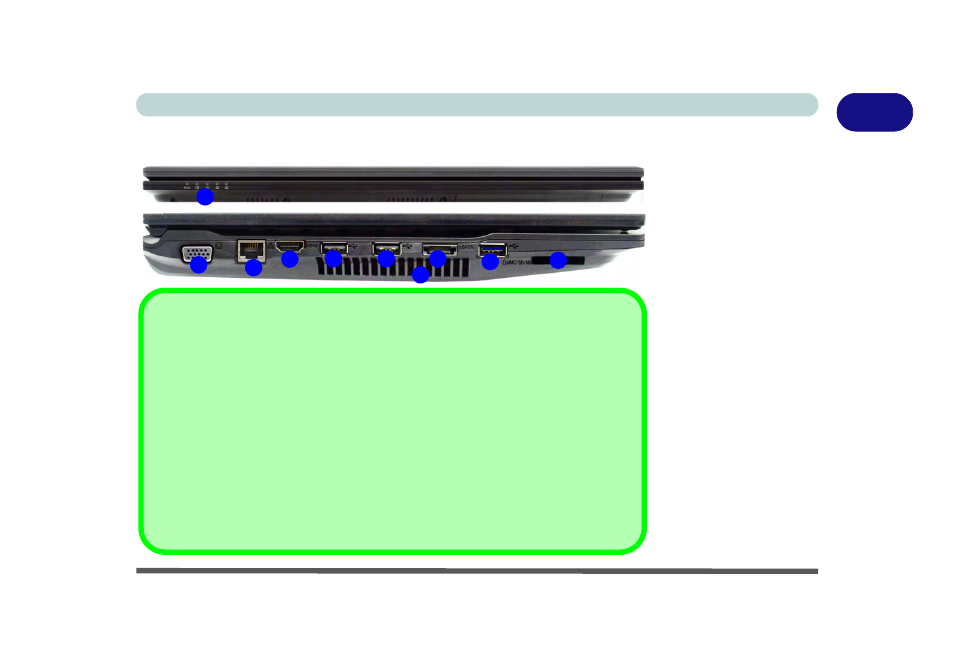

Figure 1 - 5
Front & Left Views
1.
LED Indicators (see
Table 1 - 2, on
page 1 - 9
)
2.
External Monitor
Port
3.
RJ-45 LAN Jack
4.
HDMI-Out Port
5.
2 * USB 2.0 Ports
6.
e-SATA Port
7.
Vent/Fan Intake
8.
1 * USB 3.0 Port or
USB 2.0 Port
(Factory Option)
9.
3-in-1 Card Reader
2
7
4
1
6
3
3-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC / SDXC Compatible
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port OR USB 2.0 Port
Some models in this series have a single USB 3.0 port (Factory Option) on the left side
of the computer, other models will have a USB 2.0 port. The USB 3.0 port is denoted by
its blue color; USB 2.0 ports are colored black.
Note that the USB 3.0 port requires a driver installation (see
) and
does not support wake on USB.
9
5
5
8
