System Map: Bottom Views (Models D & E)
3
2 1
4
5

Battery Information
Always completely discharge, then fully charge, a new
battery before using it. Completely discharge and charge
the battery at least once every 30 days or after about 20
partial discharges (see the expanded User’s Manual on
the Device Drivers & Utilities + User’s Manual disc).
HDMI
Note that the HDMI Port supports video and audio signals
to attached external displays (Note THX Tru Studio Pro
will be disabled when you are connecting to an external
display through an HDMI connection - see
page 25 ).
1
1
1

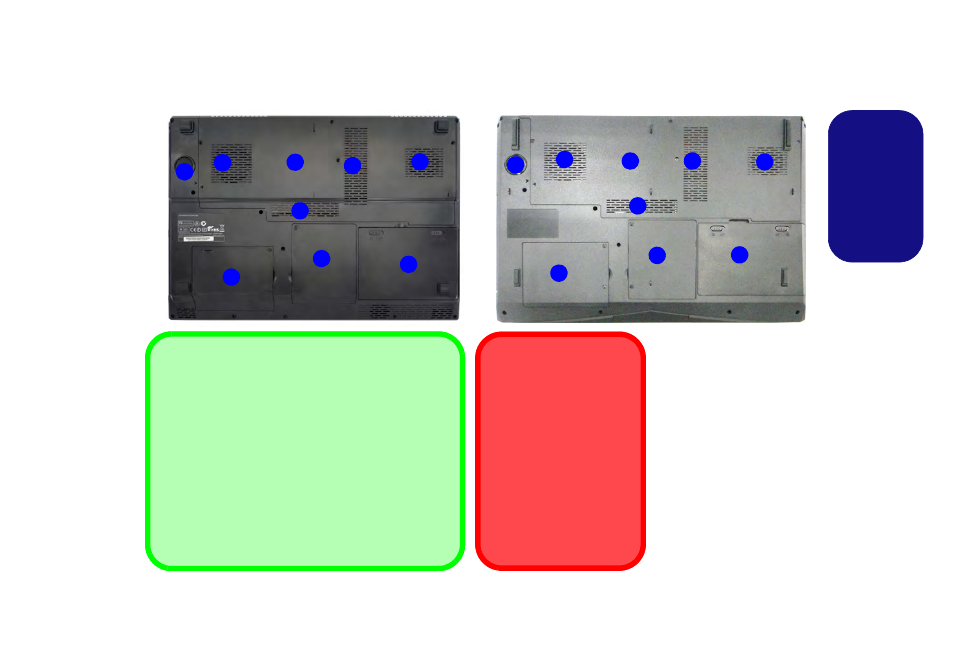

Figure 13
Bottom Views (Models
D & E)
1. Vent
2. Component Bay Cover
3. Sub Woofer
4. HDD Bay
5. Battery
6. Secondary HDD Bay

CPU
The CPU is not a user ser-
viceable part. Accessing
the CPU in any way may vi-
olate your warranty.
Overheating
To prevent your computer
from overheating make
sure nothing blocks any
vent while the computer is
in use.
3
2 1
4 5
1
1 1
6
Model D Model E
6
